Optima EX, 2.4 6
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System/Fuel System - 2.4L (A/T)
›
MFI Control System
›
Ignition Failure Sensor (Ifs)
›
Harness Inspection Procedures (Ifs)
Harness Inspection Procedures (Ifs)

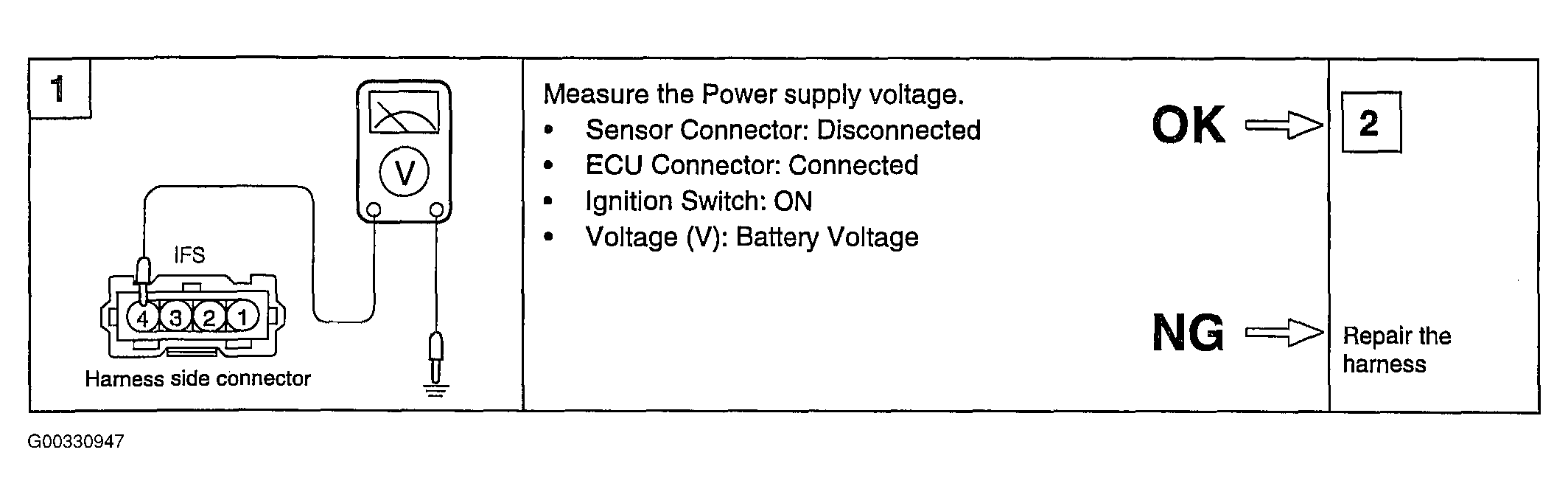

Fig 1: Identifying Ignition Failure Sensor (IFS) Harness Inspection Procedures (1 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

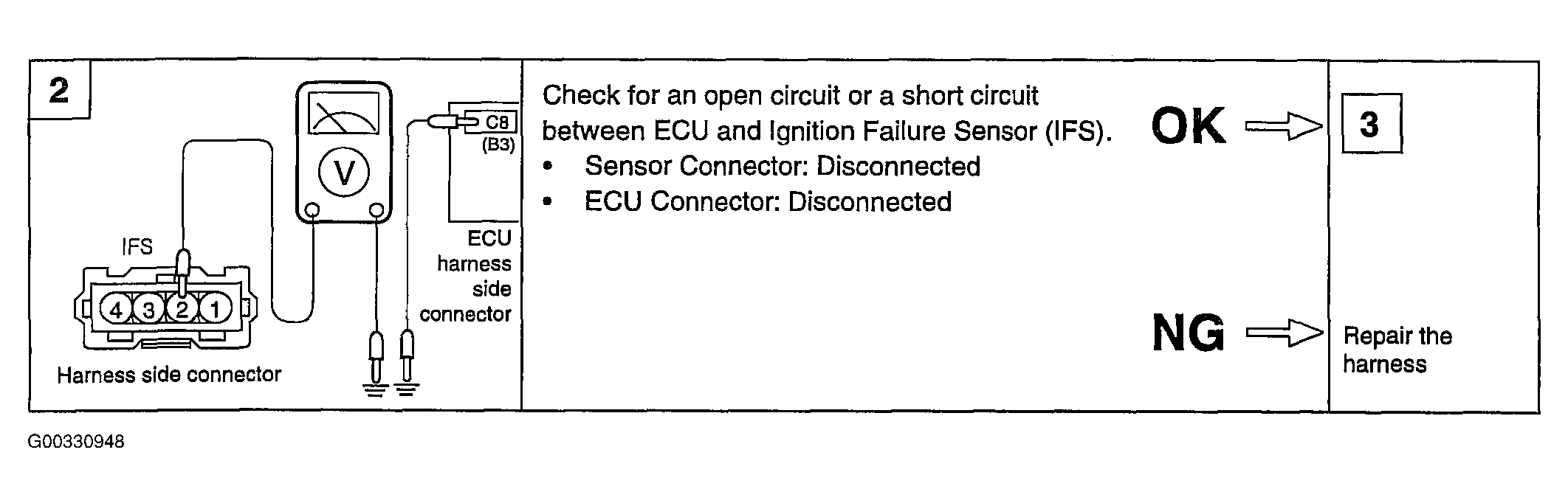

Fig 2: Identifying Ignition Failure Sensor (IFS) Harness Inspection Procedures (2 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

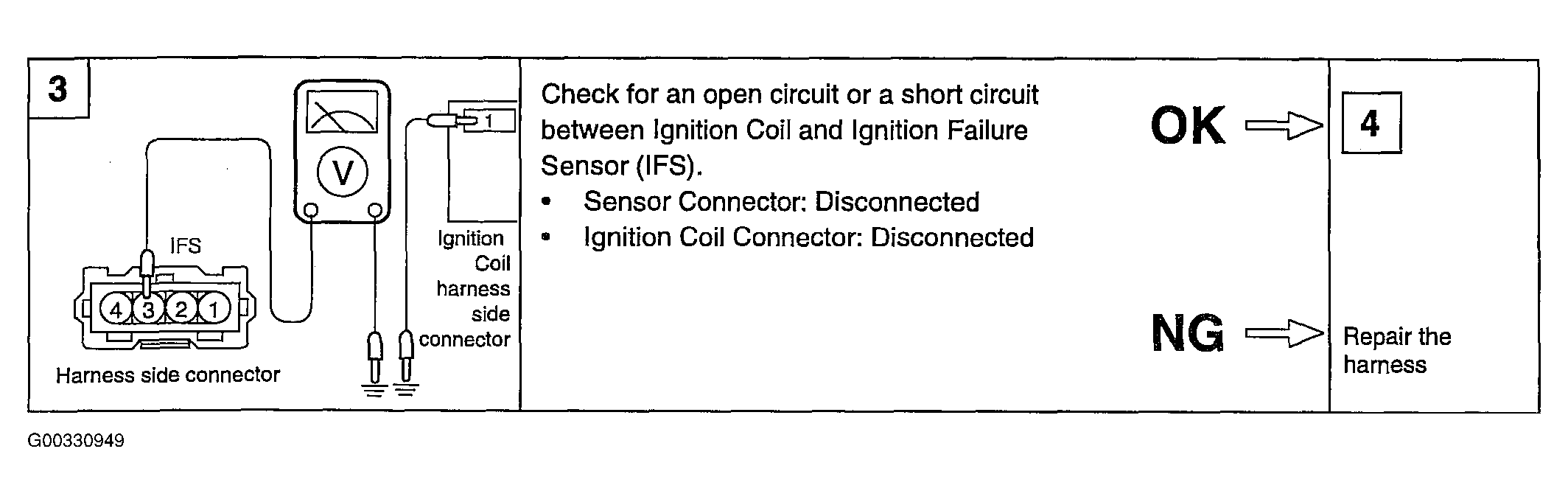

Fig 3: Identifying Ignition Failure Sensor (IFS) Harness Inspection Procedures (3 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

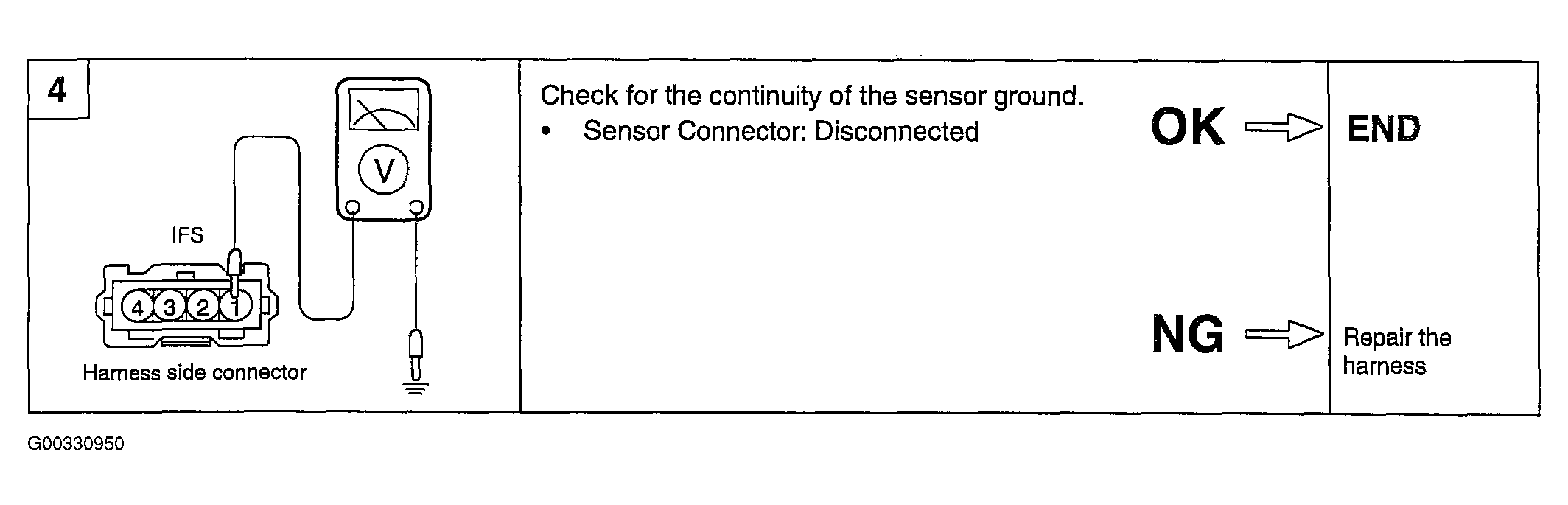

Fig 4: Identifying Ignition Failure Sensor (IFS) Harness Inspection Procedures (4 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.
