Optima EX, 2.4 6
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System/Fuel System - 2.4L (A/T)
›
MFI Control System
›
Throttle Position Sensor (TPS)
›
Harness Inspection Procedures (TPS)
Harness Inspection Procedures (TPS)

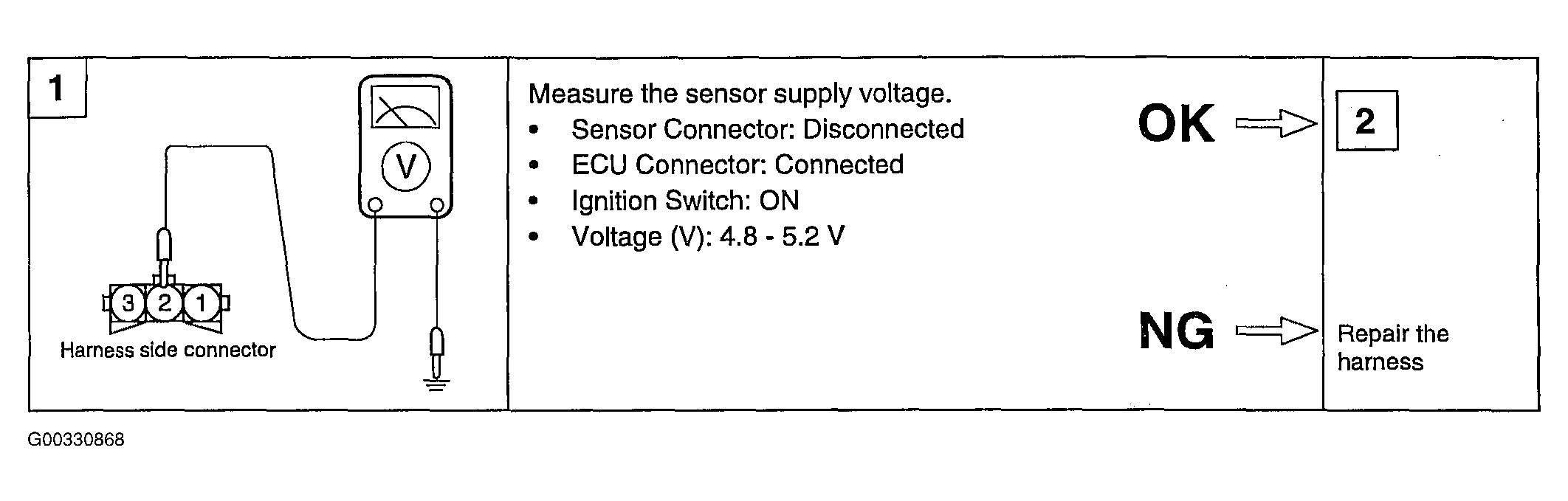

Fig 1: Identifying Throttle Position Sensor (TPS) Harness Inspection Procedures (1 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

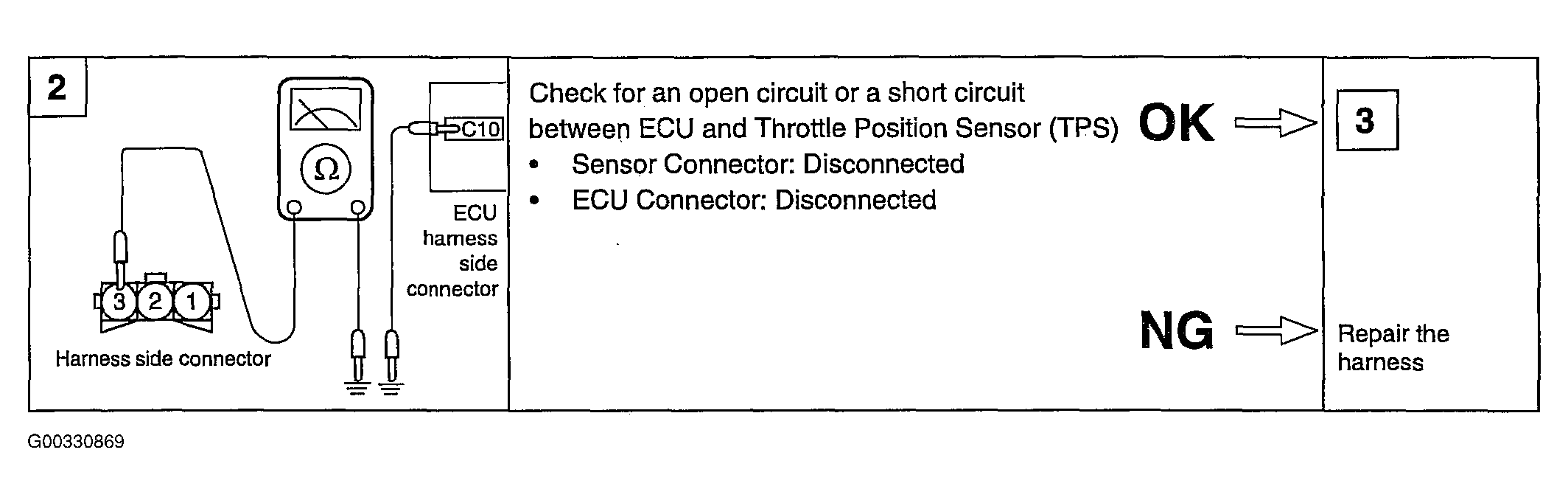

Fig 2: Identifying Throttle Position Sensor (TPS) Harness Inspection Procedures (2 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

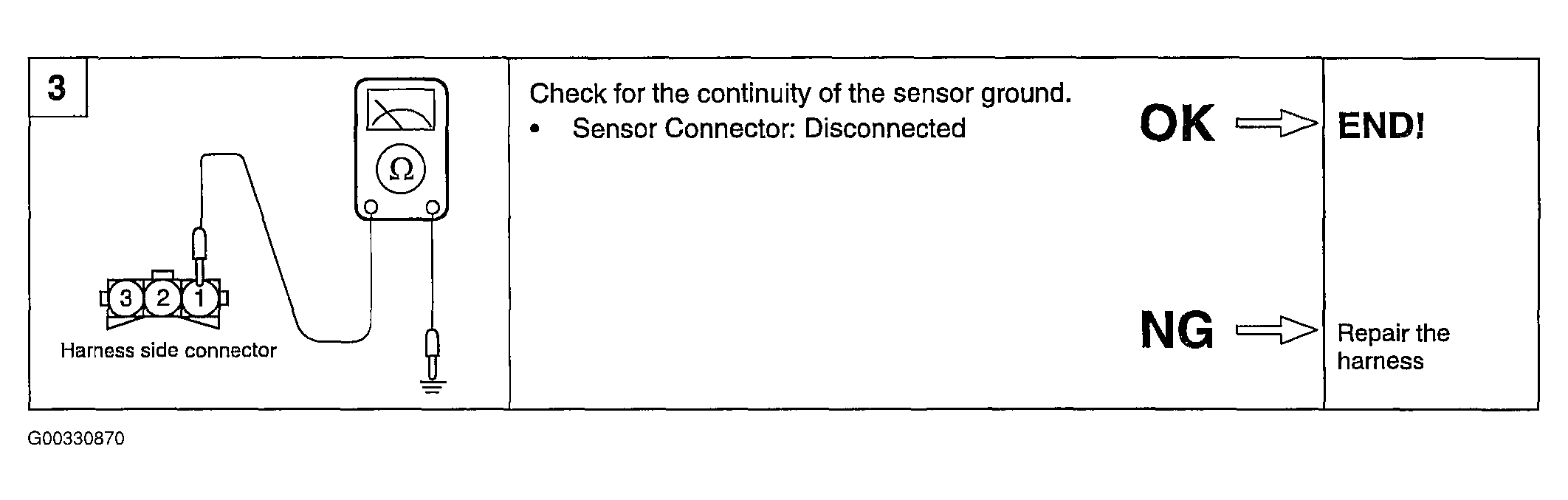

Fig 3: Identifying Throttle Position Sensor (TPS) Harness Inspection Procedures (3 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
