Engine Control System/Fuel System - 2.4L (A/T)
›
MFI Control System
›
Water Temperature Sensor (WTS)
›
Circuit Diagram And Output Feature (WTS)
Circuit Diagram And Output Feature (WTS)

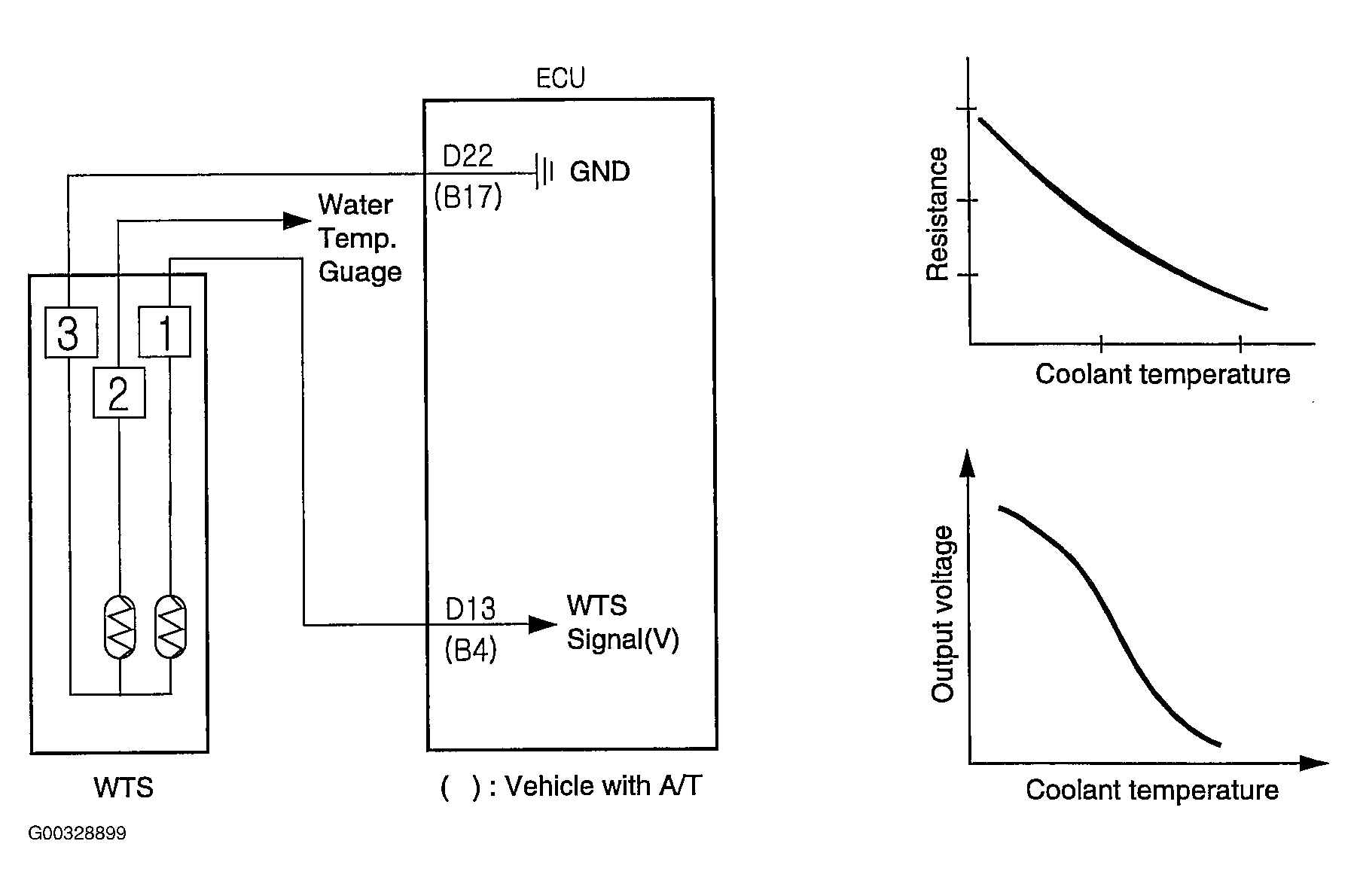

Fig 1: Identifying Circuit & Output Feature Diagram (WTS)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
