Engine Control System/Fuel System - 2.4L (A/T)
›
MFI Control System
›
Water Temperature Sensor (WTS)
›
Harness Inspection Procedures (WTS)
Harness Inspection Procedures (WTS)

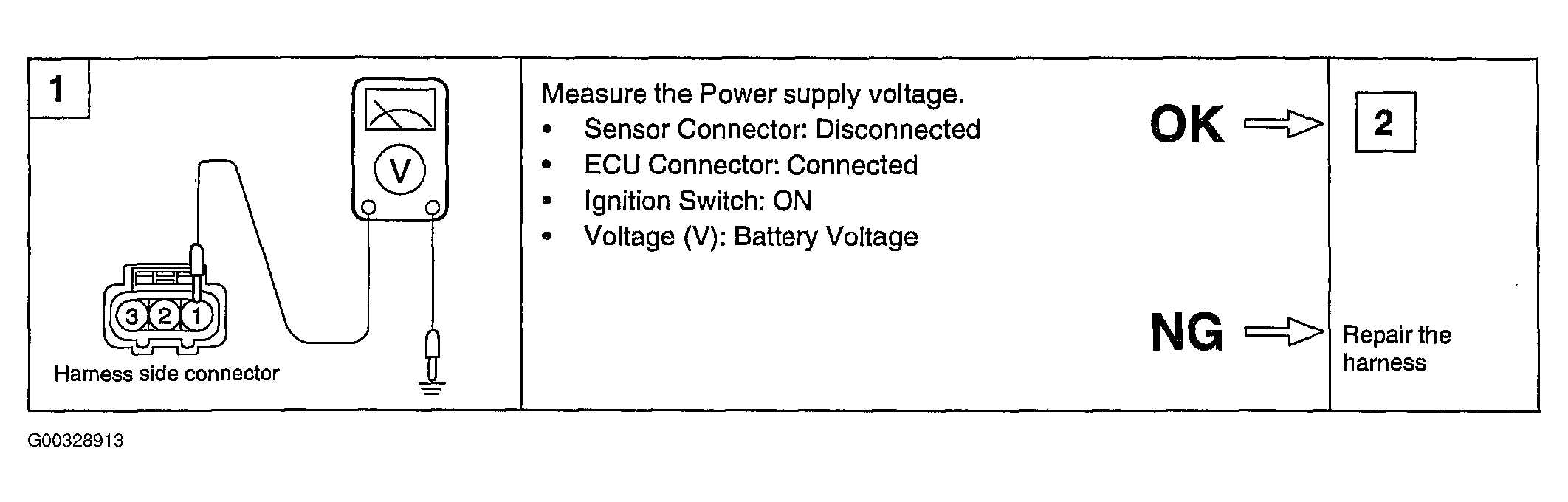

Fig 1: Identifying Water Temperature Sensor (WTS) Harness Inspection Procedures (1 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

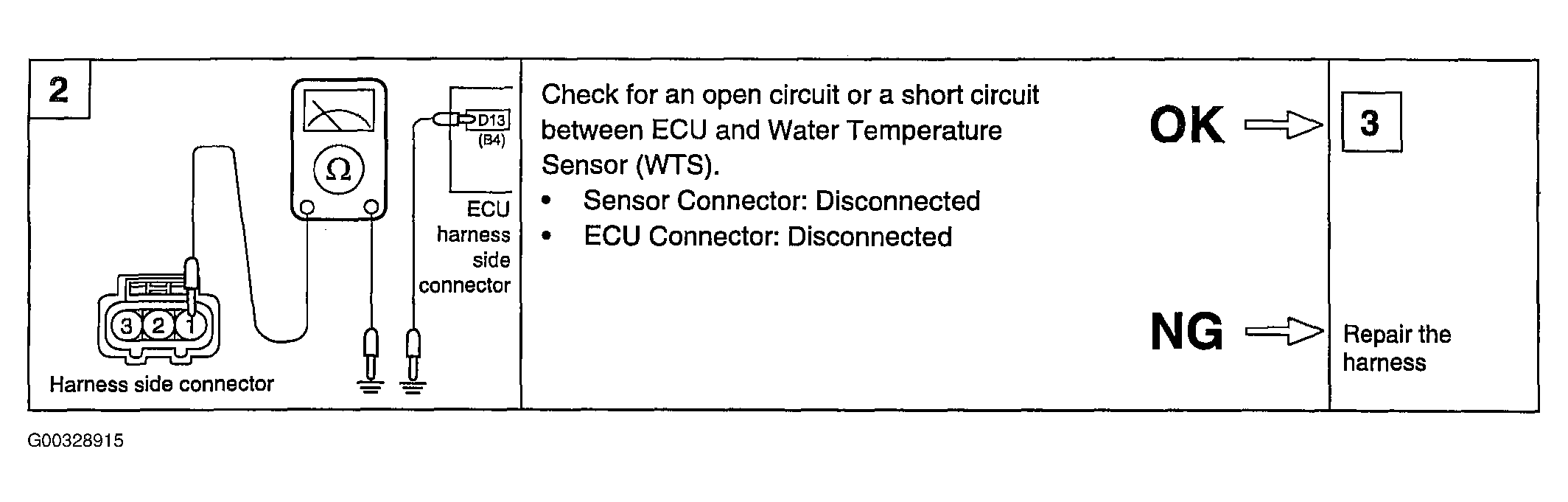

Fig 2: Identifying Water Temperature Sensor (WTS) Harness Inspection Procedures (2 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

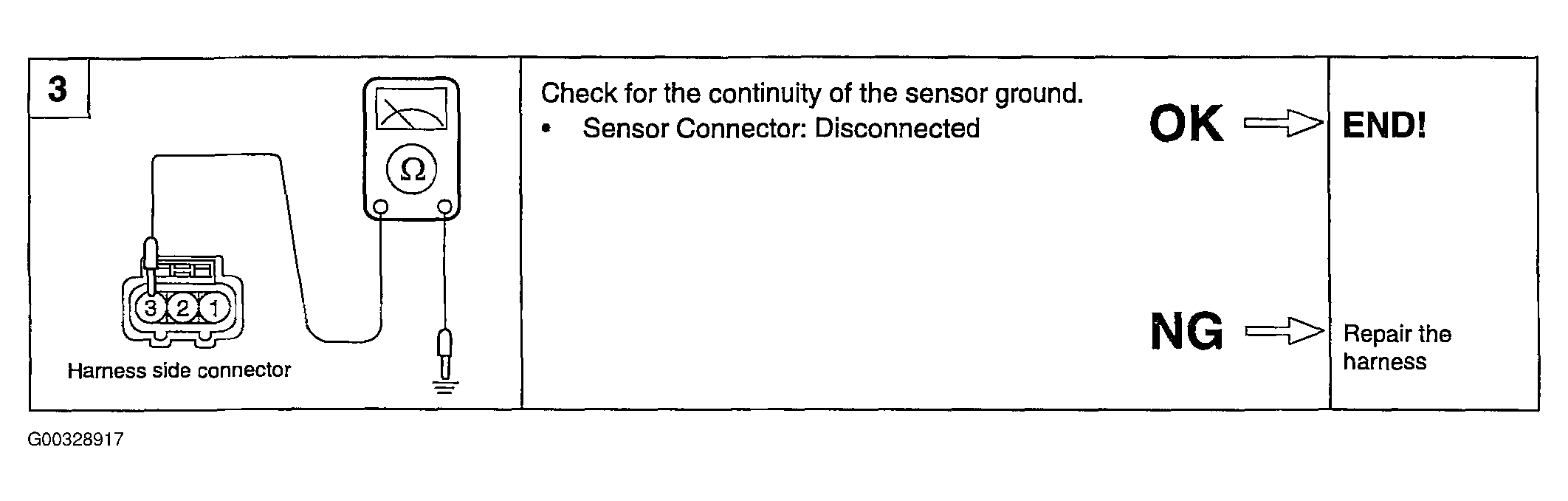

Fig 3: Identifying Water Temperature Sensor (WTS) Harness Inspection Procedures (3 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.
