Engine Control System/Fuel System - 2.4L (A/T)
›
MFI Control System
›
Water Temperature Sensor (WTS)
›
Inspection
›
Using Volt-Meter
Using Volt-Meter

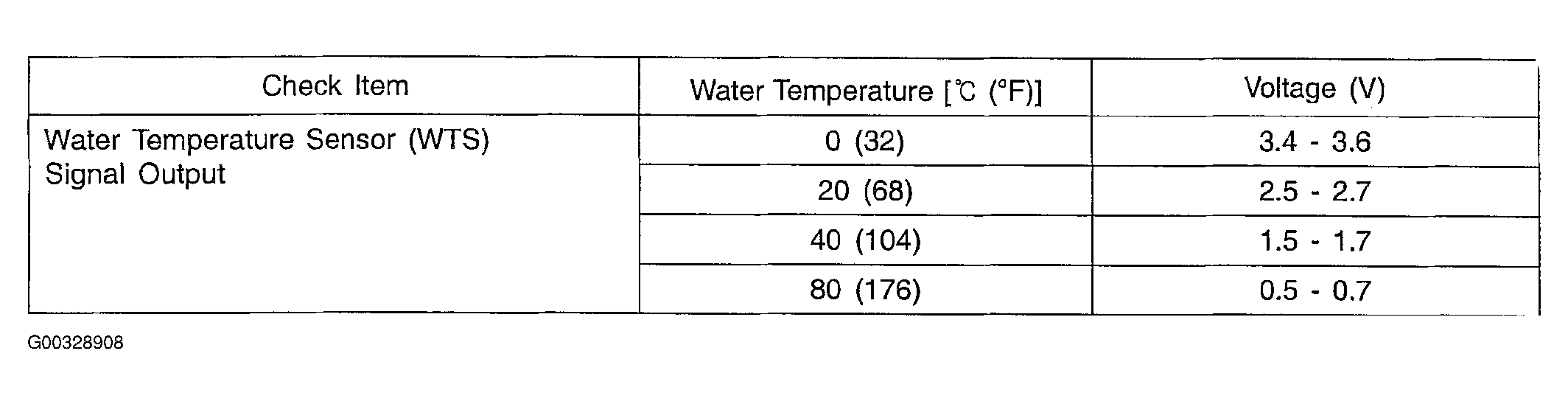

Fig 1: Checking Water Temperature Sensor (WTS) Signal Output (Using Volt-Meter)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
