Kia
›
2005
›
Optima EX, 2.4 6
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Emission Control System
›
General
›
Vacuum Hose Diagram(S)
Vacuum Hose Diagram(S)

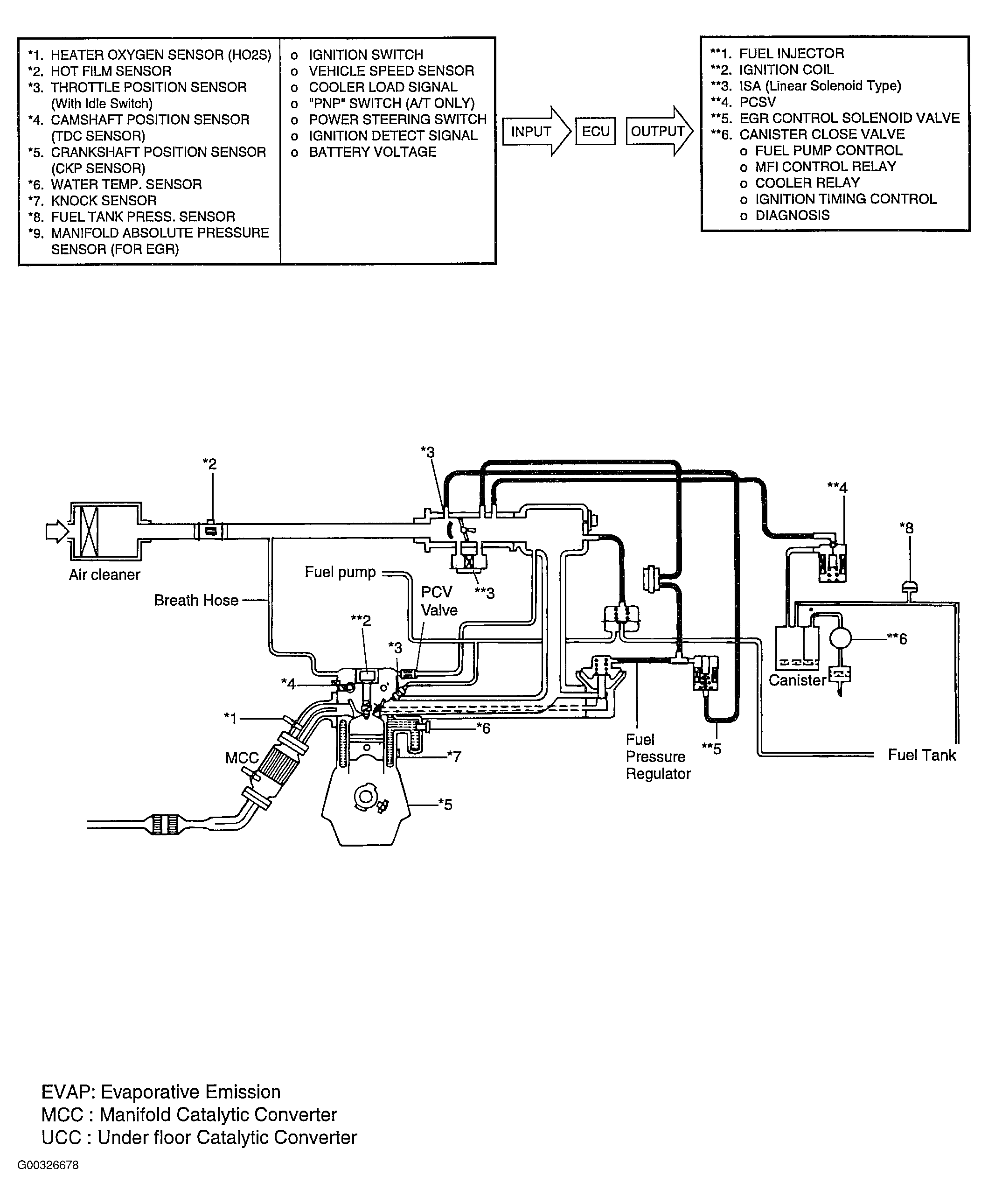

Fig 1: Identifying Vacuum Diagram (2.4L 4-Cylinder)
Courtesy of KIA MOTORS AMERICA, INC.

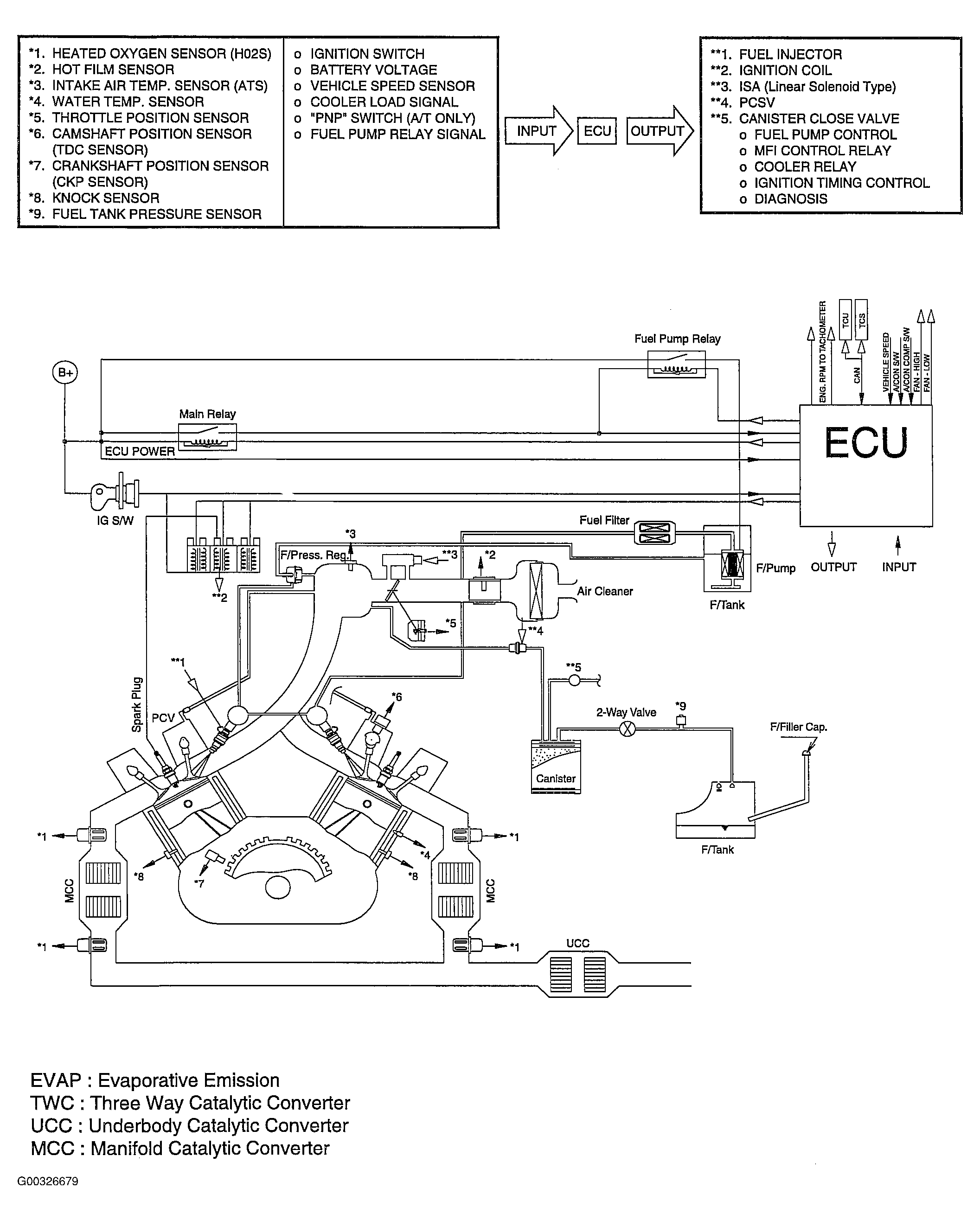

Fig 2: Identifying Vacuum Diagram (2.7L V6)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
