Crankshaft Position (CKP) Sensor
›
Inspection
›
Using Hi-Scan (Pro)
Using Hi-Scan (Pro)

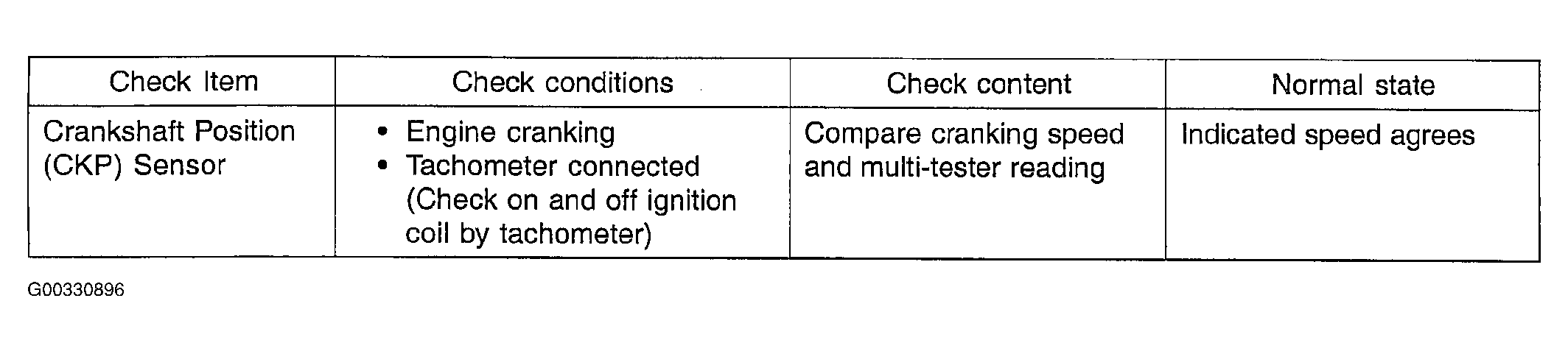

Fig 1: Checking Crankshaft Position (CKP) Sensor (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

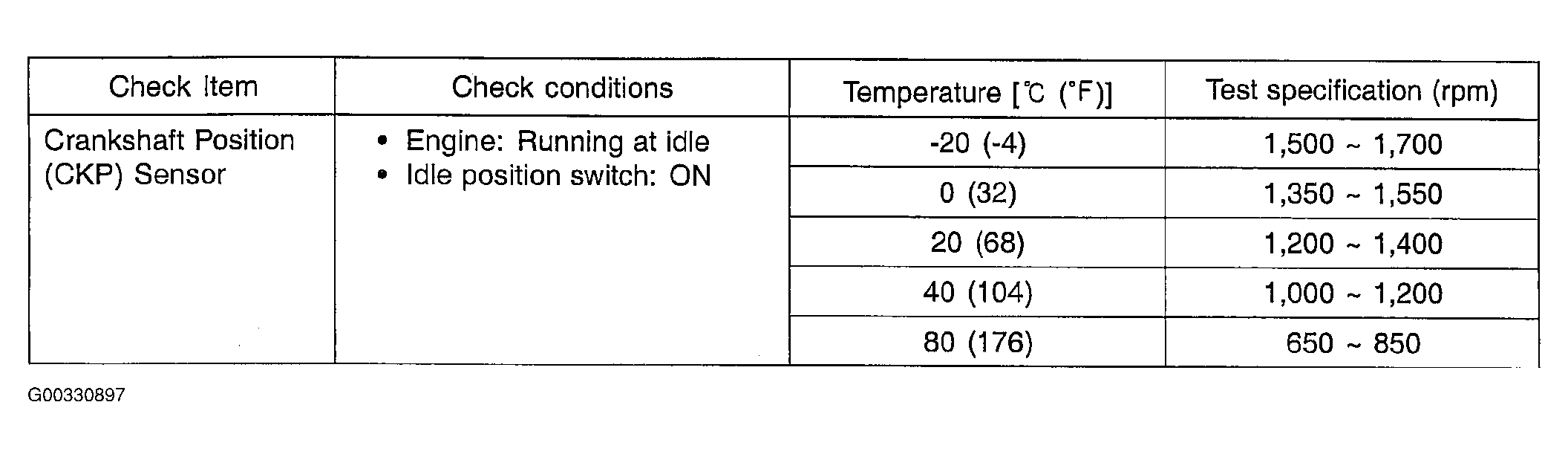

Fig 2: Checking Crankshaft Position (CKP) Sensor (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
