2.7L V6 Engine: General: Troubleshooting

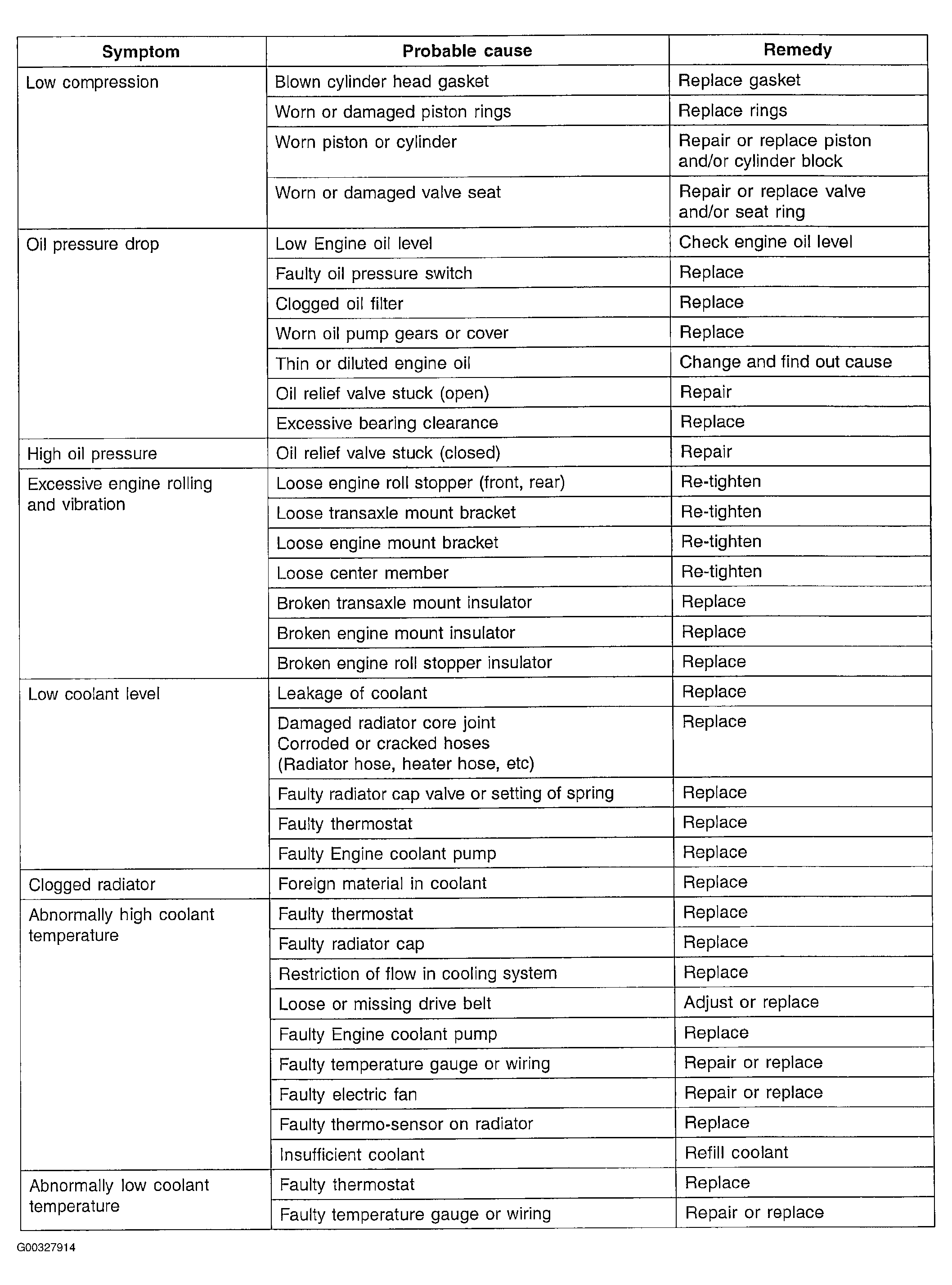

Fig 1: Troubleshooting Chart (1 Of 3)

Courtesy of KIA MOTORS AMERICA, INC.

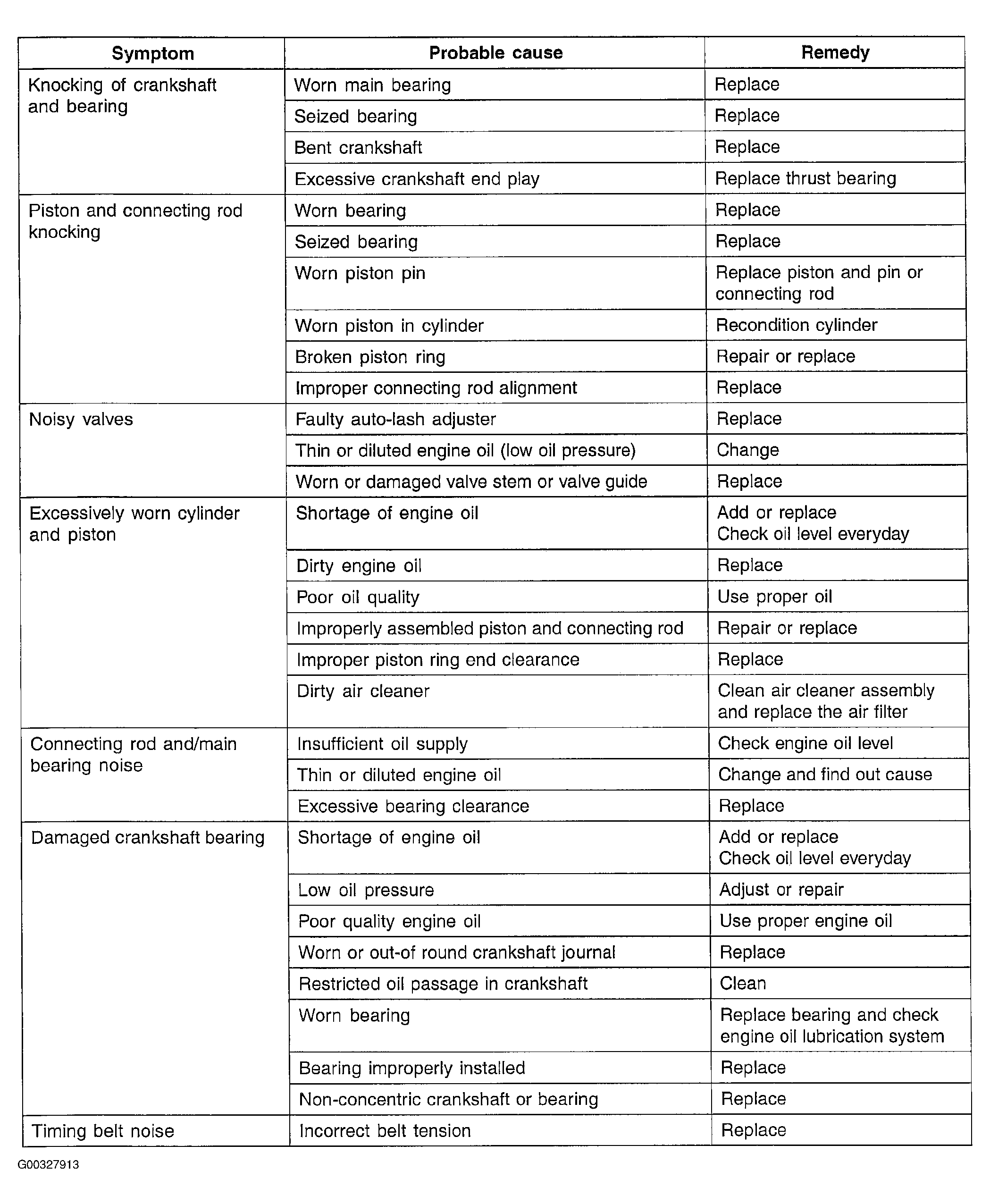

Fig 2: Troubleshooting Chart (2 Of 3)

Courtesy of KIA MOTORS AMERICA, INC.

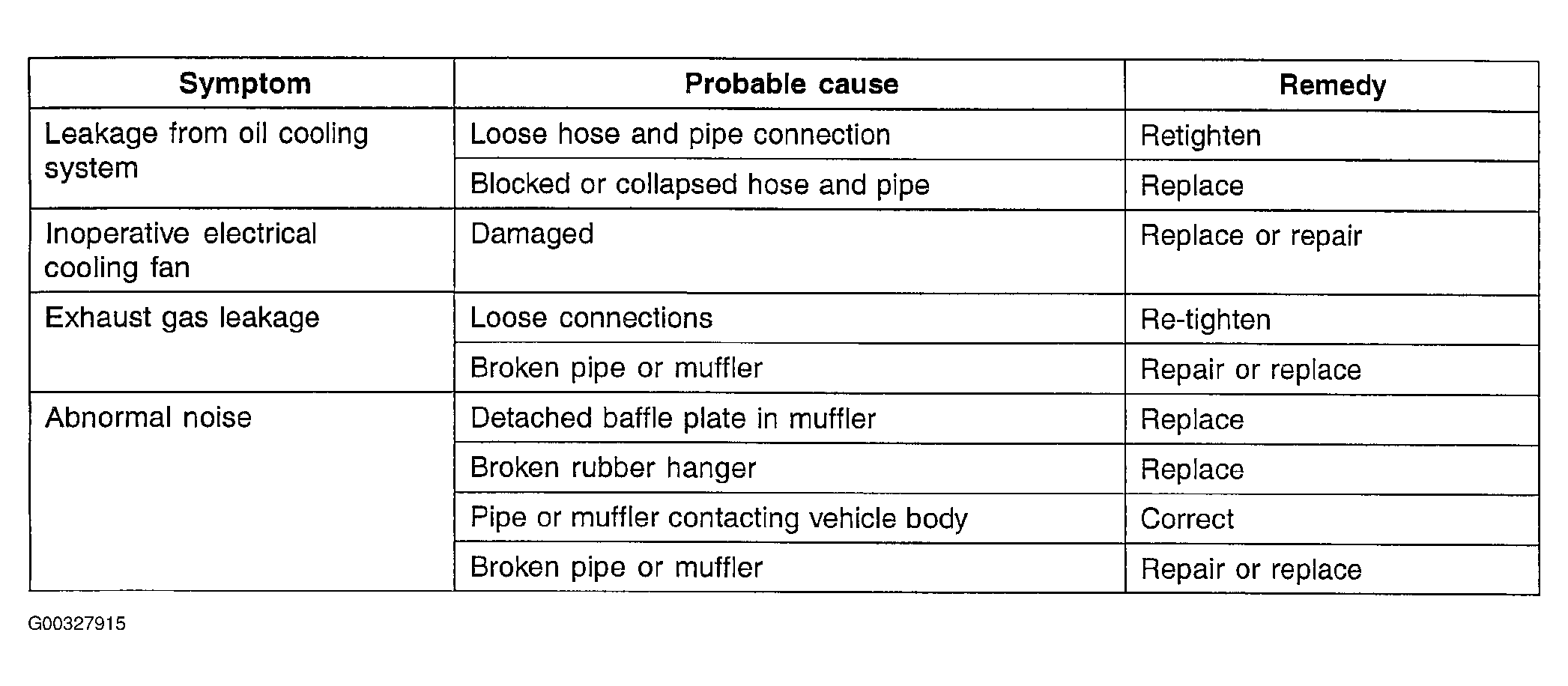

Fig 3: Troubleshooting Chart (3 Of 3)

Courtesy of KIA MOTORS AMERICA, INC.
