Optima EX, 2.7 8
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System/Fuel System - 2.7L
›
MFI Control System
›
Camshaft Position (TDC) Sensor
›
Harness Inspection Procedures (TDC)
Harness Inspection Procedures (TDC)
Fig 1: Checking Camshaft Position Sensor (TDC) Harness (1 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

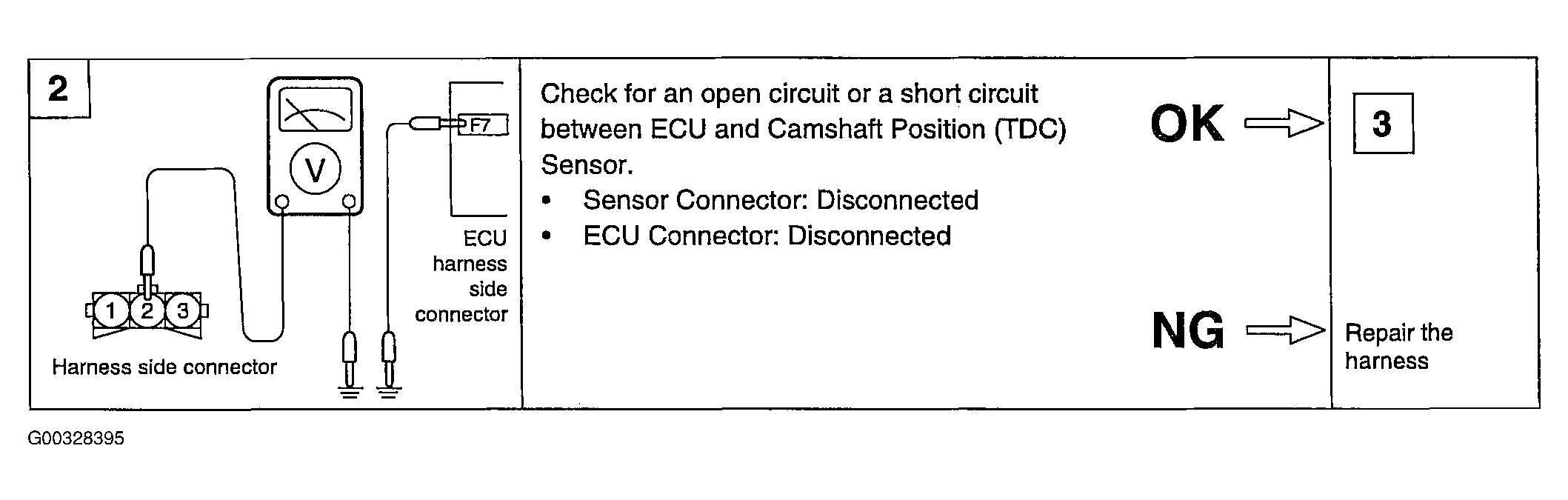

Fig 2: Checking Camshaft Position Sensor (TDC) Harness (2 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

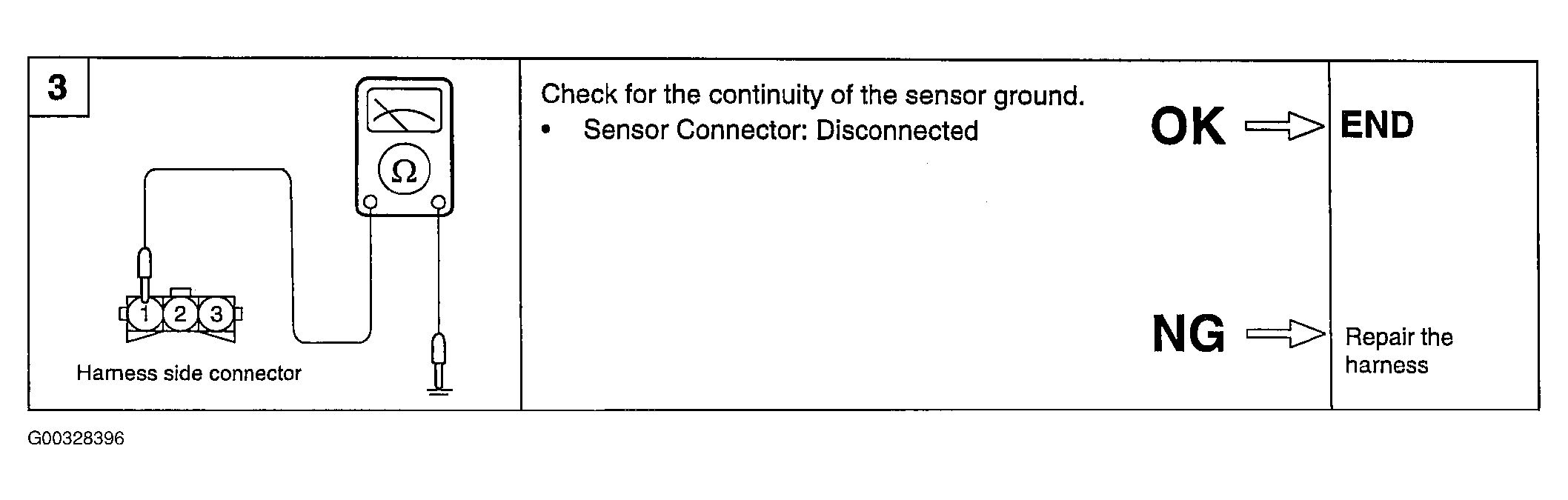

Fig 3: Checking Camshaft Position Sensor (TDC) Harness (3 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
