Connector (F)

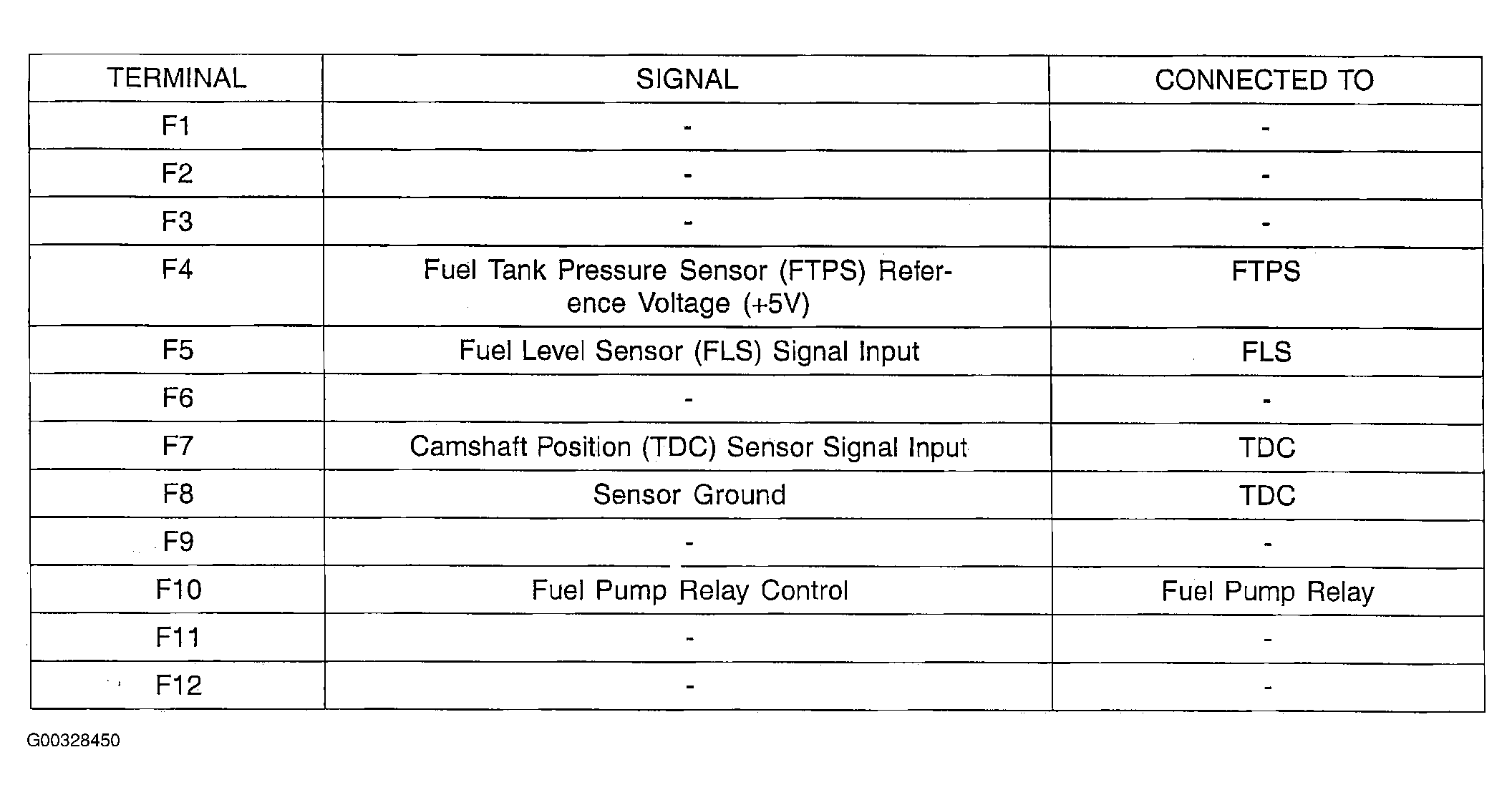

Fig 1: Engine Control Unit Terminal Layout (Connector F) (1 Of 2)
G00328450Courtesy of KIA MOTORS AMERICA, INC.

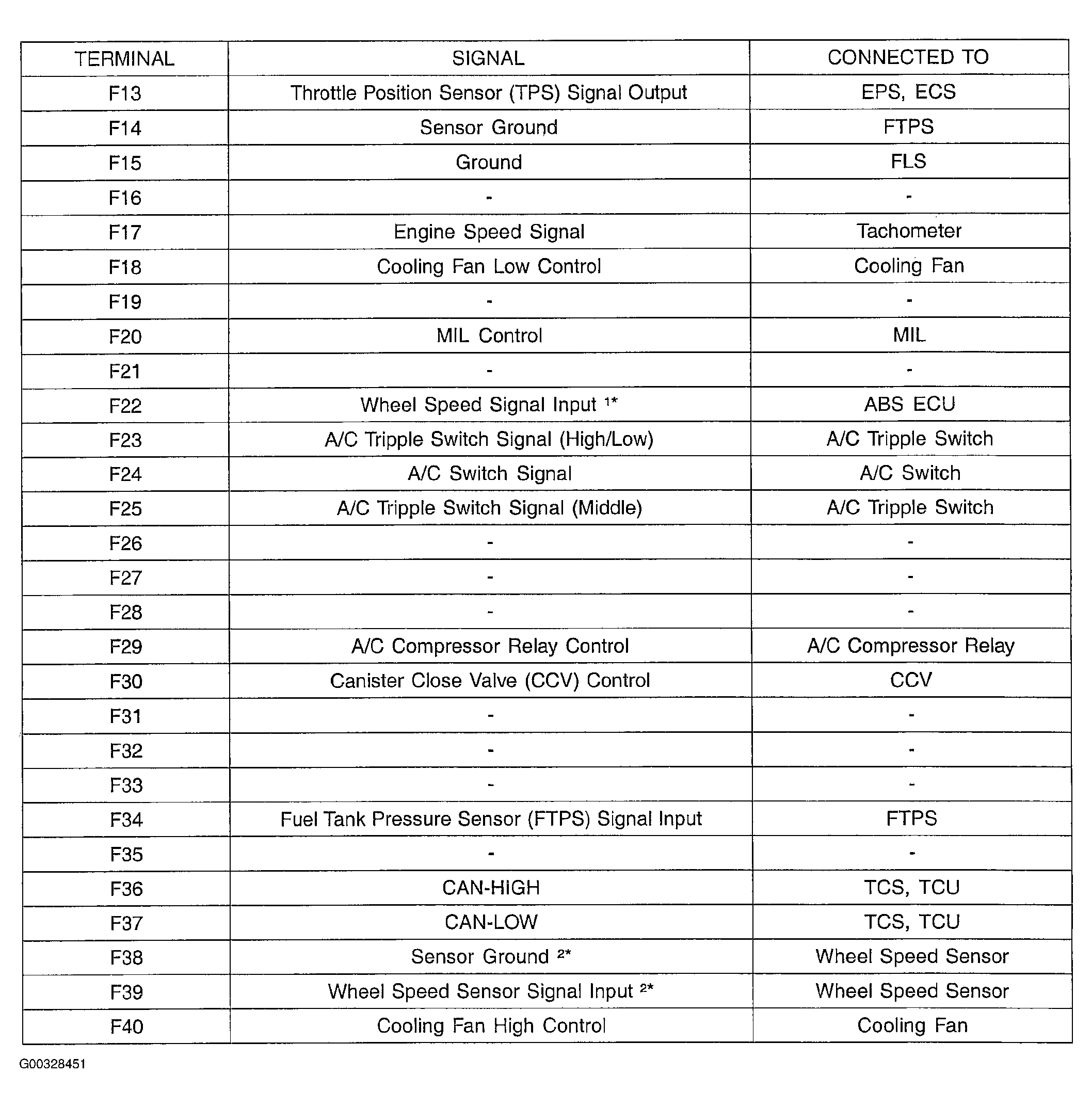

Fig 2: Engine Control Unit Terminal Layout (Connector F) (2 Of 2)
G00328451Courtesy of KIA MOTORS AMERICA, INC.
NOTE: 1 *: This connection is valid for the vehicles WITH ABS.
2 *: This connections are valid for the vehicles WITHOUT ABS.
