Optima EX, 2.7 8
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System/Fuel System - 2.7L
›
MFI Control System
›
Ecu Terminal Layout
›
Connector (M)
Connector (M)

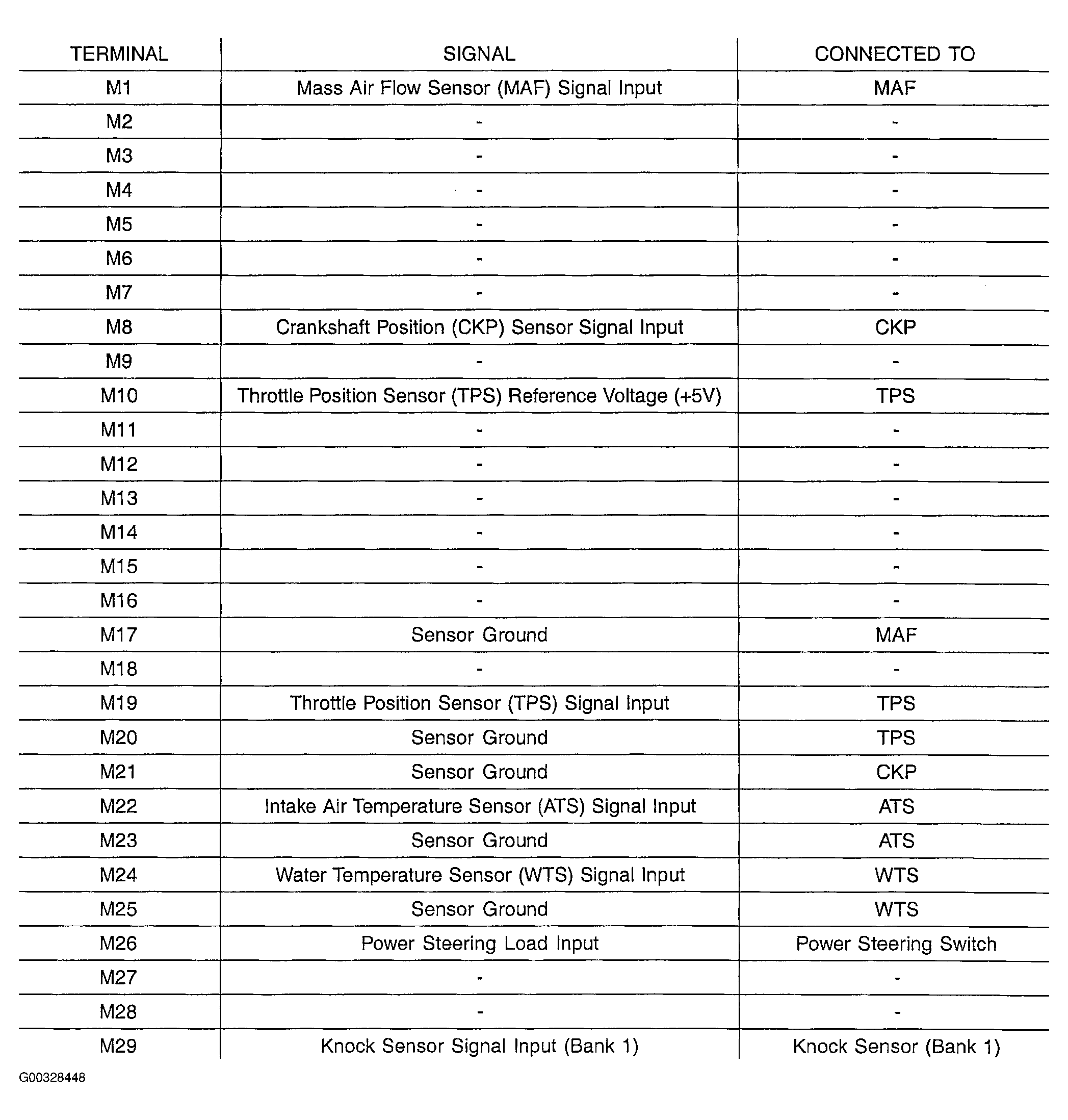

Fig 1: Engine Control Unit Terminal Layout (Connector M) (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

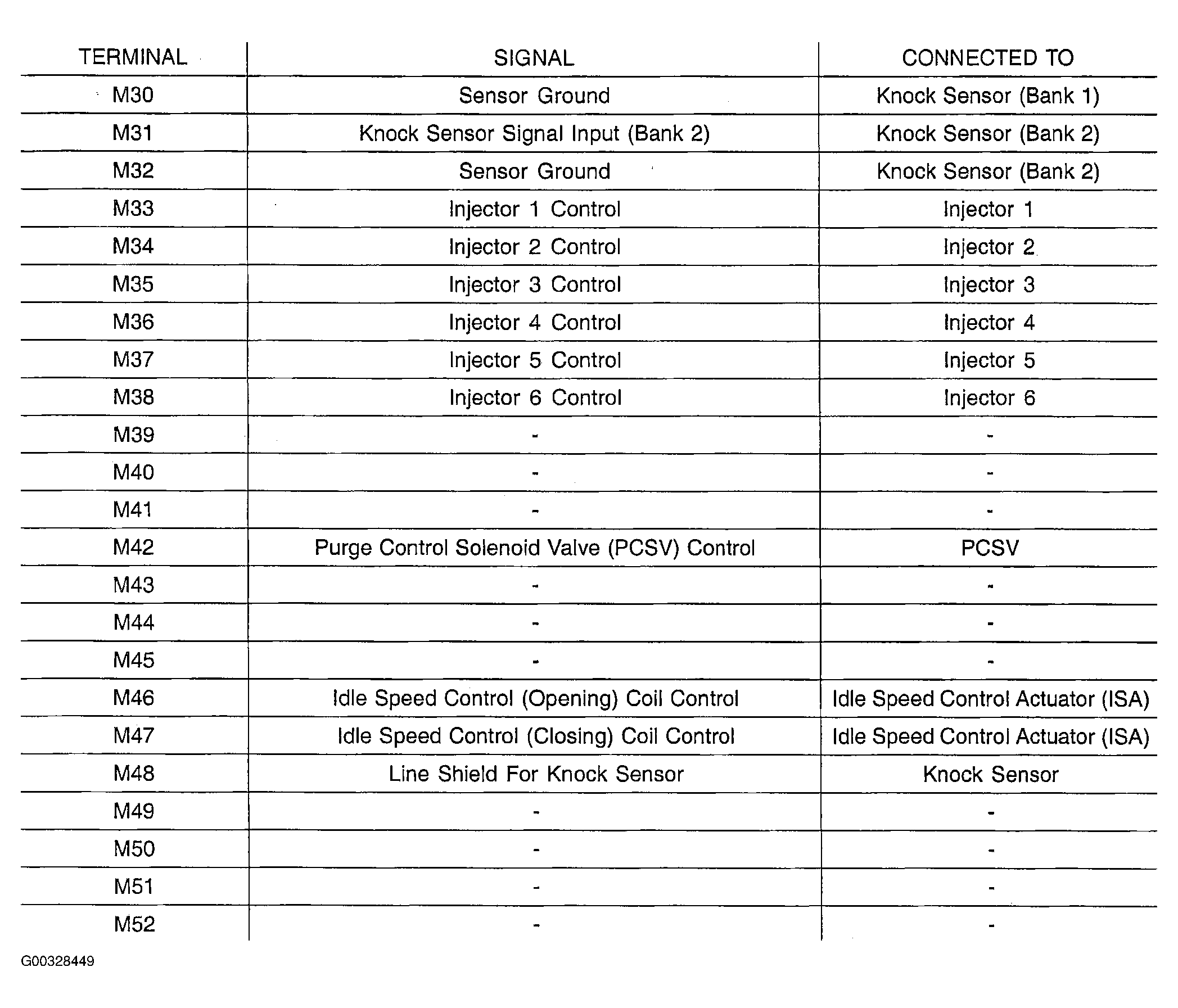

Fig 2: Engine Control Unit Terminal Layout (Connector M) (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
