Ecu Terminal Layout
›
Connector (V)
Connector (V)

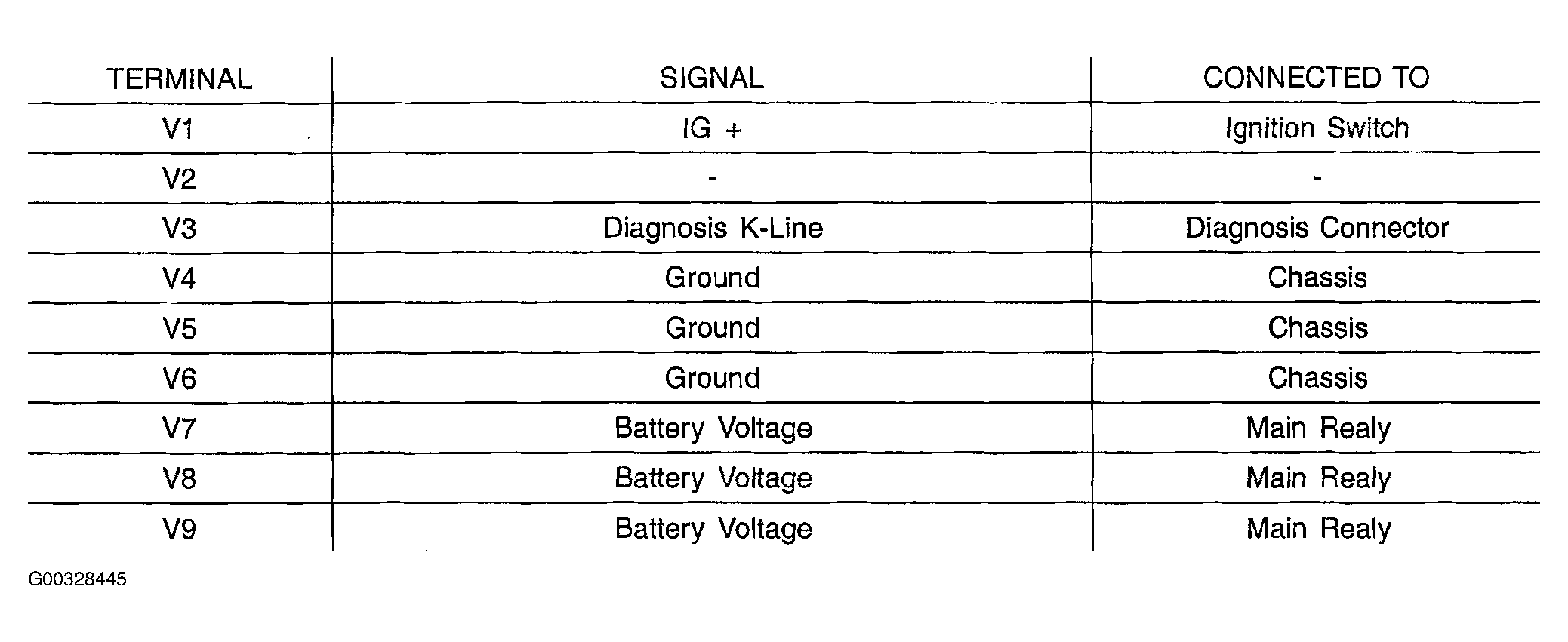

Fig 1: Engine Control Unit Terminal Layout (Connector V)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
