Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System/Fuel System - 2.7L
›
MFI Control System
›
Ecu Terminal Layout
›
Connector (Z)
Connector (Z)

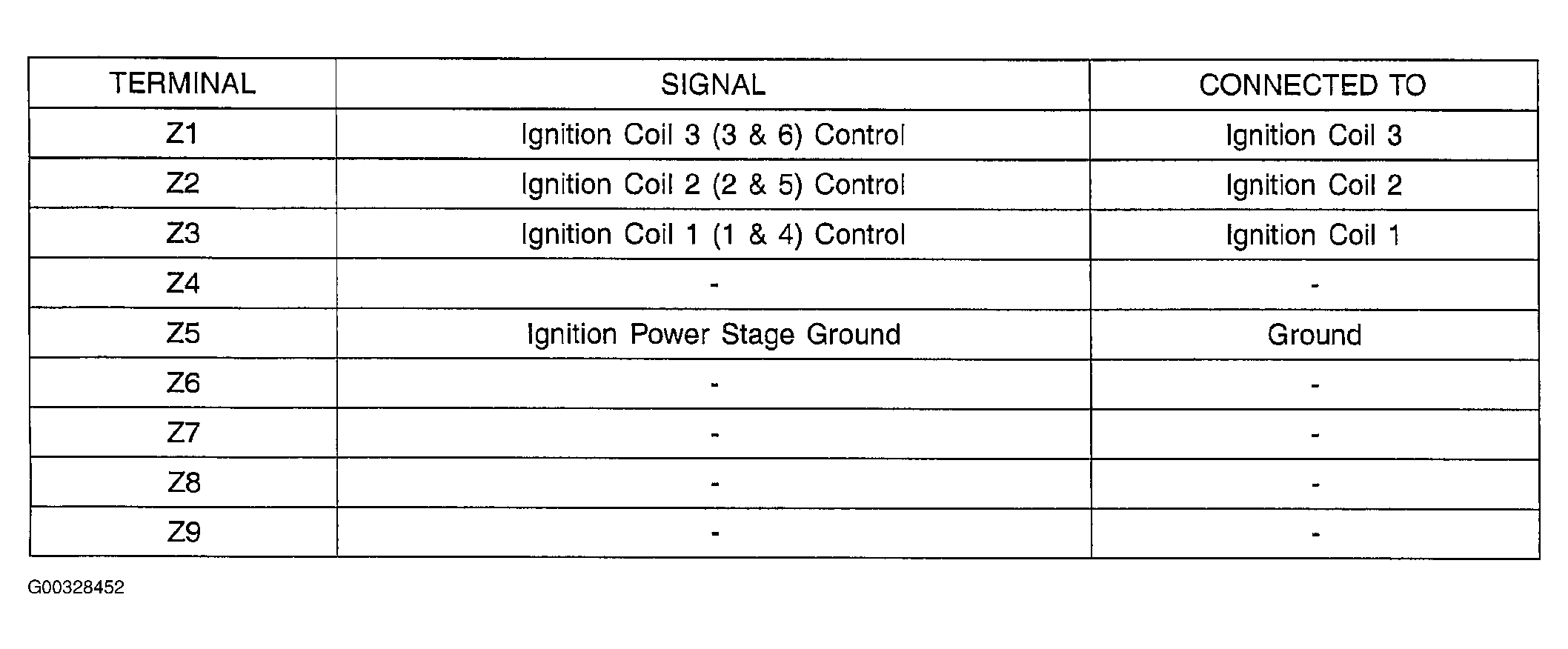

Fig 1: Engine Control Unit Terminal Layout (Connector Z)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
