Harness Inspection Procedures

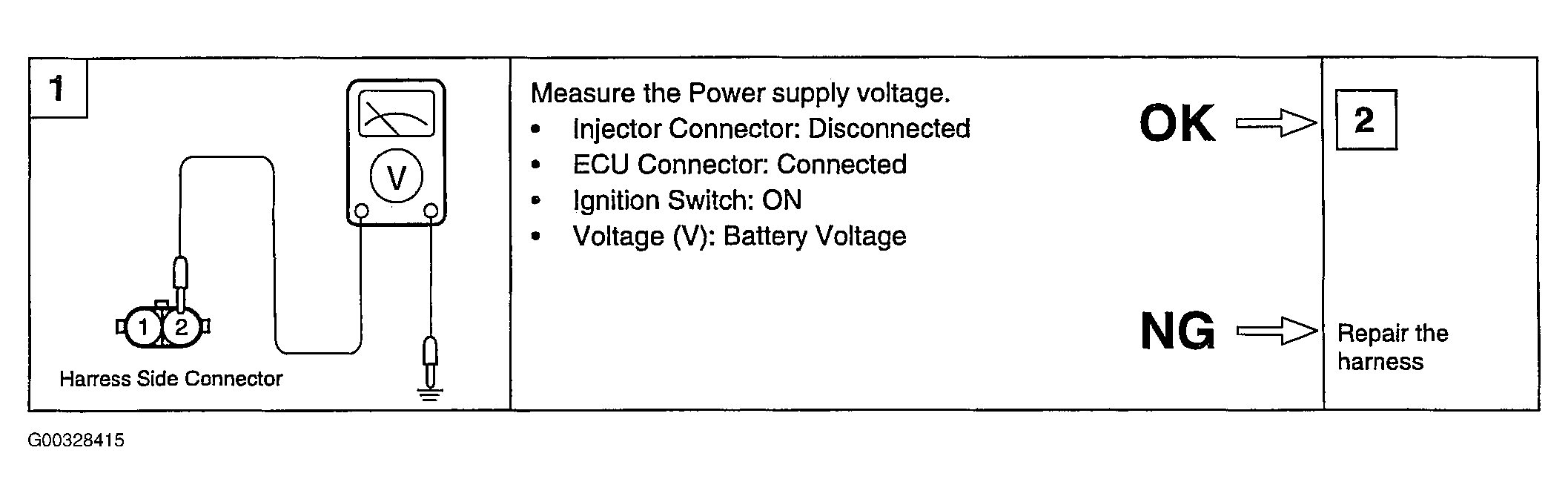

Fig 1: Checking Fuel Injector Harness (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

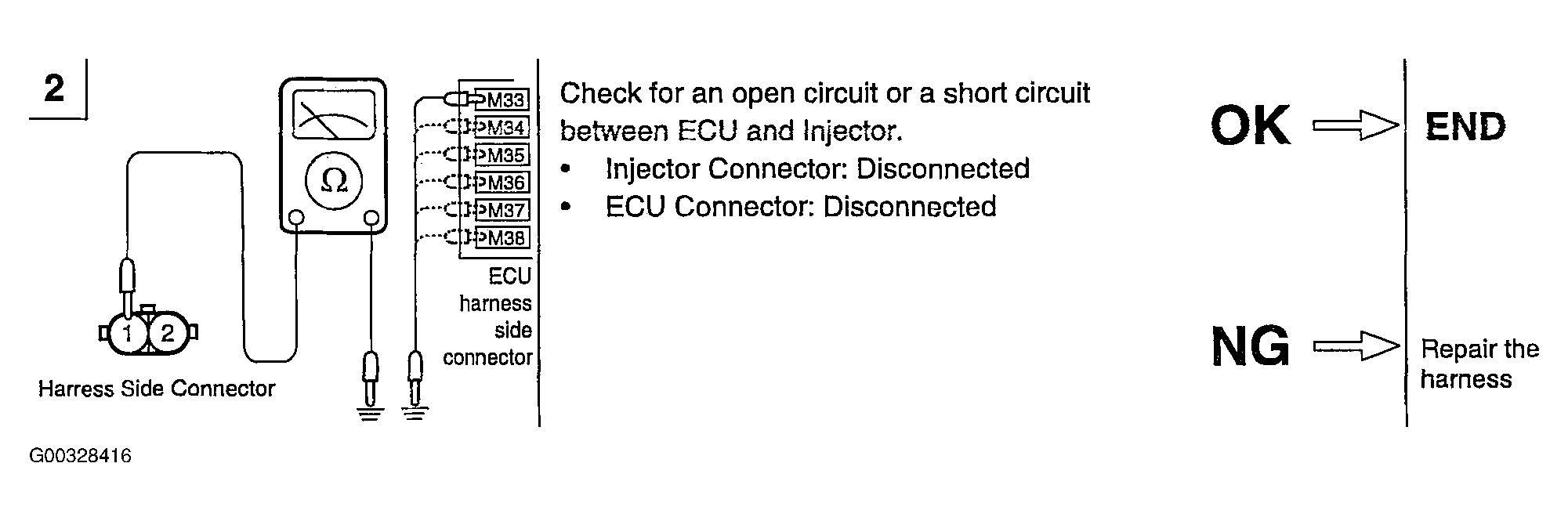

Fig 2: Checking Fuel Injector Harness (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
