Resistance Measurement Between Terminals

1. Disconnect the connector at the injector.
2. Measure the resistance between terminals.

   Standard value: 13-16 Ω (at 20°C (68°F))

3. Re-connect the connector to the injector.

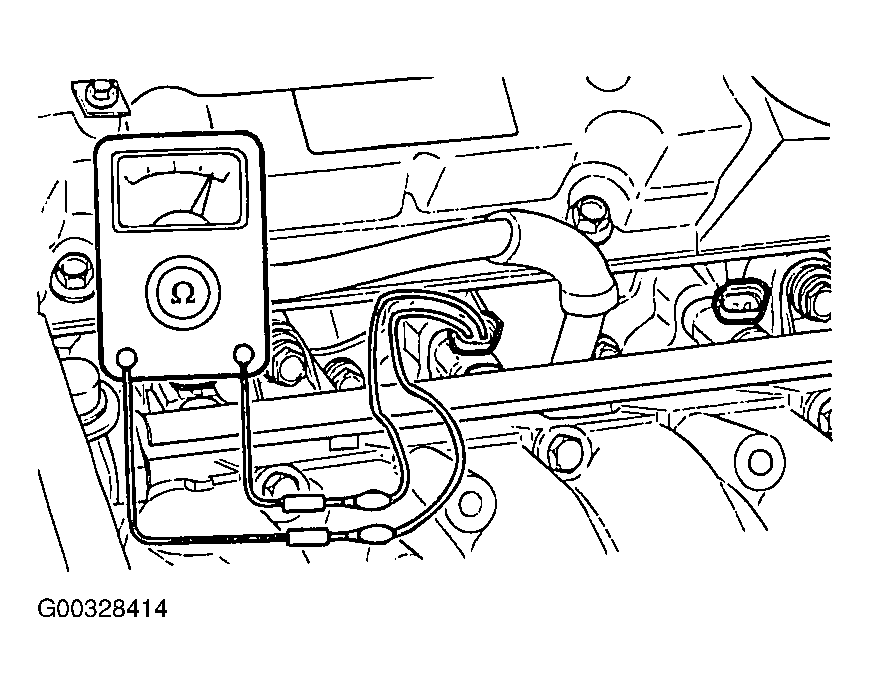

Fig 1: Checking Fuel Injector Resistance

Courtesy of KIA MOTORS AMERICA, INC.
