Engine Control System/Fuel System - 2.7L
›
MFI Control System
›
Intake Air Temperature Sensor (ATS)
›
Inspection
›
Using Ohmmeter
Using Ohmmeter

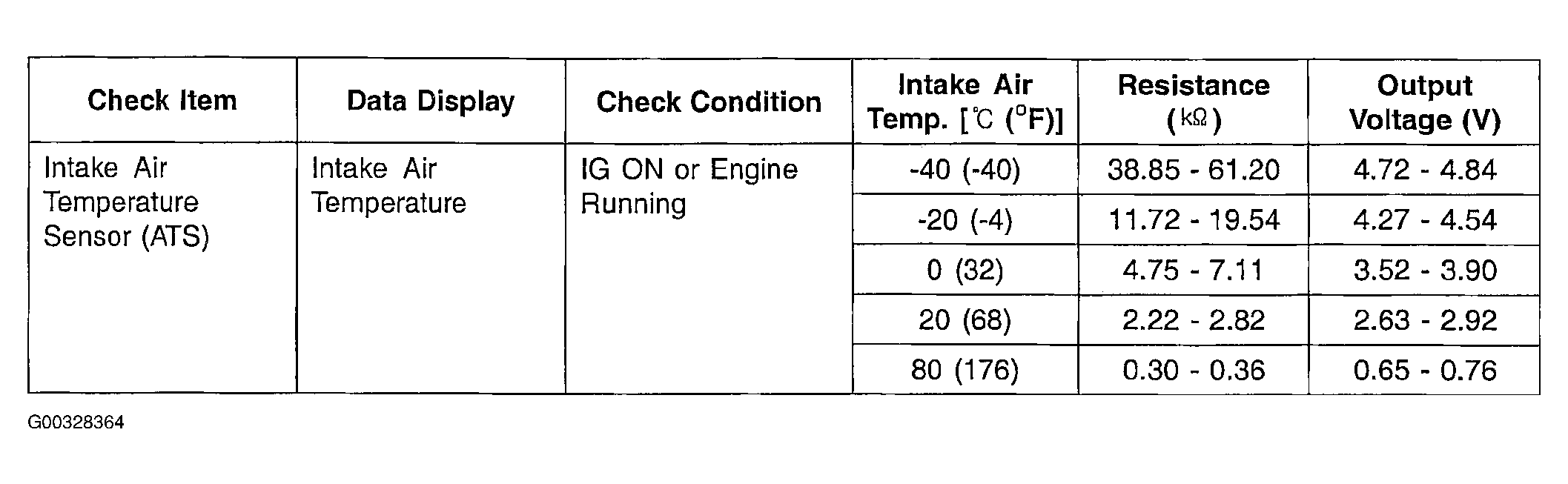

Fig 1: Checking Intake Air Temperature Sensor (ATS) (Using Ohmmeter)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
