Harness Inspection Procedures (MAF)

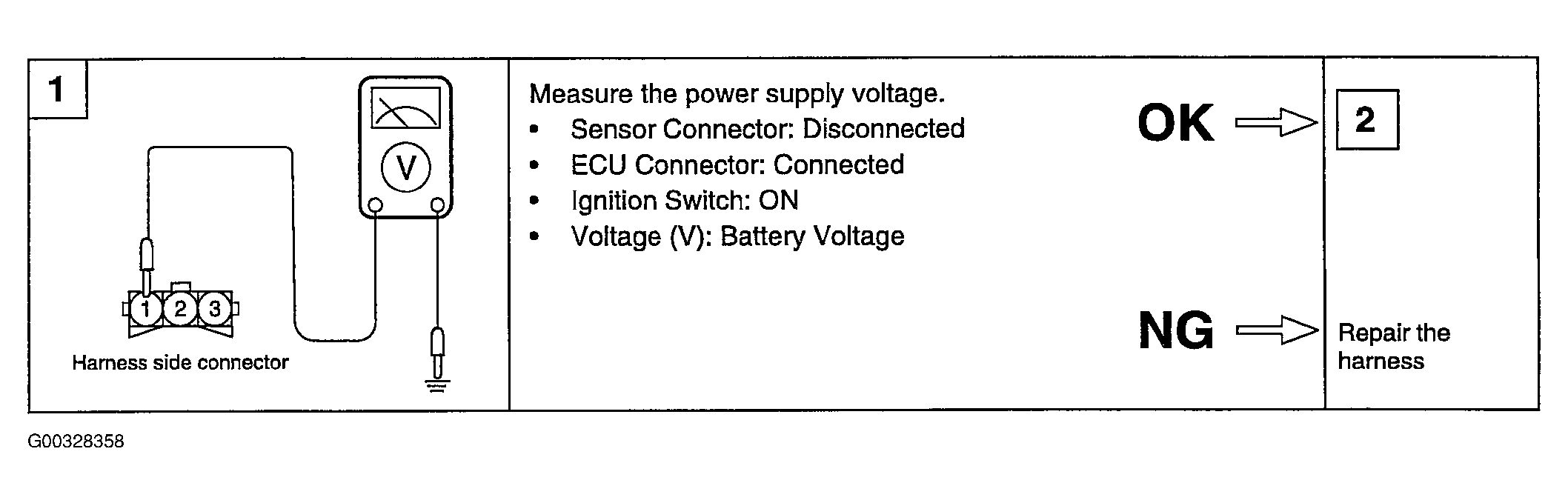

Fig 1: Checking Mass Air Flow (MAF) Sensor Harness (1 Of 3)
G00328358Courtesy of KIA MOTORS AMERICA, INC.

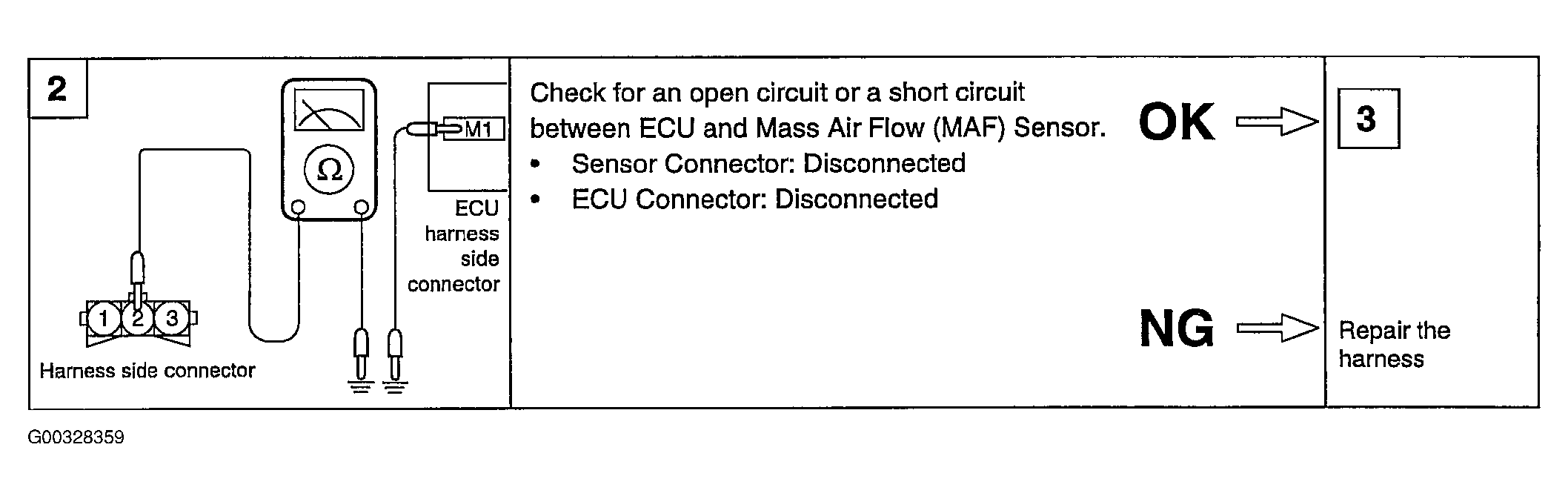

Fig 2: Checking Mass Air Flow (MAF) Sensor Harness (2 Of 3)
G00328359Courtesy of KIA MOTORS AMERICA, INC.

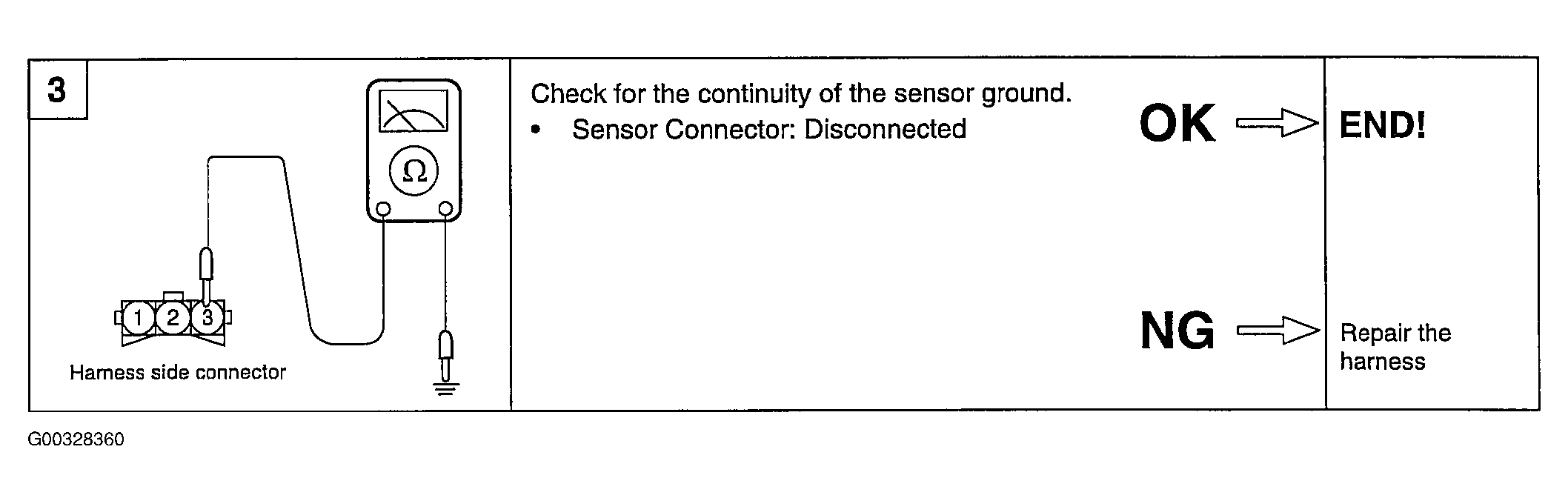

Fig 3: Checking Mass Air Flow (MAF) Sensor Harness (3 Of 3)
G00328360Courtesy of KIA MOTORS AMERICA, INC.
