Engine Control System/Fuel System - 2.7L
›
MFI Control System
›
Intake Air Temperature Sensor (ATS)
›
Harness Inspection Procedures (ATS)
Harness Inspection Procedures (ATS)

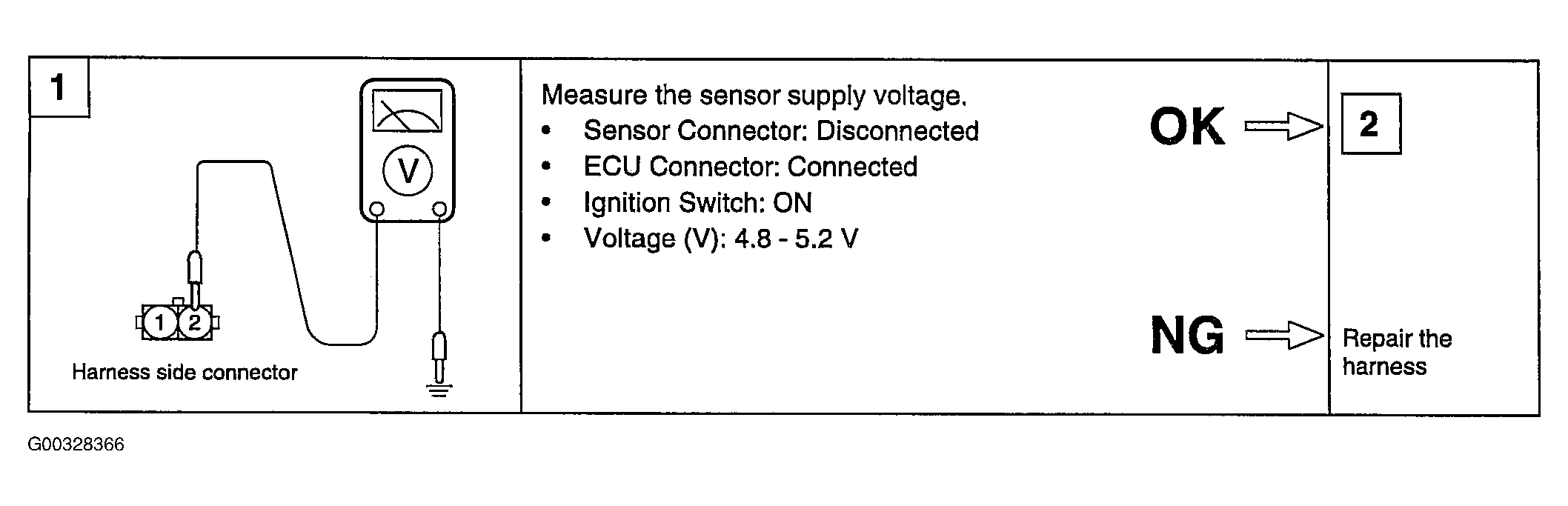

Fig 1: Checking Intake Air Temperature Sensor (ATS) Harness (1 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

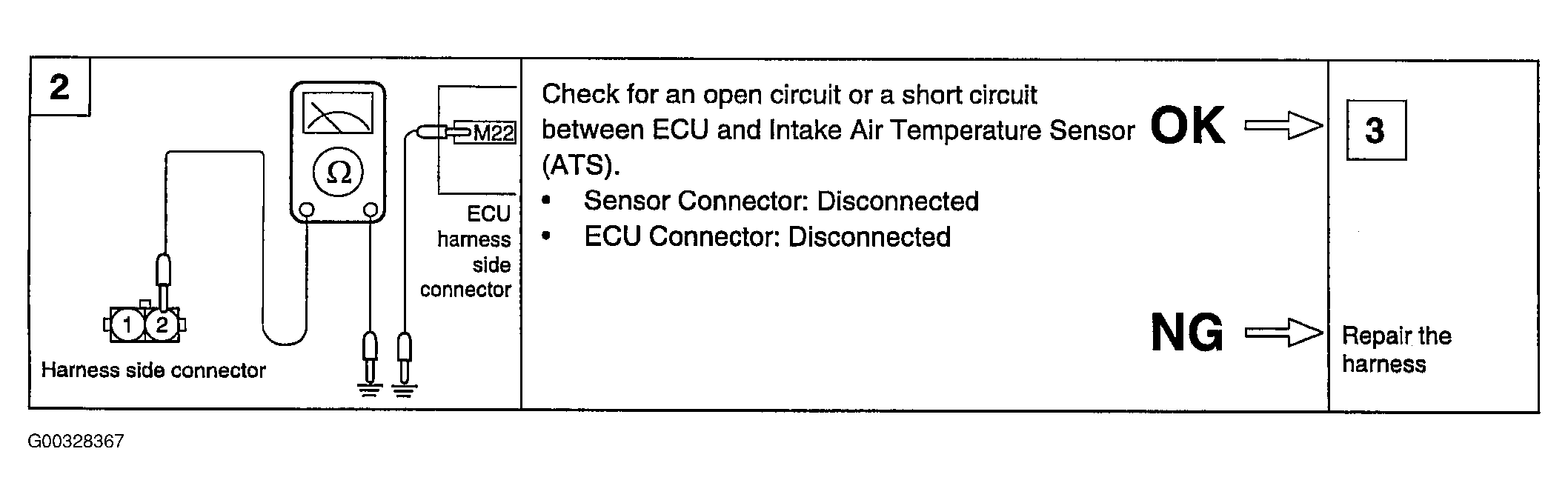

Fig 2: Checking Intake Air Temperature Sensor (ATS) Harness (2 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

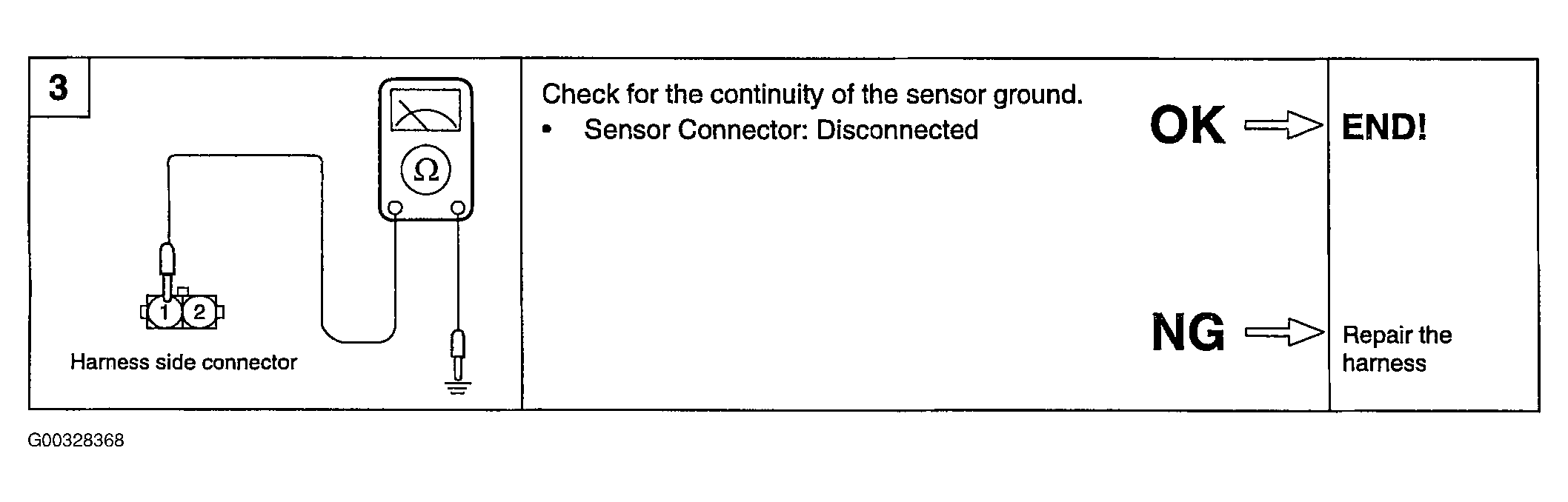

Fig 3: Checking Intake Air Temperature Sensor (ATS) Harness (3 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
