Engine Control System/Fuel System - 2.4L (A/T)
›
MFI Control System
›
Ecu Terminal Layout
›
Connector (C)
Connector (C)

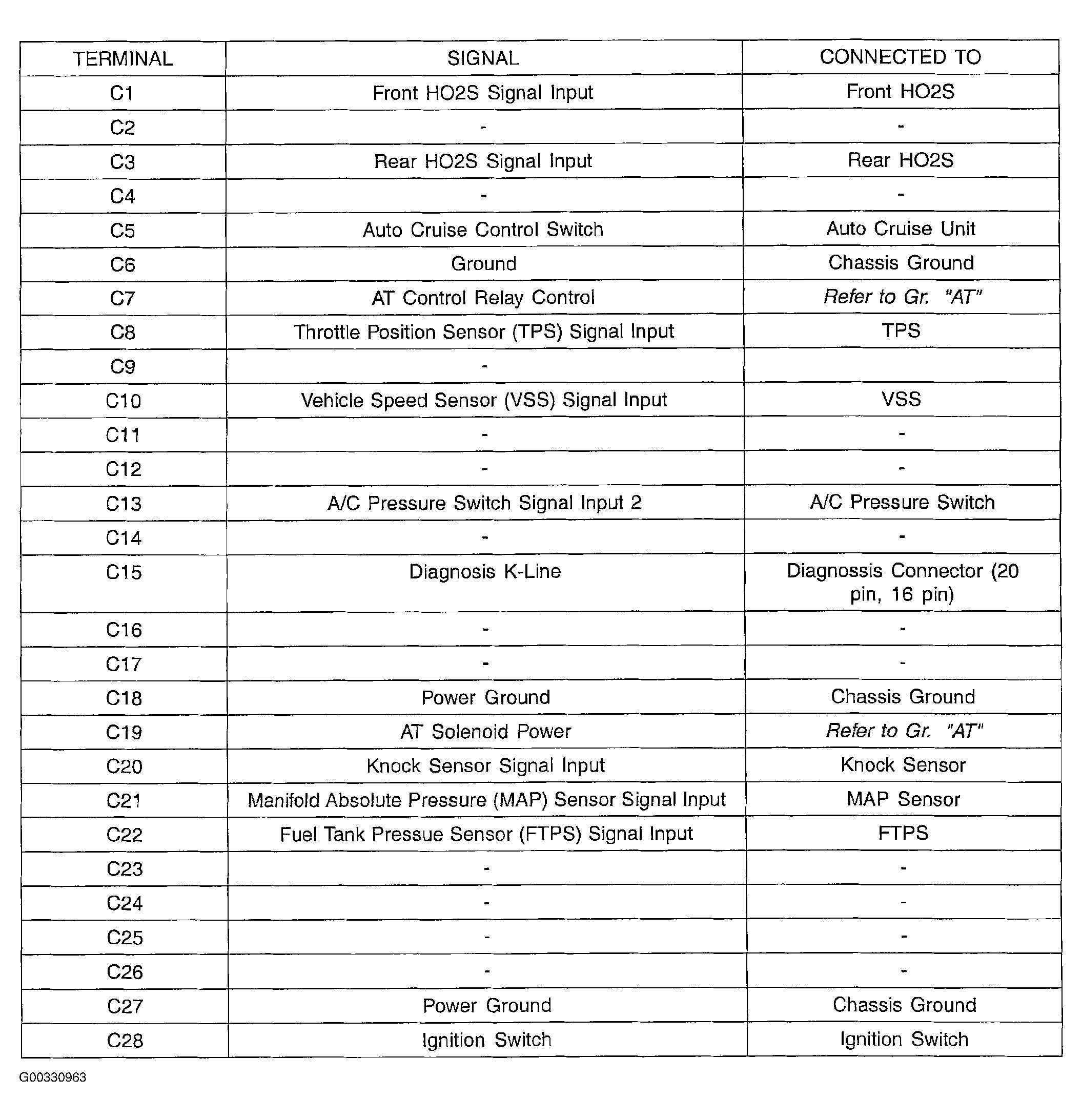

Fig 1: Identifying Terminal Layout Of Connector "C" - Vehicles With Transaxle Control Unit (TCU) (Vehicles With Automatic Transaxle)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
