Circuit Diagram
Circuit Diagram

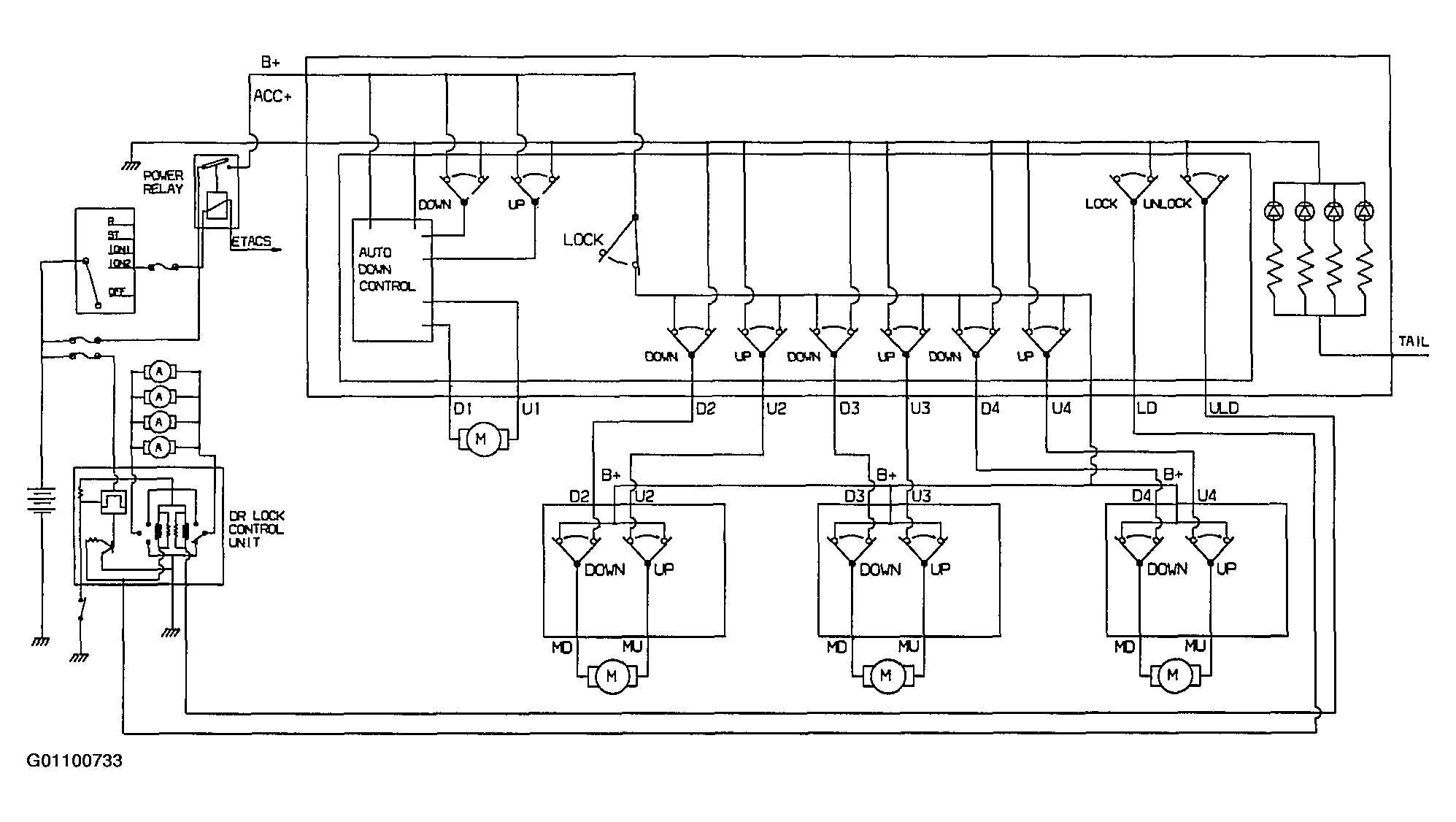

Fig 1: Circuit Diagram For Power Windows
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
