Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System/Fuel System - 2.4L (M/T)
›
MFI Control System
›
Ecu Terminal Layout
›
Connector (B)
Connector (B)

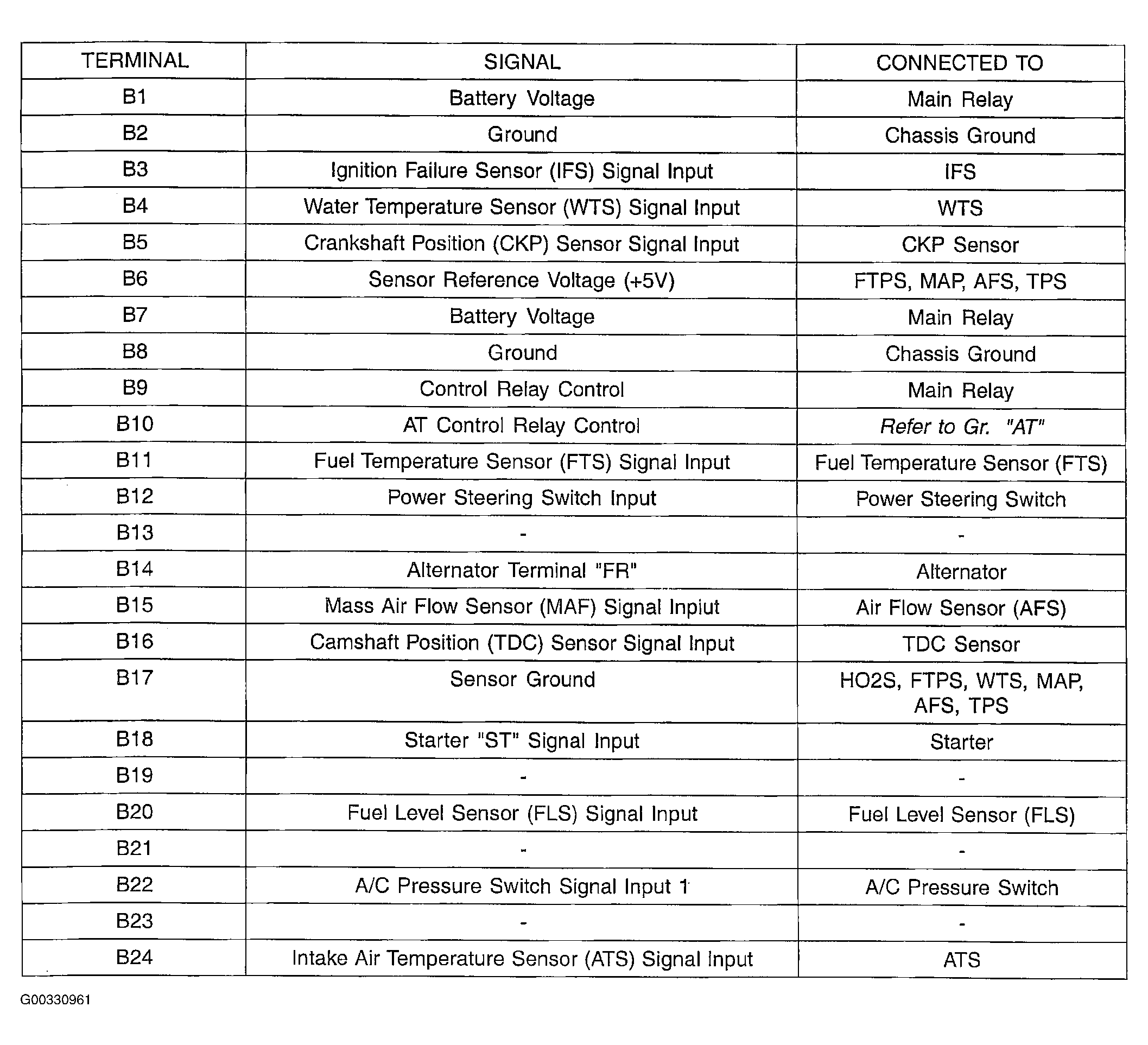

Fig 1: Identifying Terminal Layout Of Connector "B" (1 Of 2) - Vehicles With Transaxle Control Unit (TCU) (Vehicles With Auto Transaxle)
Courtesy of KIA MOTORS AMERICA, INC.
Fig 2: Identifying Terminal Layout Of Connector "B" (2 Of 2) - Vehicles With Transaxle Control Unit (TCU) (Vehicles With Automatic Transaxle)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
