Output Shaft: Components

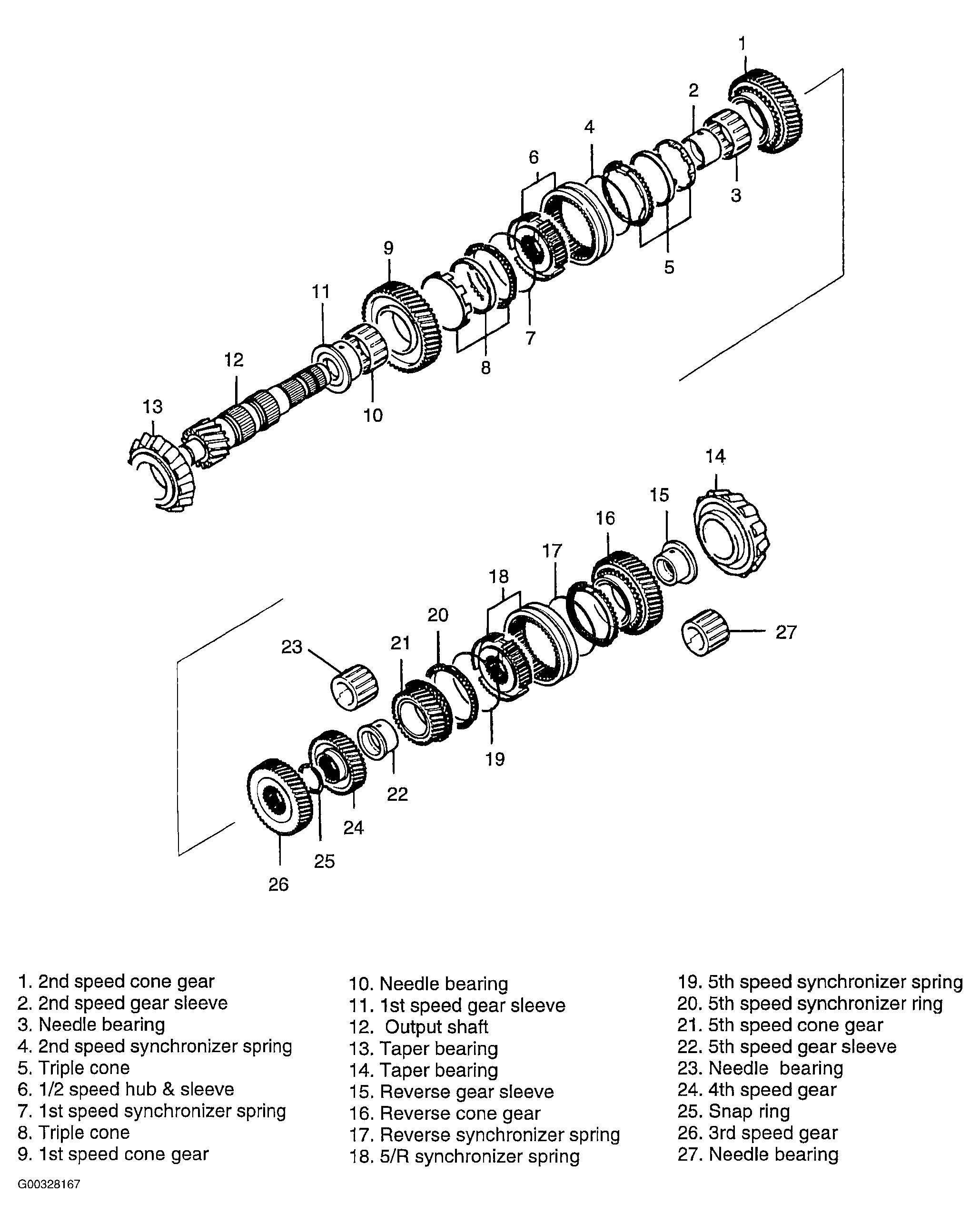

Fig 1: Exploded View Of Output Shaft
G00328167Courtesy of KIA MOTORS AMERICA, INC.
