Engine Stalls Suddenly

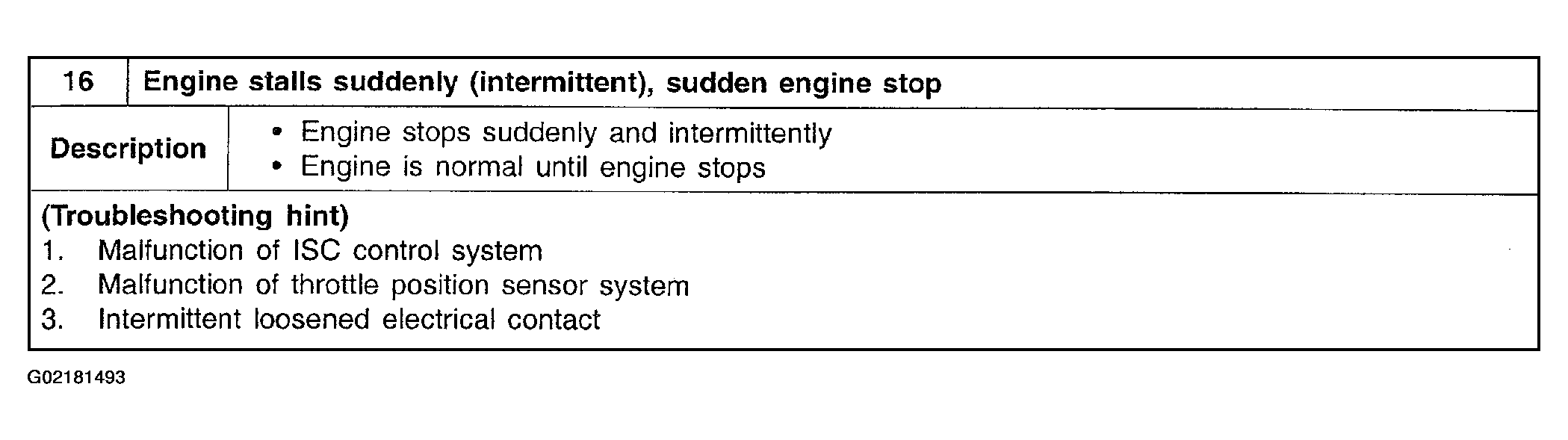

Fig 1: Description
G02181493Courtesy of KIA MOTORS AMERICA, INC.

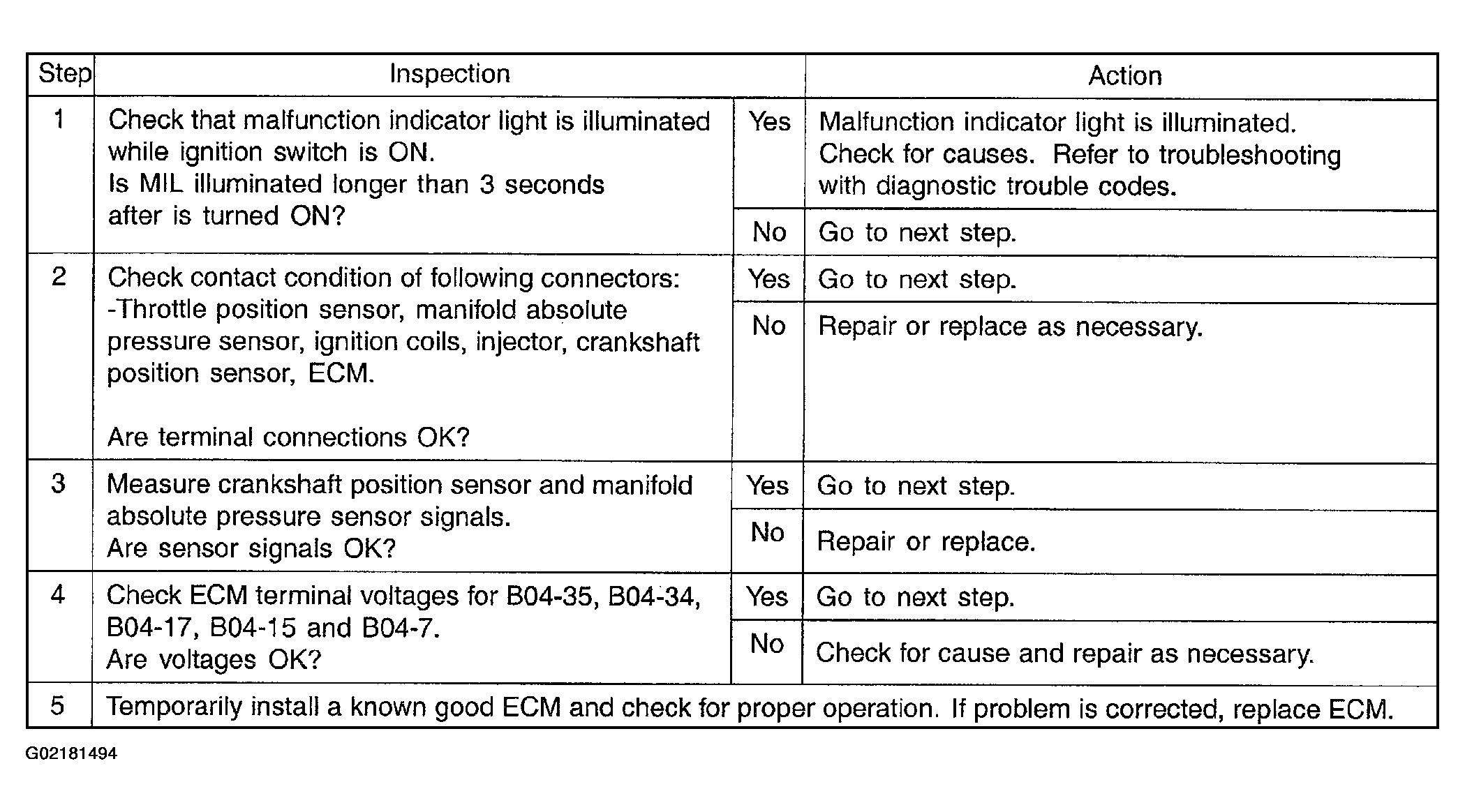

Fig 2: Inspection/Action Chart
G02181494Courtesy of KIA MOTORS AMERICA, INC.
