High Oil Consumption

Fig 1: Description
G02181515Courtesy of KIA MOTORS AMERICA, INC.

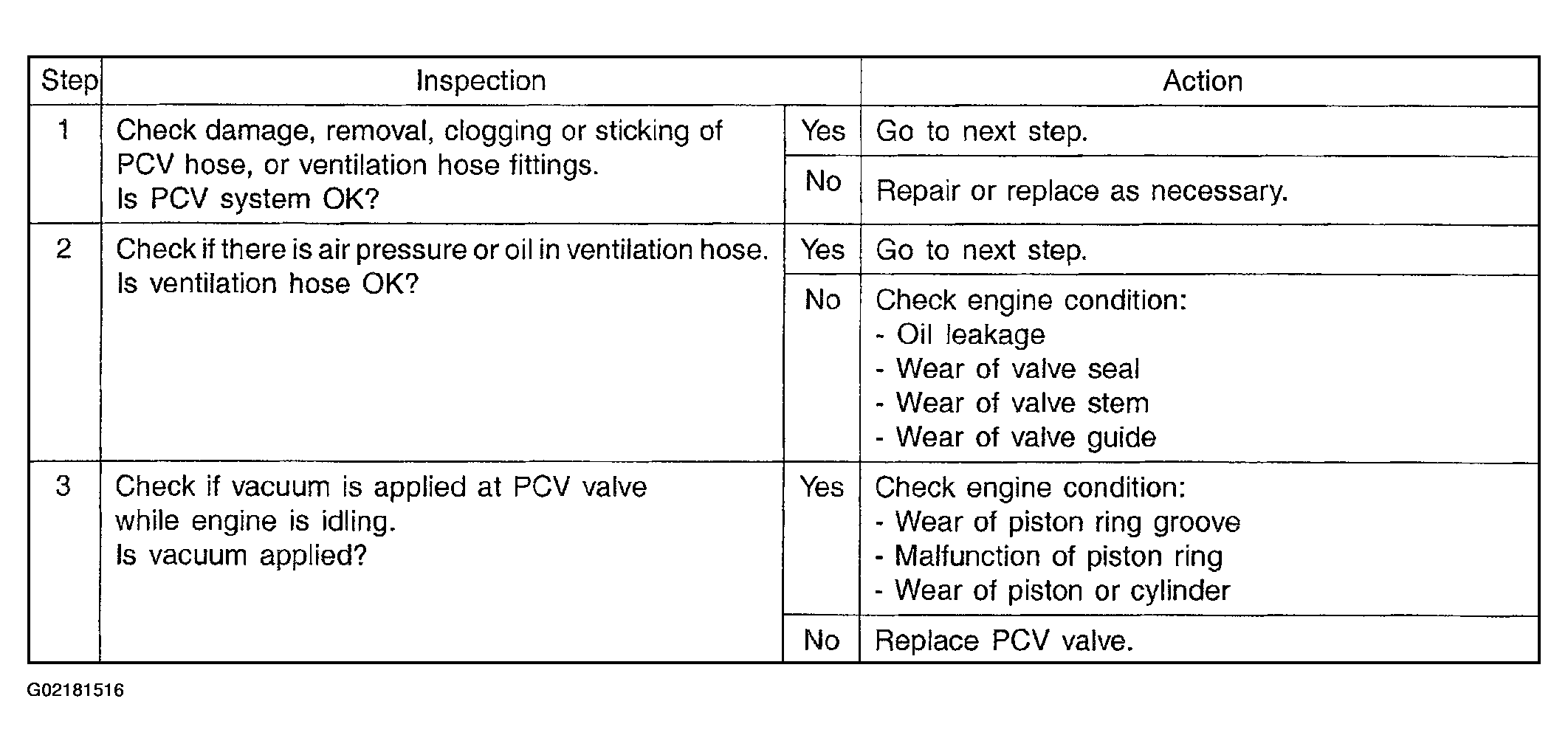

Fig 2: Inspection/Action Chart
G02181516Courtesy of KIA MOTORS AMERICA, INC.
