Front Wiper Motor Connector End View
Front Wiper Motor Connector End View

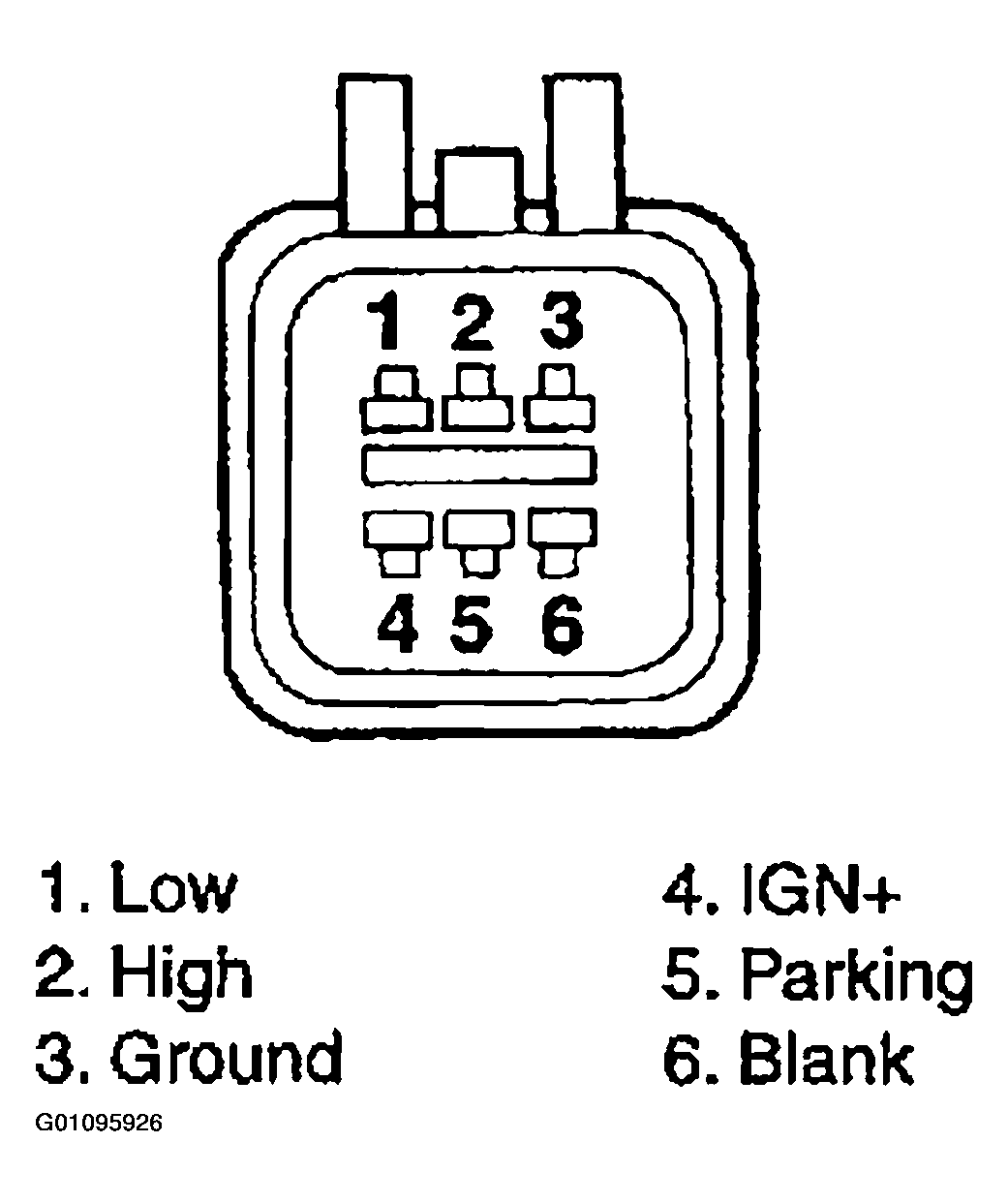

Fig 1: Front Wiper Motor Connector End View
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
