Rough Idling/Engine Stops While Idling (A/C On)

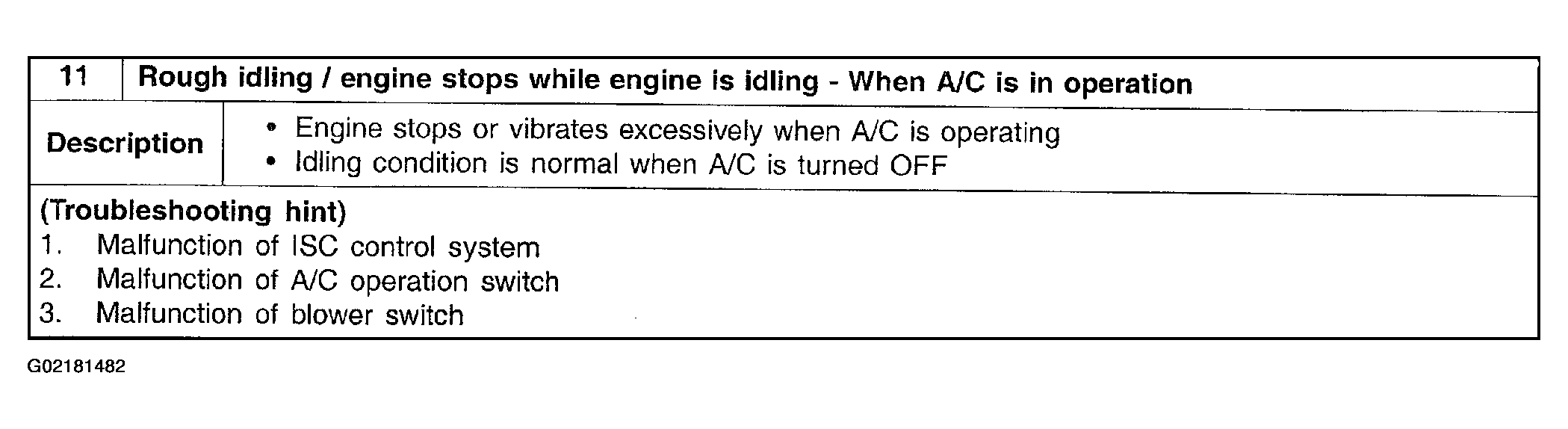

Fig 1: Description

G02181482

Courtesy of KIA MOTORS AMERICA, INC.

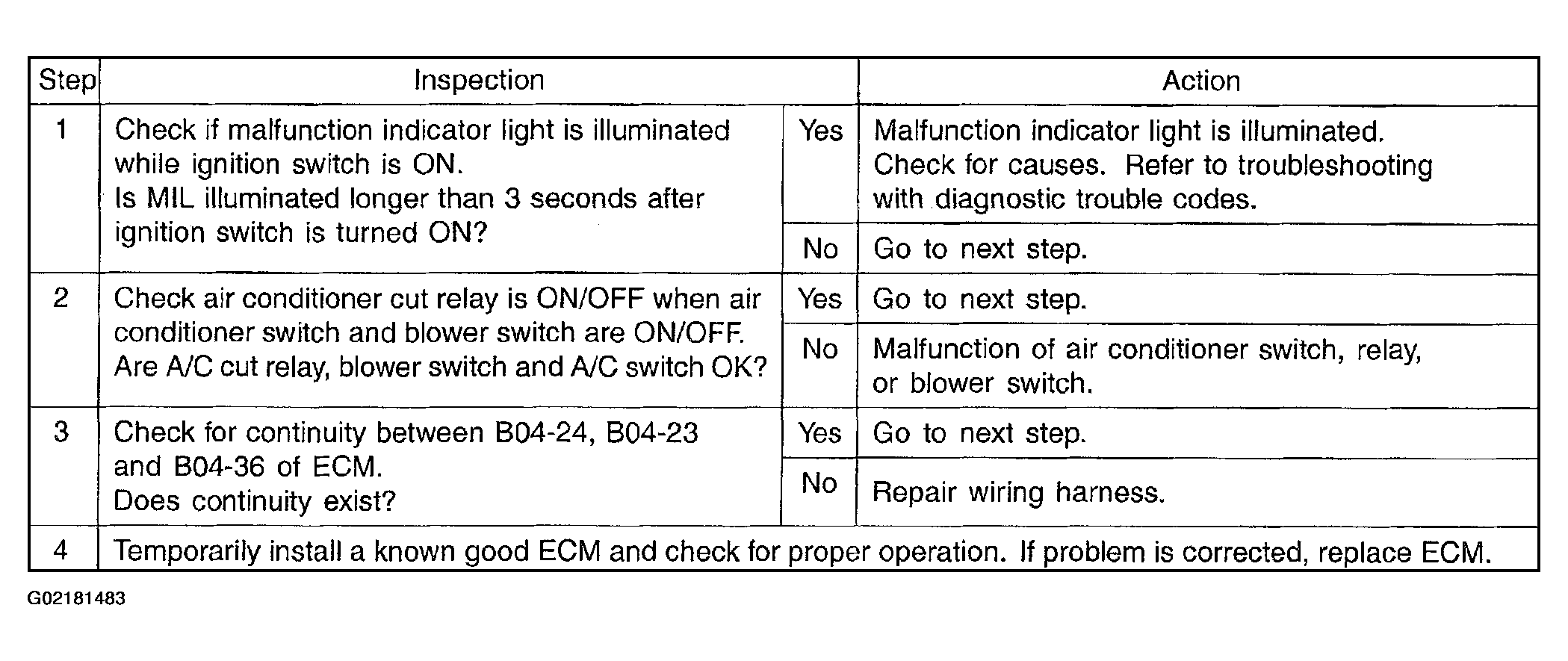

Fig 2: Inspection/Action Chart

G02181483

Courtesy of KIA MOTORS AMERICA, INC.
