Rough Idling/Engine Stops While Idling (Engine Warm)

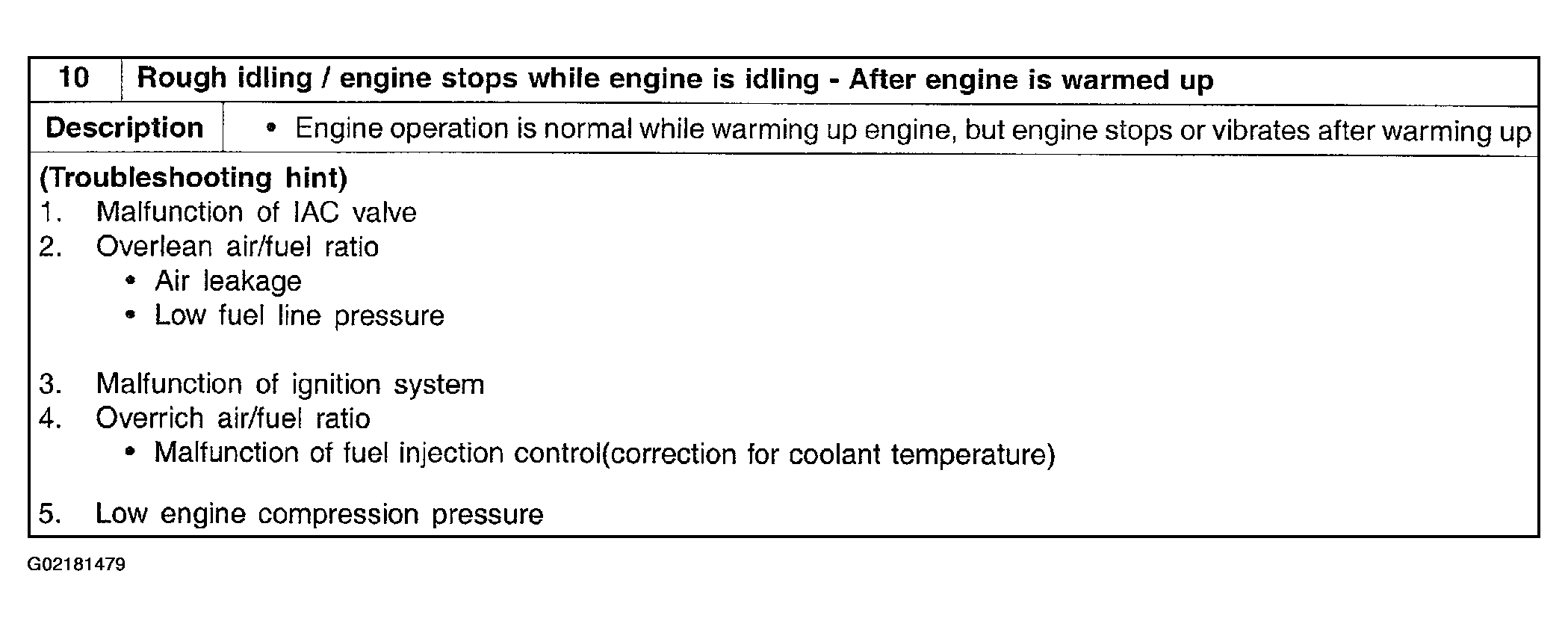

Fig 1: Description

Courtesy of KIA MOTORS AMERICA, INC.

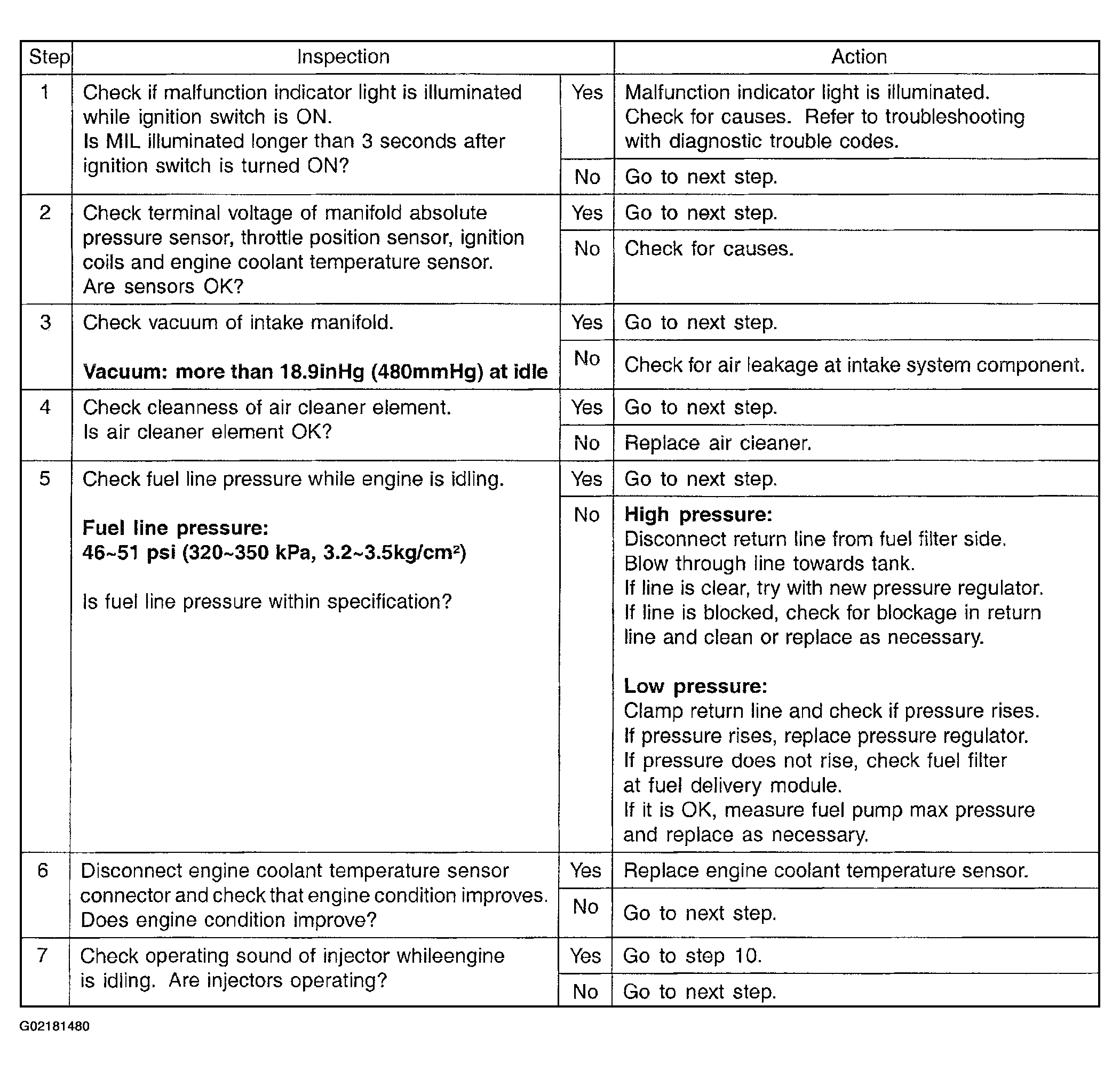

Fig 2: Inspection/Action Chart (1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

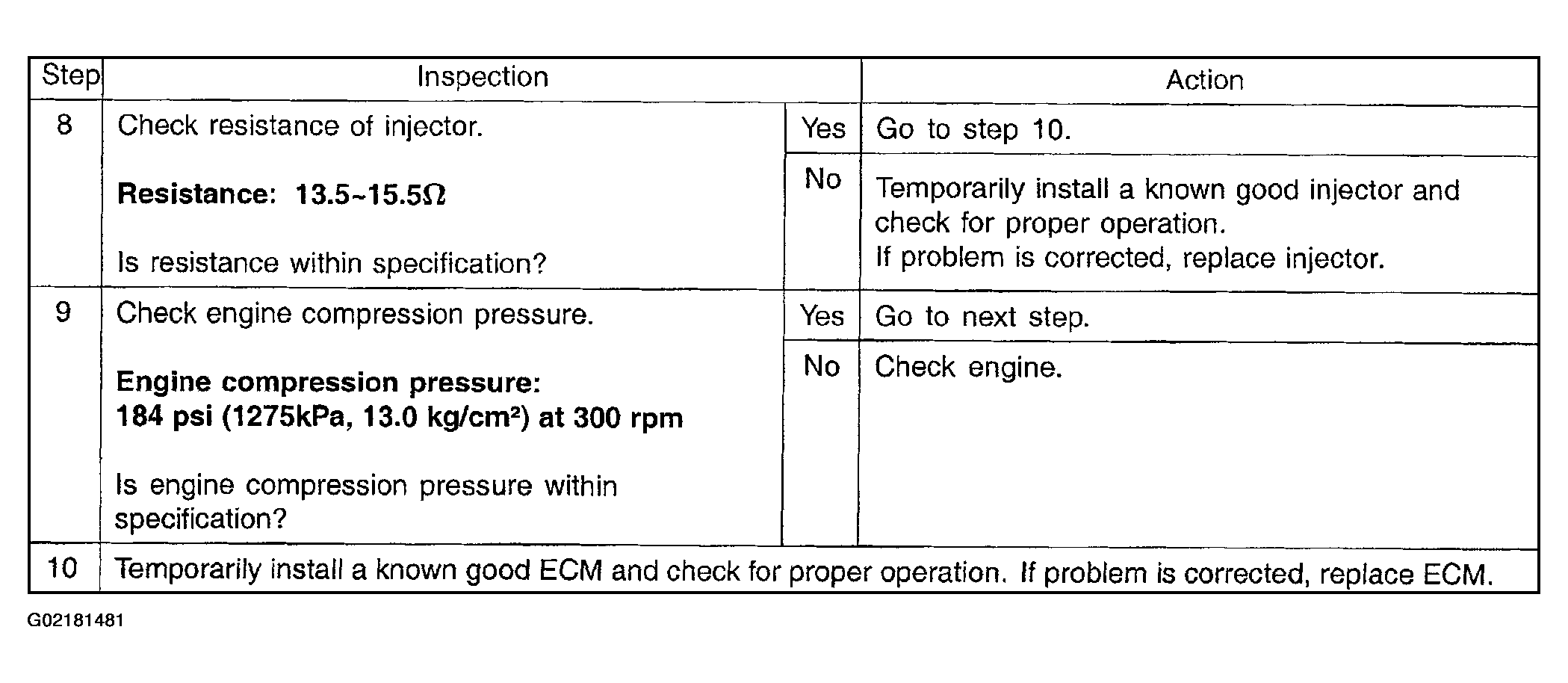

Fig 3: Inspection/Action Chart (2 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.
