Oxygen Sensor & Powertrain Control Module Connector End Views & Locations
Oxygen Sensor & Powertrain Control Module Connector End Views & Locations

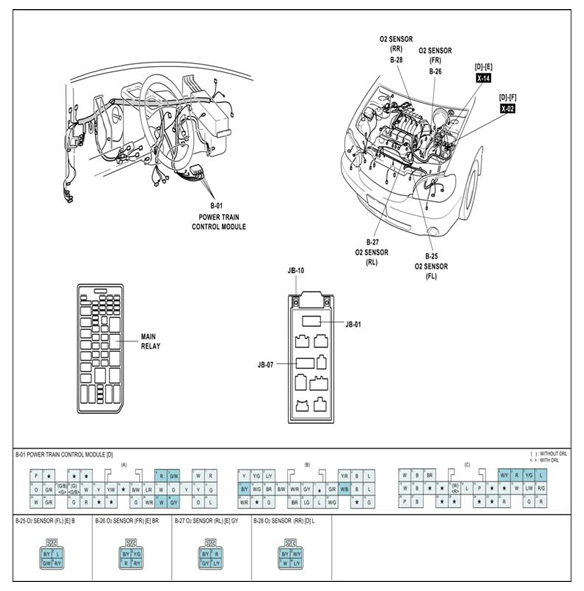

Fig 1: Oxygen Sensor & Powertrain Control Module Connector End Views & Locations
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
