At High Coolant Temperature

The A/C relay is turned off at the coolant temperature over 110-115°C (230-239°F) after engine start.

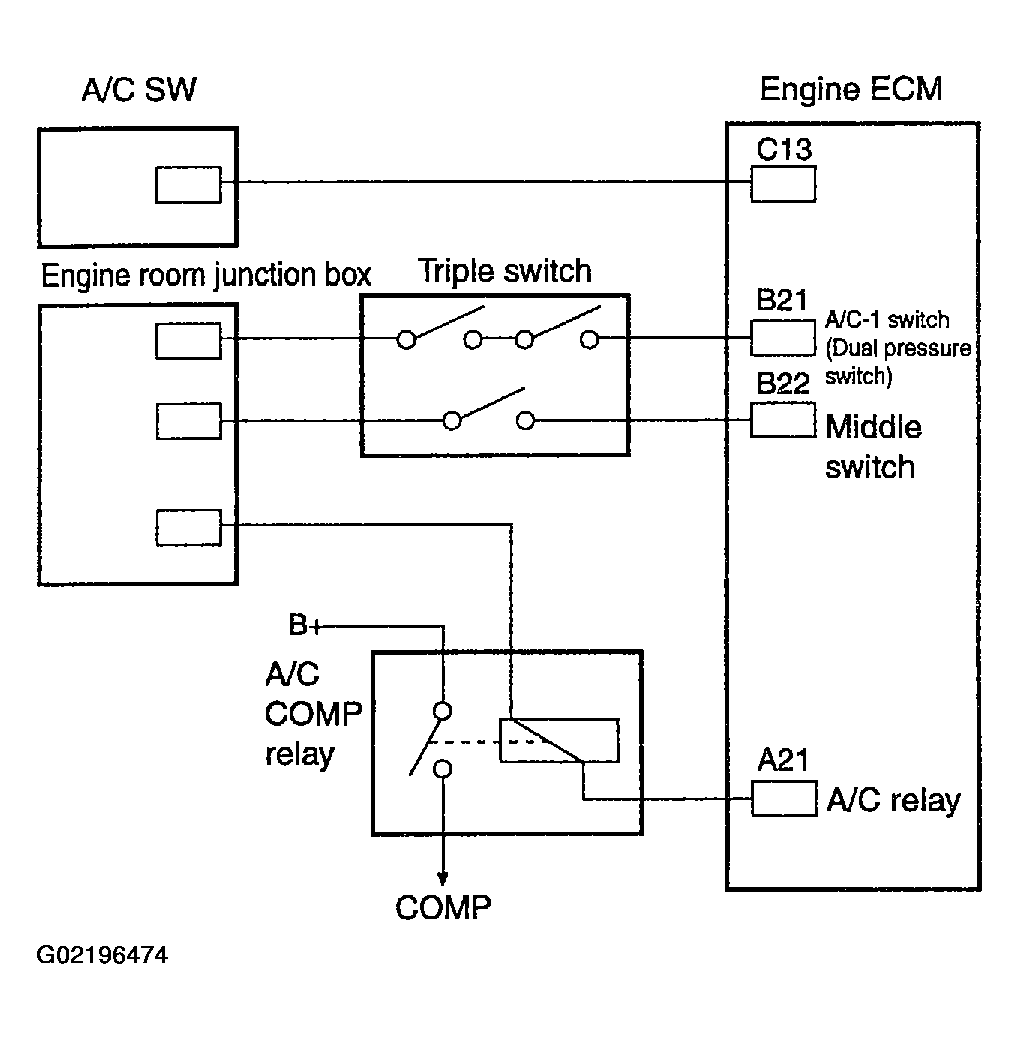

Fig 1: A/C Relay Circuit Diagram

Courtesy of KIA MOTORS AMERICA, INC.
