Cooling Fan Logic
The duty at A/C OFF.

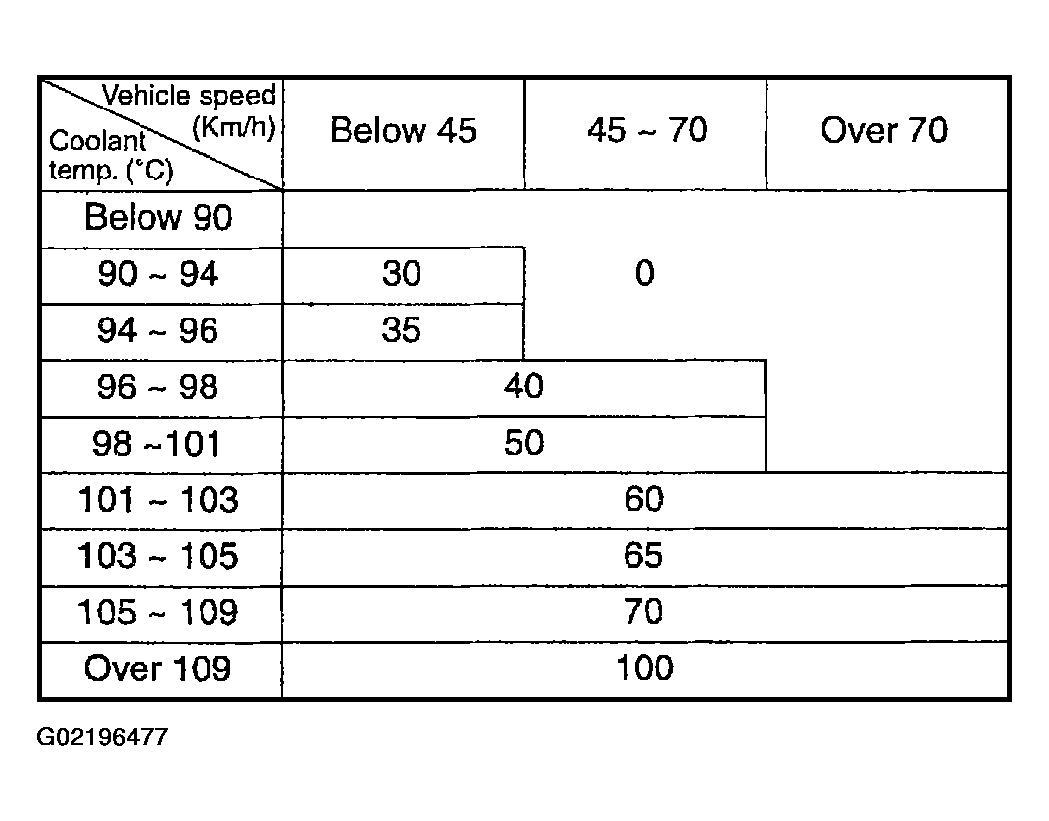

Fig 1: Illustrating Cooling Fan Logic
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
