Engine Control System
›
Troubleshooting
›
Fuel Injector
›
Fuel Injector Circuit
Fuel Injector Circuit

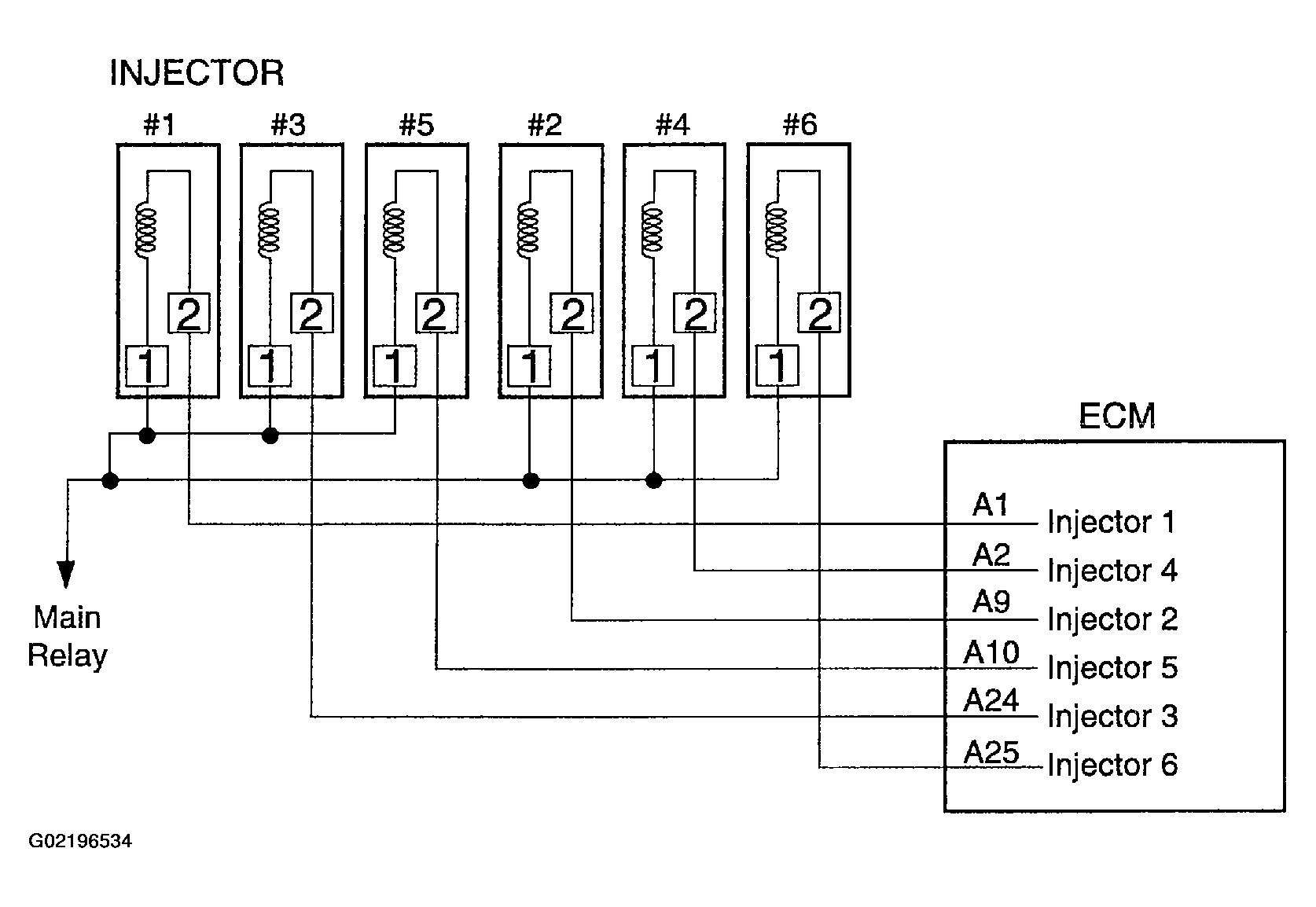

Fig 1: Illustrating Fuel Injector Circuit
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
