Fuel Tank And Fuel Line

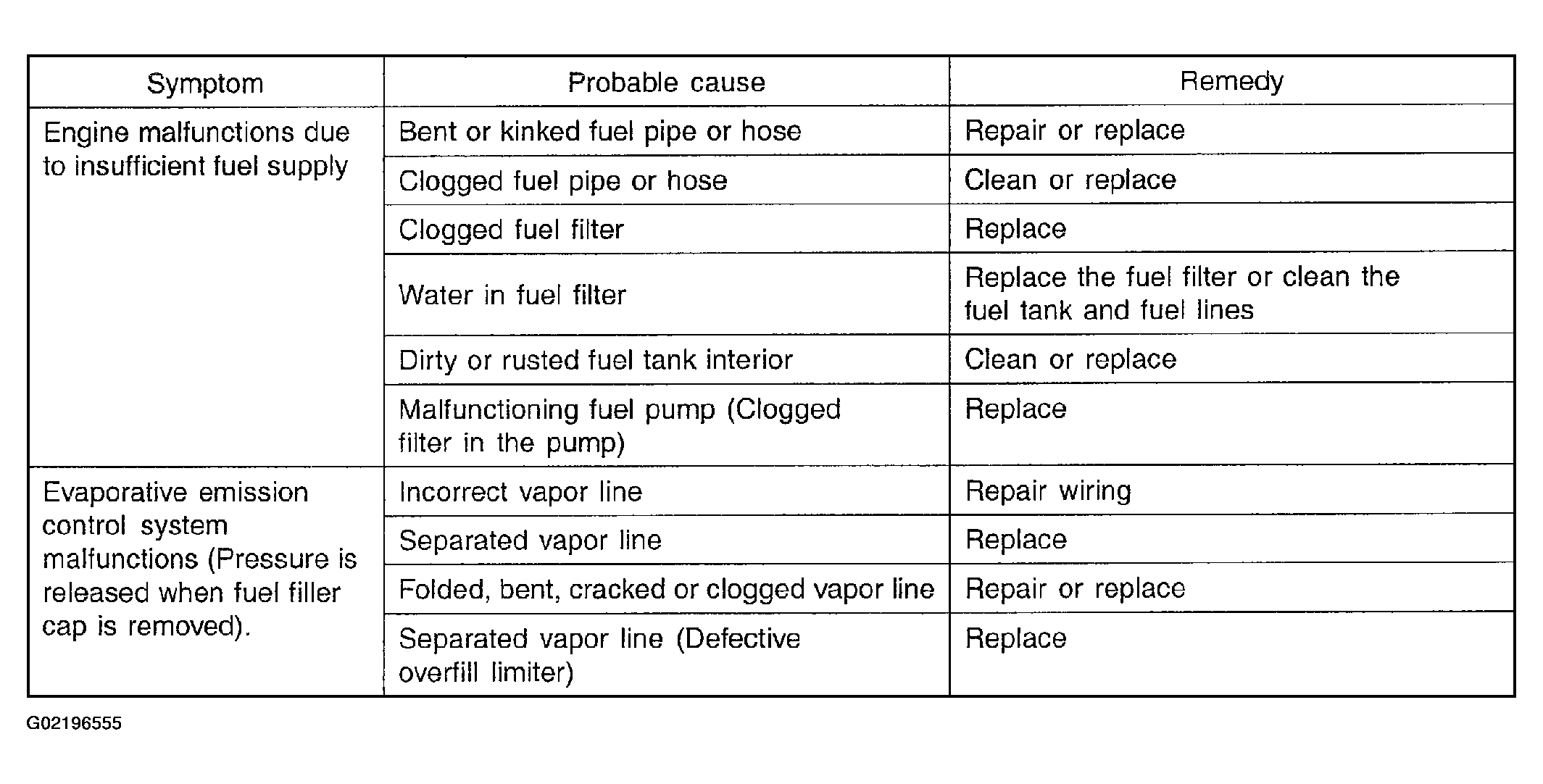

Fig 1: Fuel Tank And Fuel Line Diagnostic Chart
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
