Troubleshooting Guide
Troubleshooting Guide

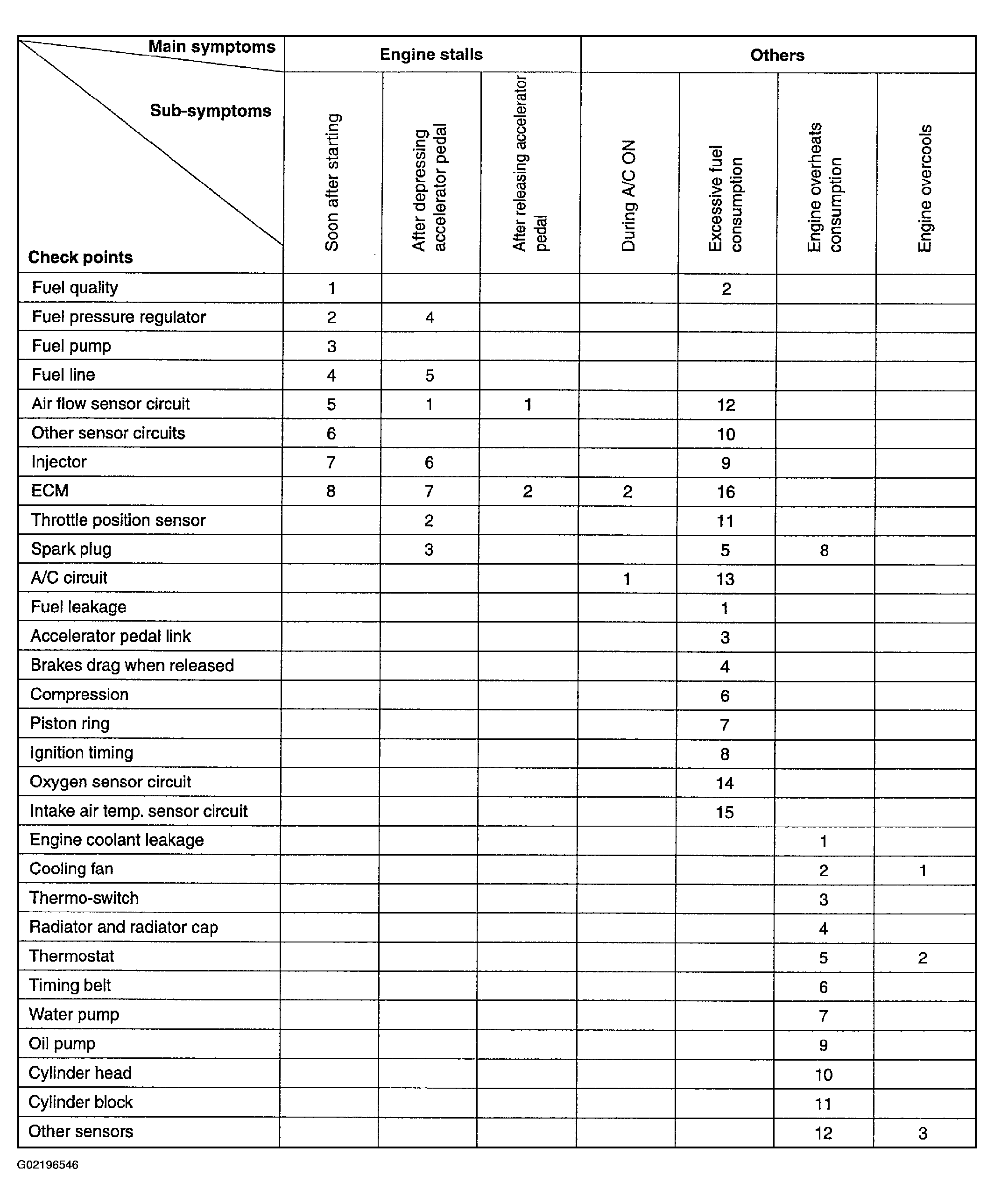

Fig 1: Troubleshooting Guide (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

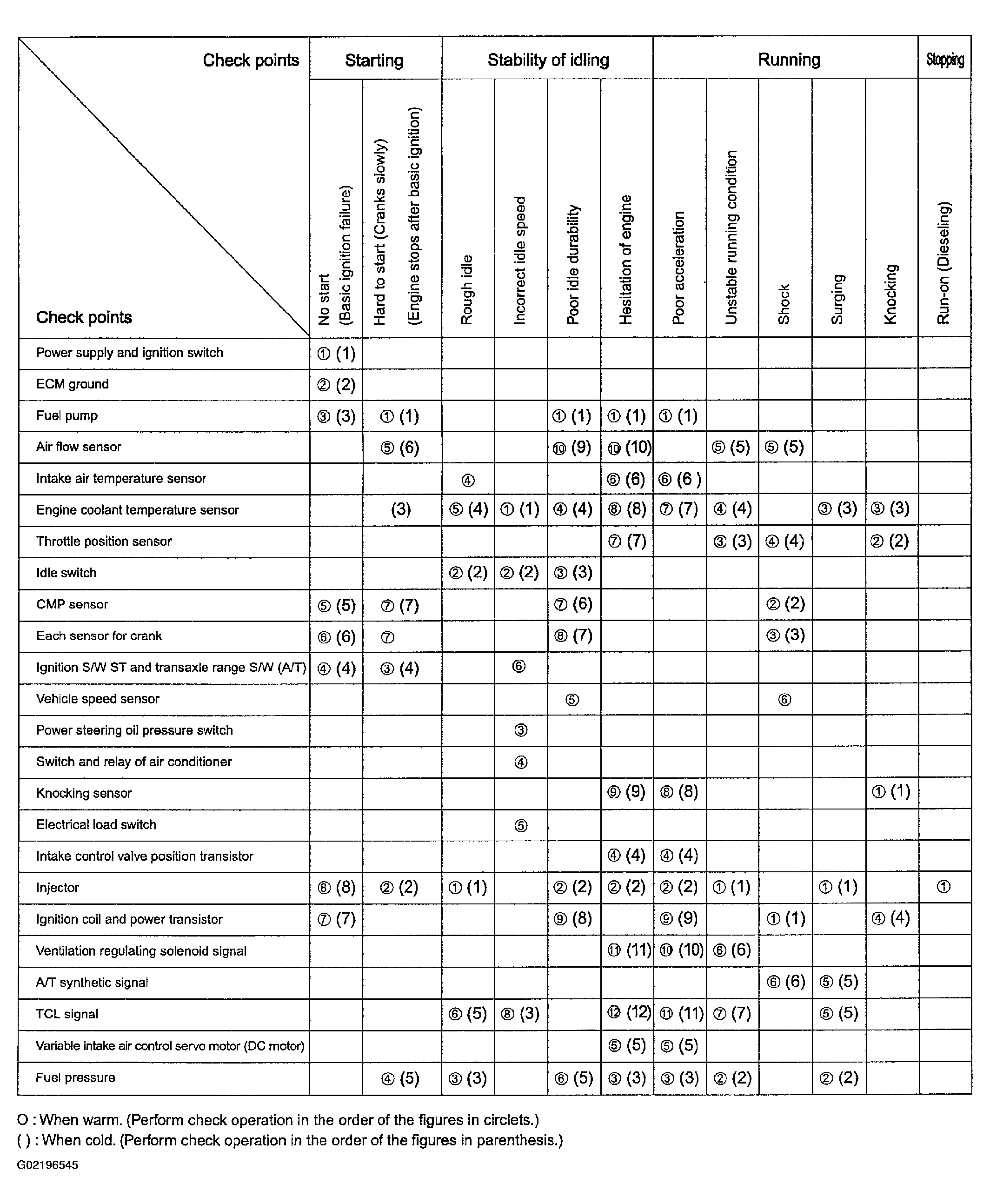

Fig 2: Troubleshooting Guide (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
