Repair and Diagnosis
›
Engine Performance
›
System
›
Engine Control System
›
Troubleshooting
›
Heated Oxygen Sensor (Ho2S)
›
Harness Inspection
Harness Inspection

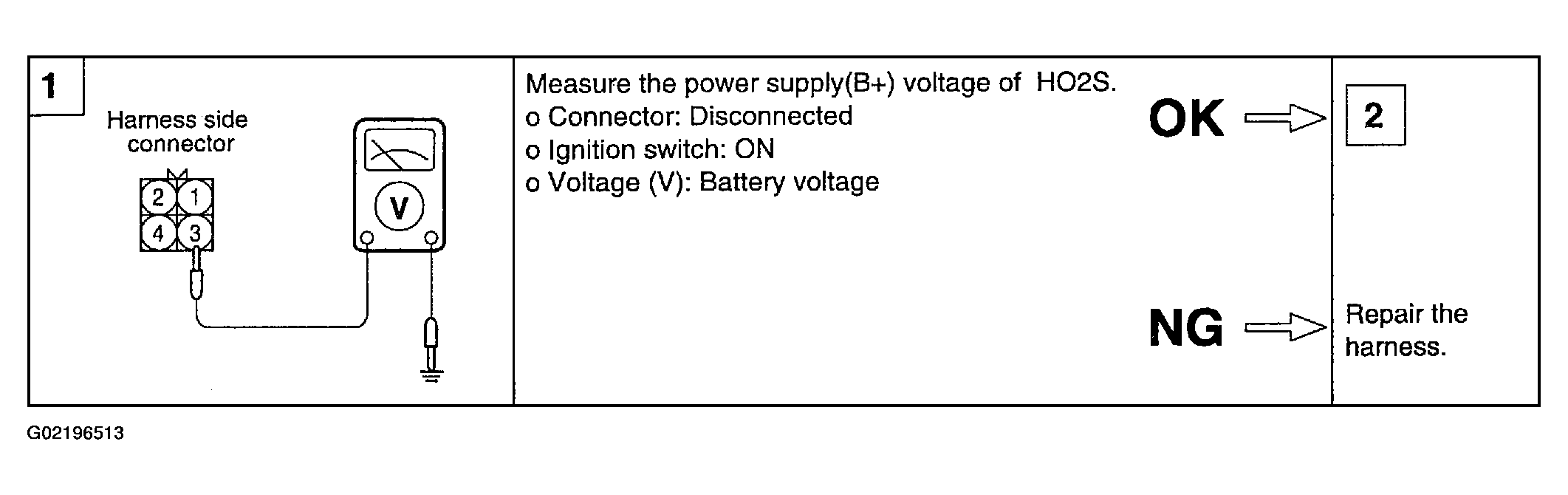

Fig 1: Harness Inspection (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

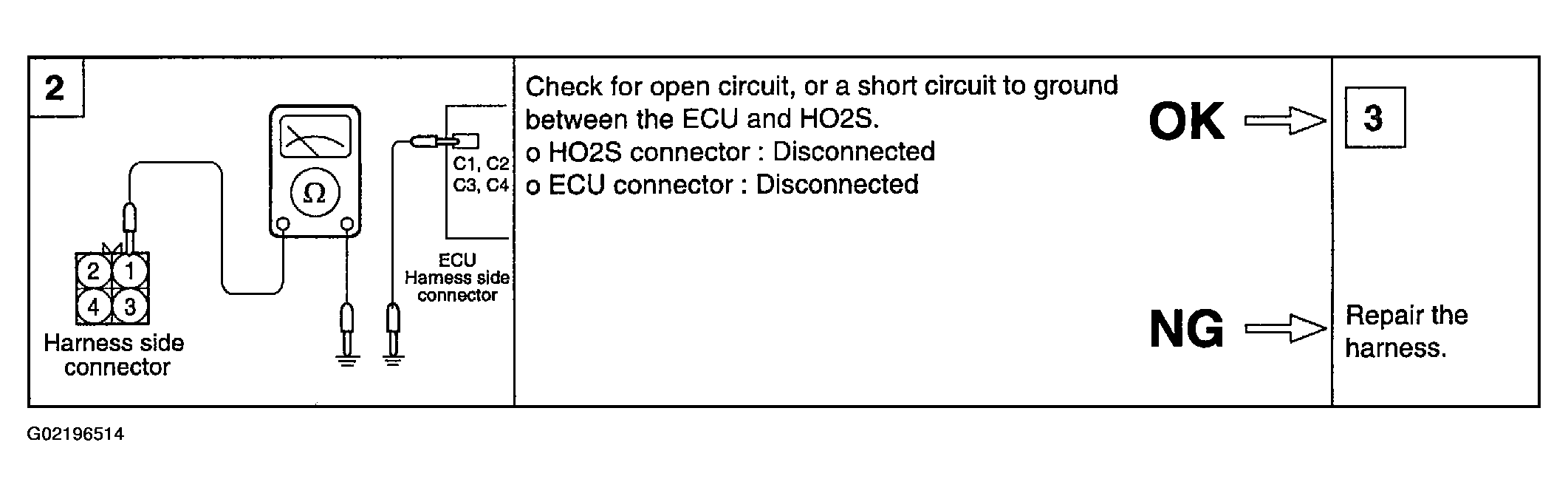

Fig 2: Harness Inspection (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

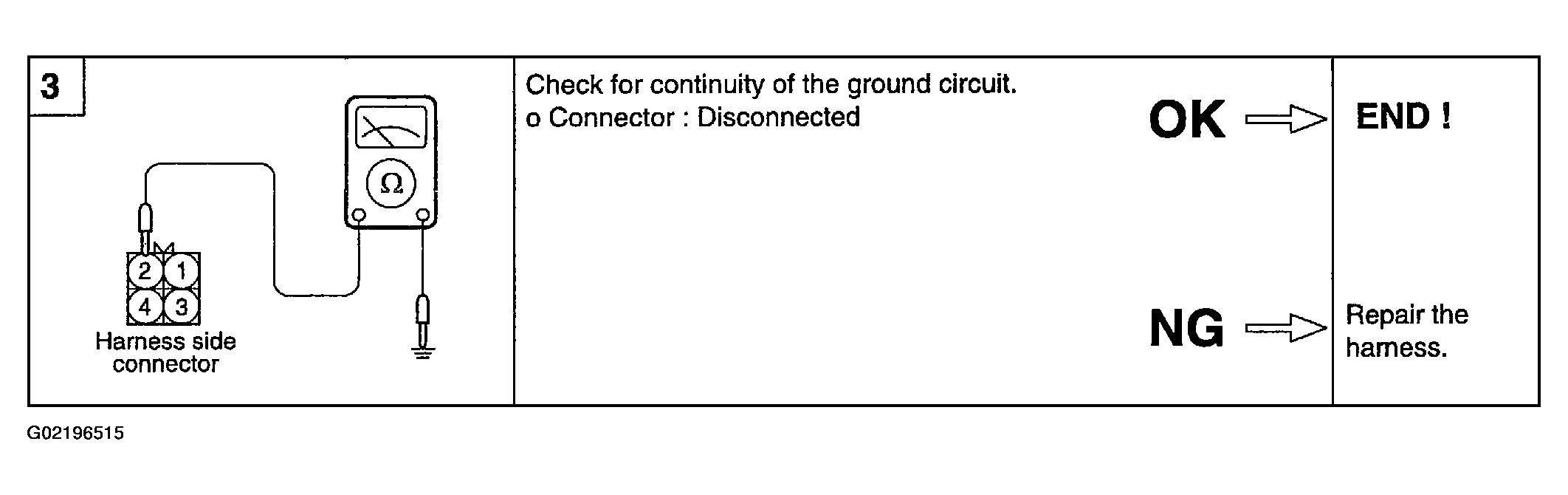

Fig 3: Harness Inspection (3 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
