Abs Operating Modes

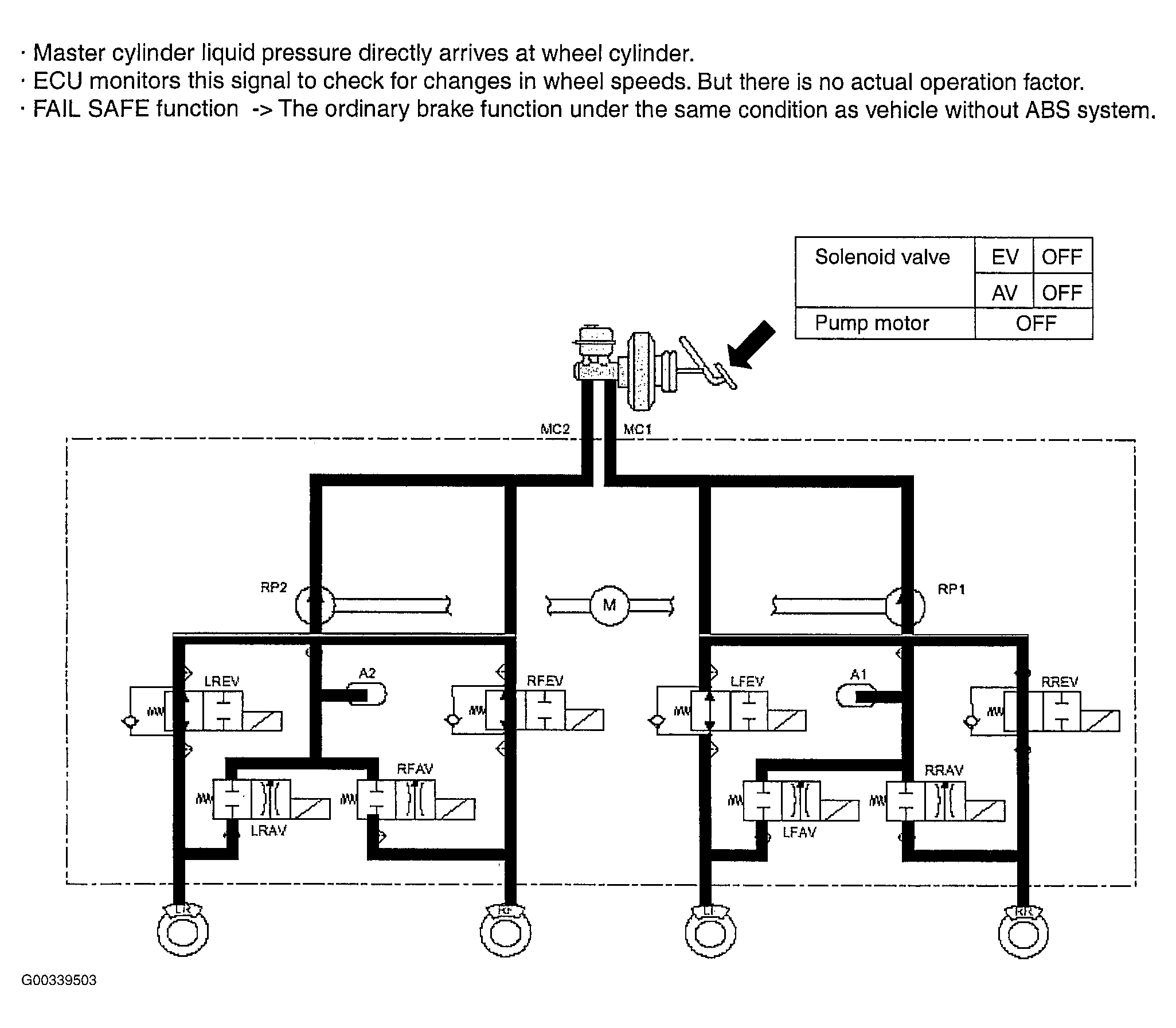

Normal brake (ABS is not operated)

Fig 1: Normal Brake (ABS Is Not Operated) Diagram
Courtesy of KIA MOTORS AMERICA, INC.

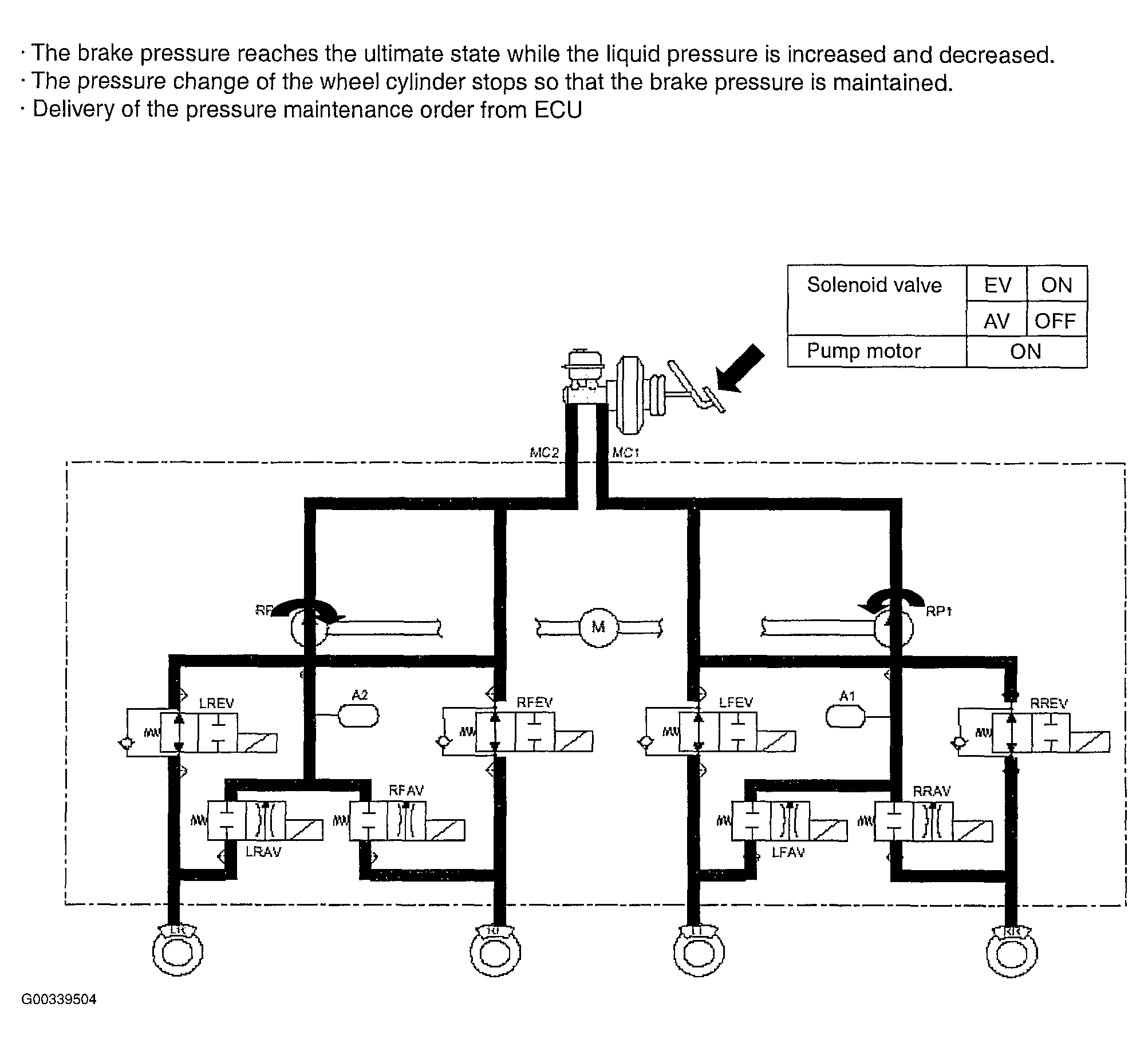

ABS Operating (Maintaining pressure mode)

Fig 2: ABS Operating (Maintaining Pressure Mode) Diagram
Courtesy of KIA MOTORS AMERICA, INC.

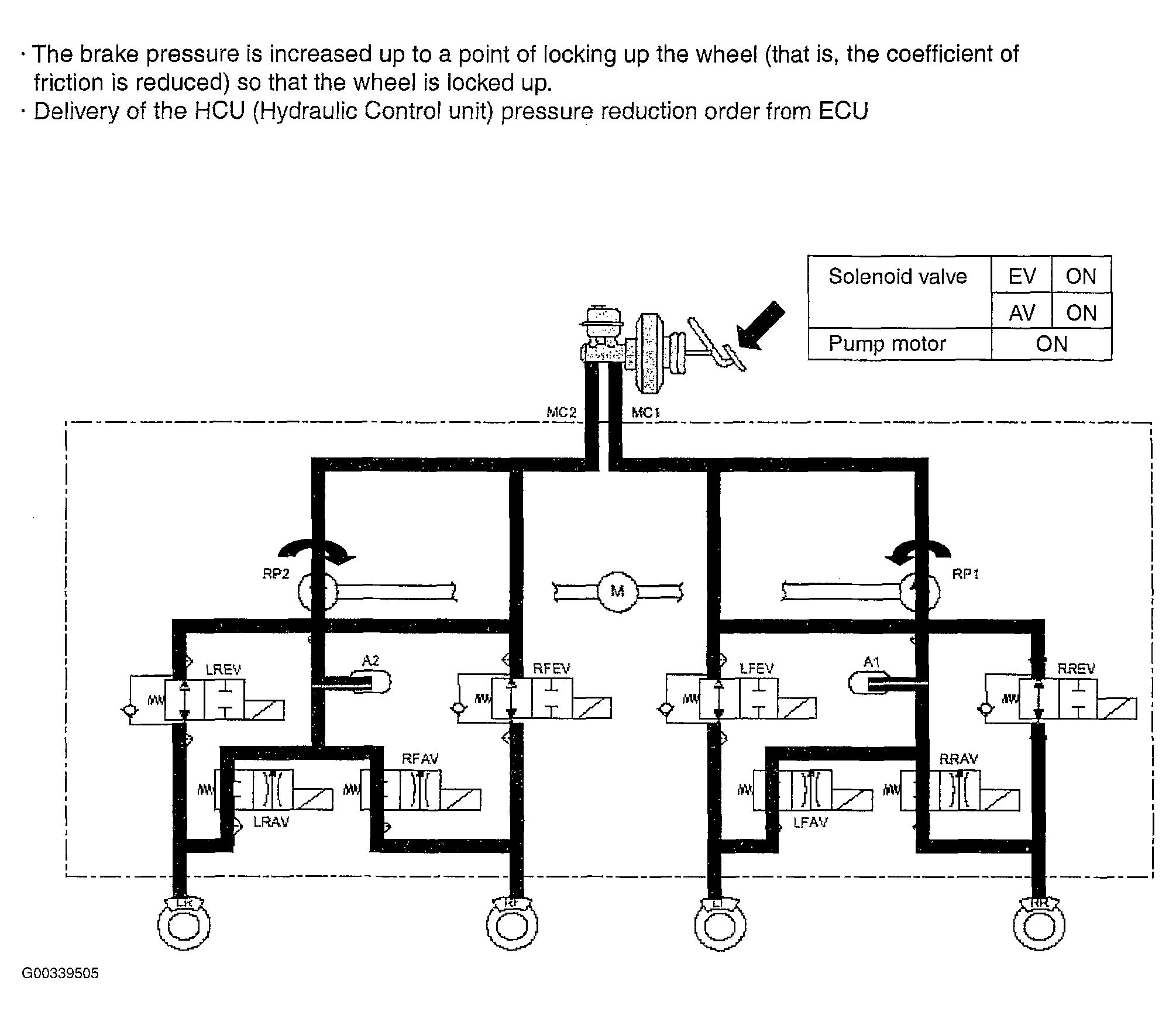

ABS operation (Decreasing pressure mode)

Fig 3: ABS Operation (Decreasing Pressure Mode) Diagram
Courtesy of KIA MOTORS AMERICA, INC.

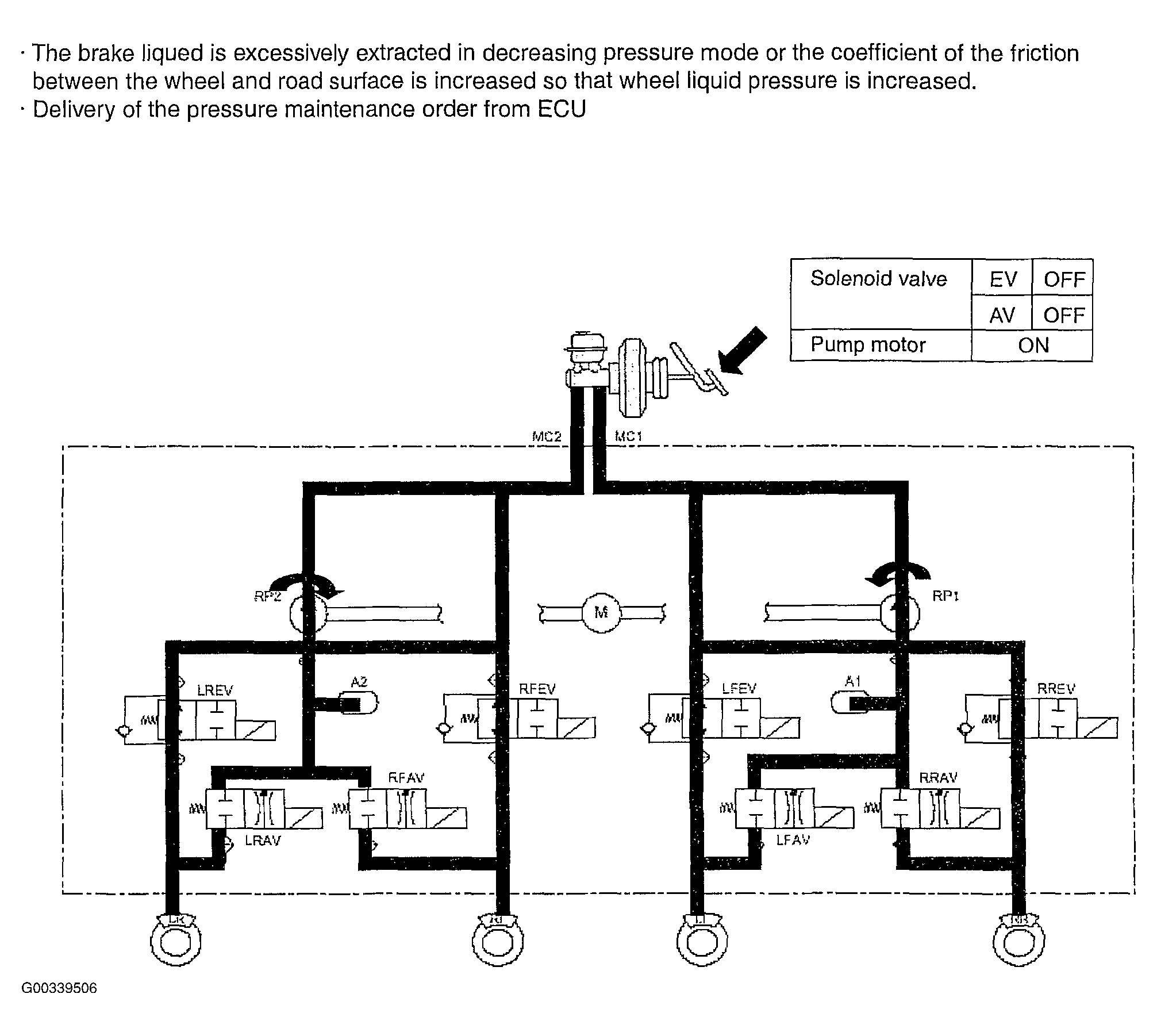

ABS Operation (Increasing pressure mode)

Fig 4: ABS Operation (Increasing Pressure Mode) Diagram

Courtesy of KIA MOTORS AMERICA, INC.
