Abs (Anti-Lock Brake System)
›
Input-Output Specification
Input-Output Specification

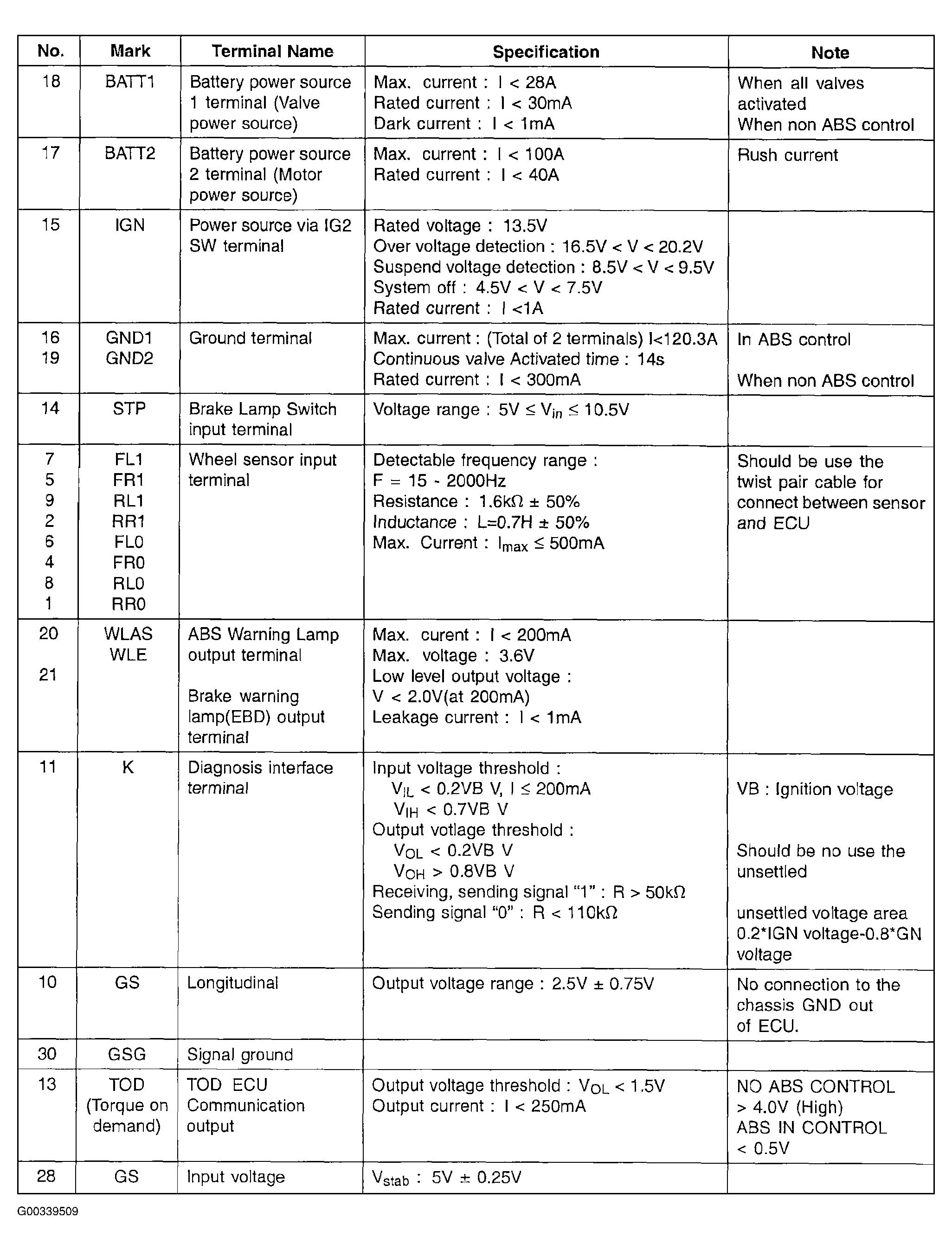

Fig 1: HECU Terminal Pin Input-Output Specifications
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
