General Information: Troubleshooting

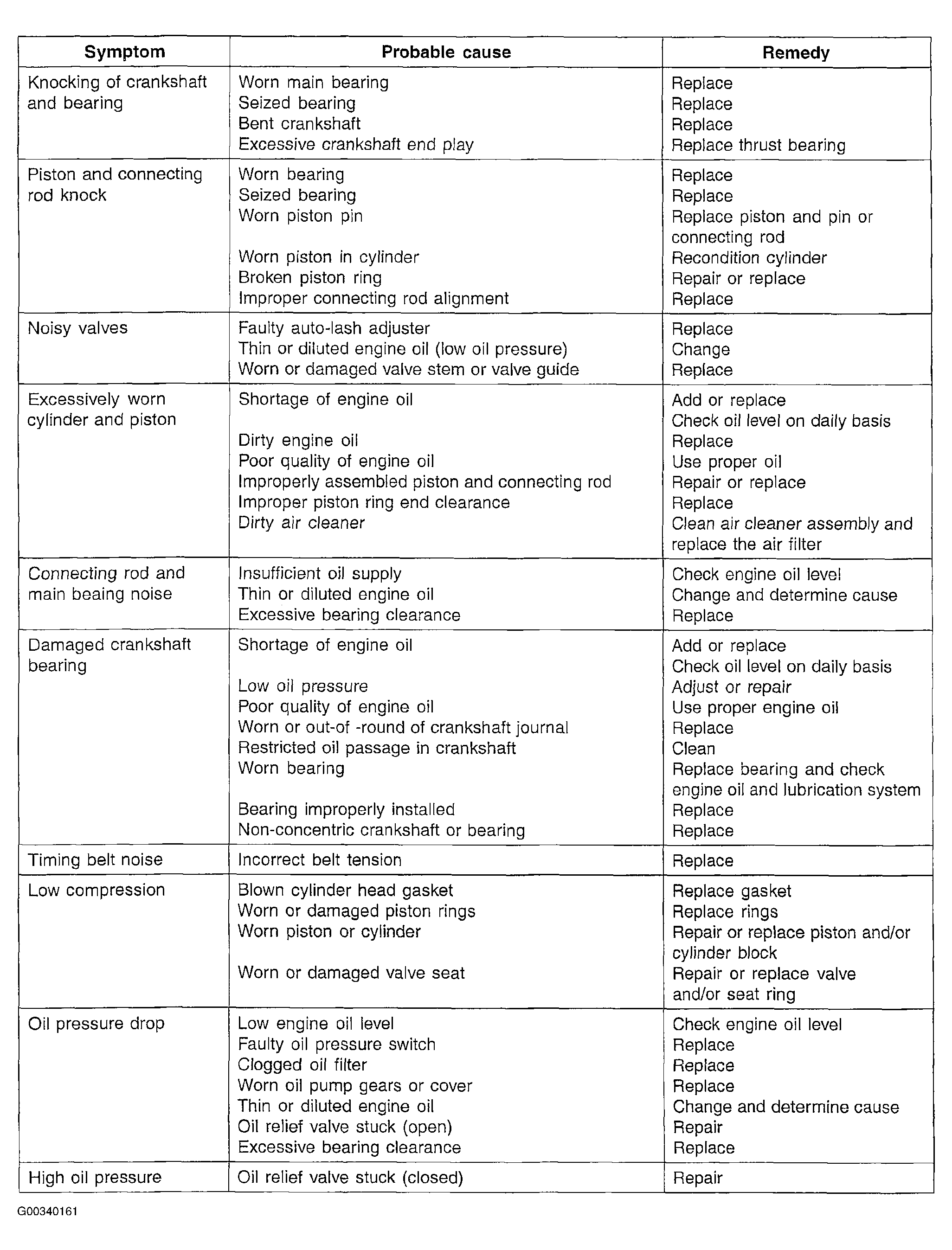

Fig 1: Troubleshooting Symptoms Table (1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

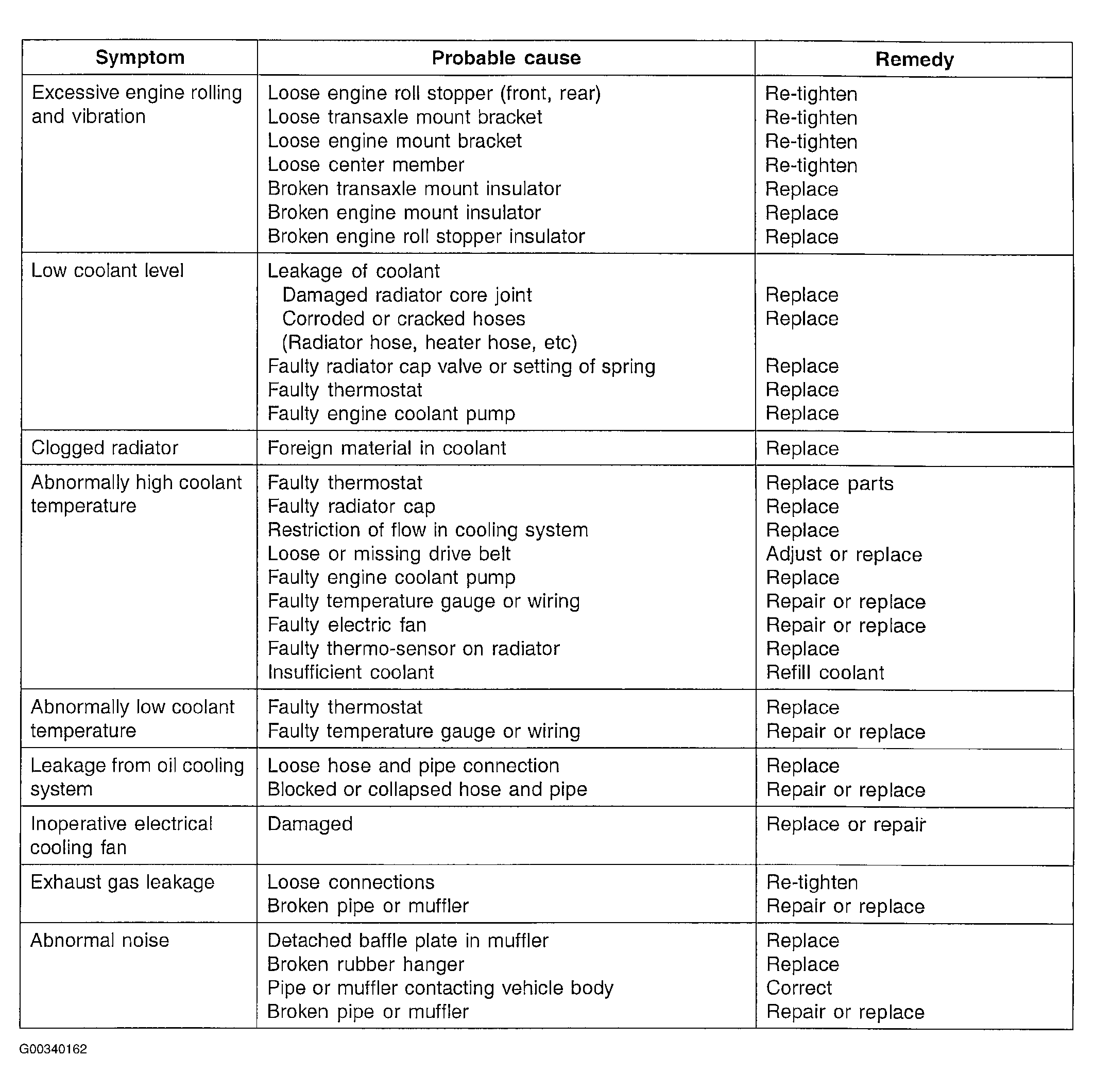

Fig 2: Troubleshooting Symptoms Table (2 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.
