Ecu Input/Output Check Sheet: A-Connector

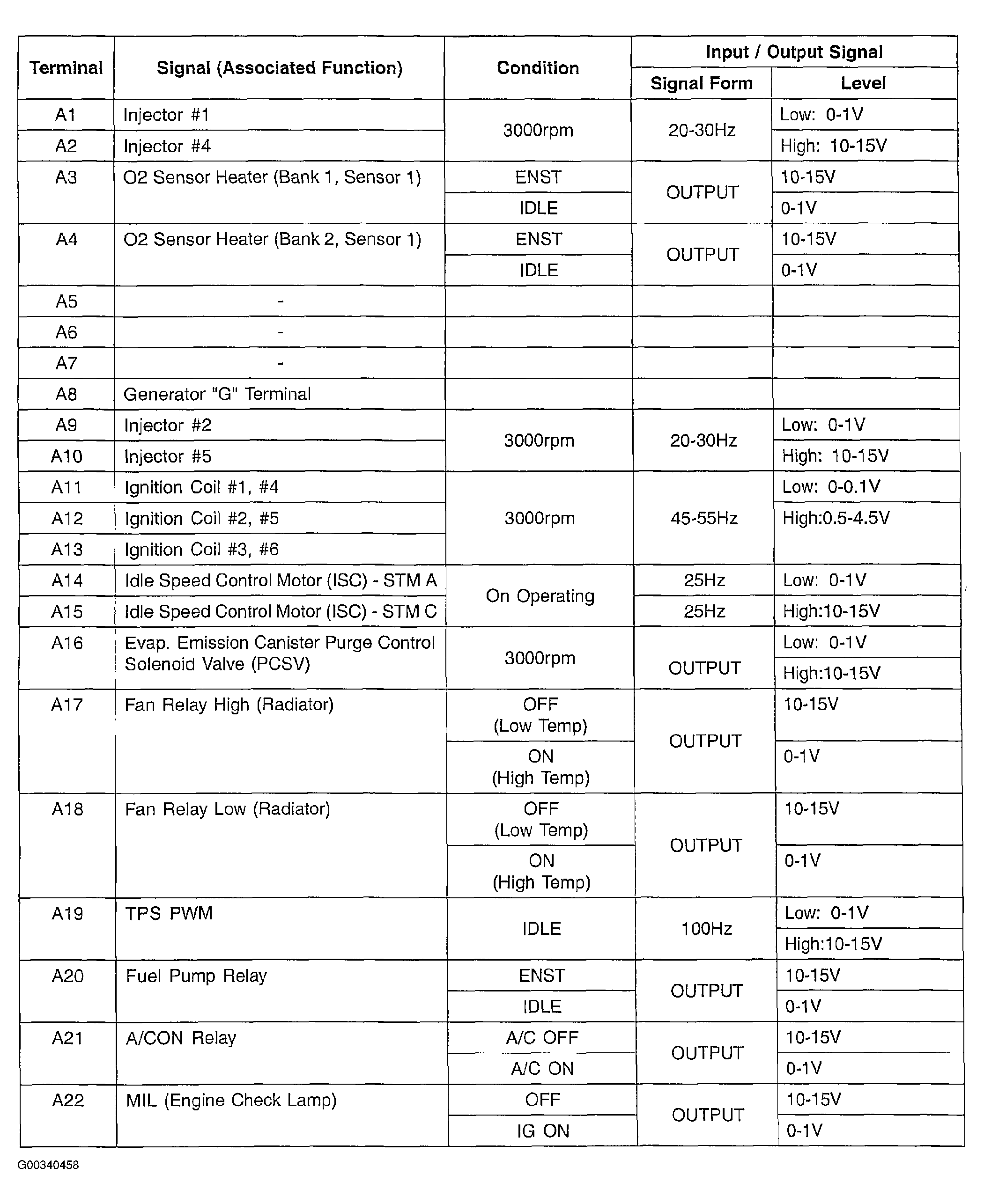

Fig 1: Identifying ECU A-Connector Terminal Input/Output Check Sheet (1 Of 2)
G00340458Courtesy of KIA MOTORS AMERICA, INC.

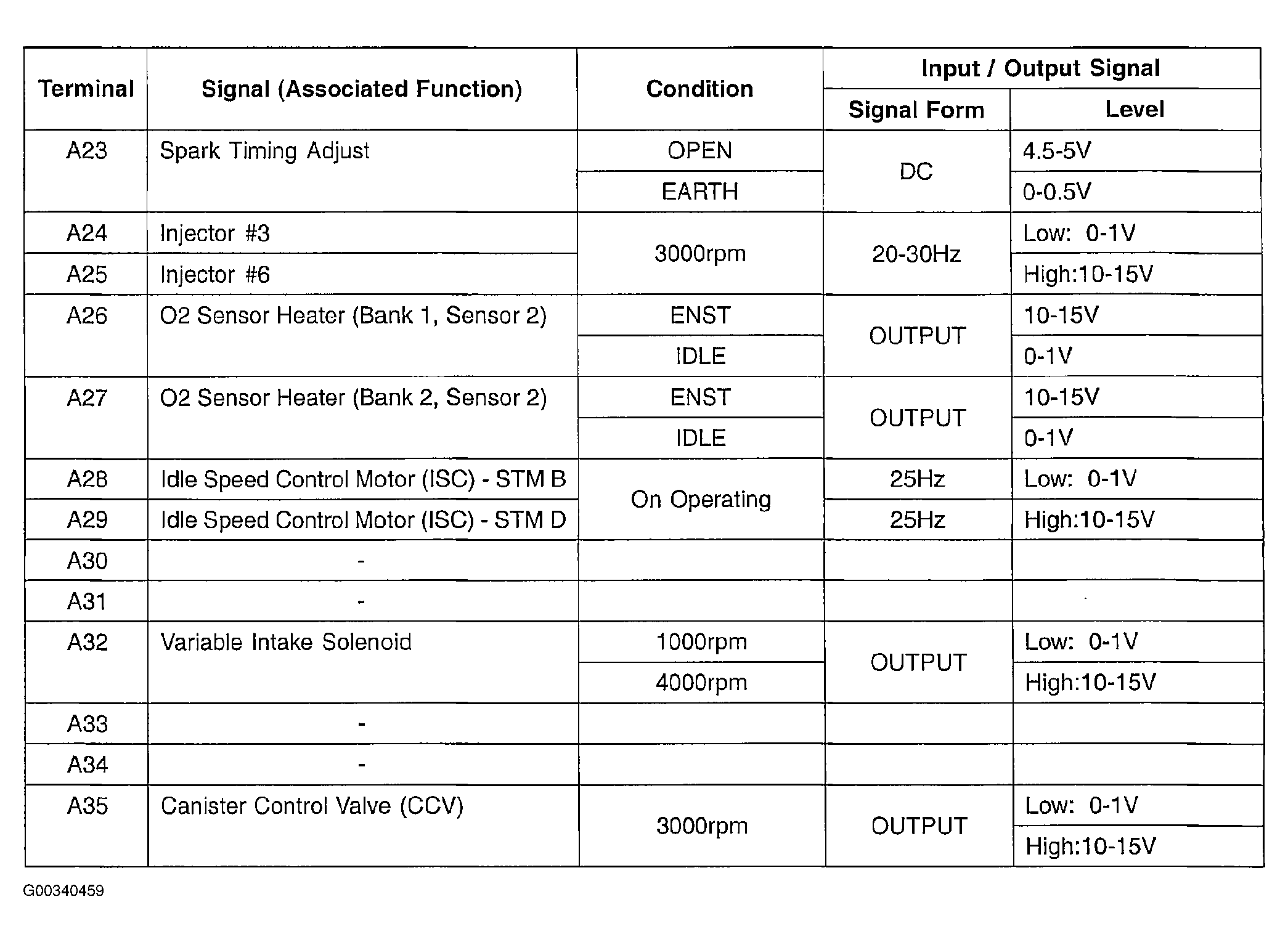

Fig 2: Identifying ECU A-Connector Terminal Input/Output Check Sheet (2 Of 2)
G00340459Courtesy of KIA MOTORS AMERICA, INC.
