Kia
›
2005
›
Sorento EX, 4WD, Part Time
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Fuel System & Fault Isolation
›
MFI Control System
›
Engine Control Unit (Ecu)
›
Ecu Input/Output Check Sheet
›
C-Connector
Ecu Input/Output Check Sheet: C-Connector

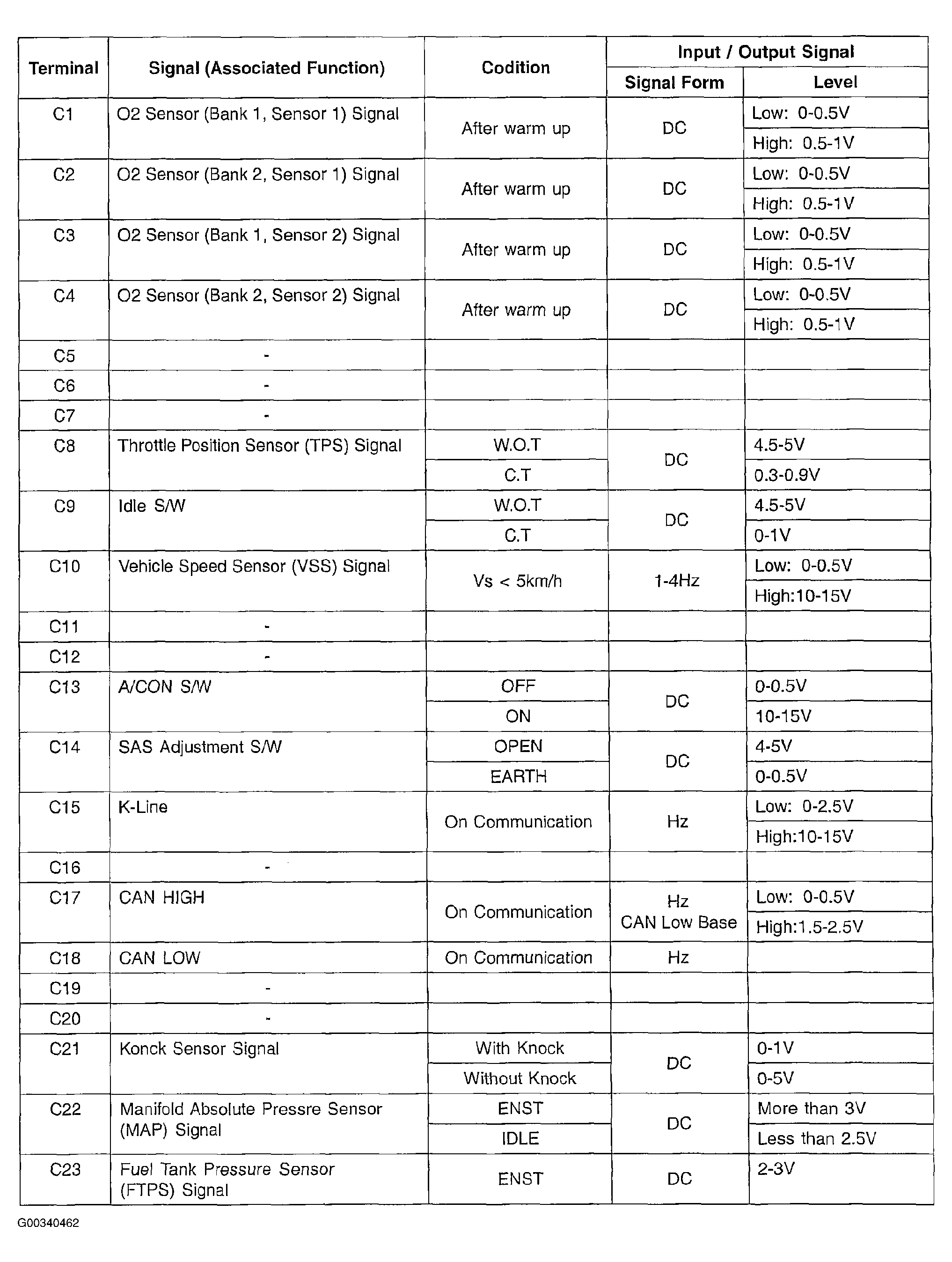

Fig 1: Identifying ECU C-Connector Terminal Input/Output Check Sheet (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

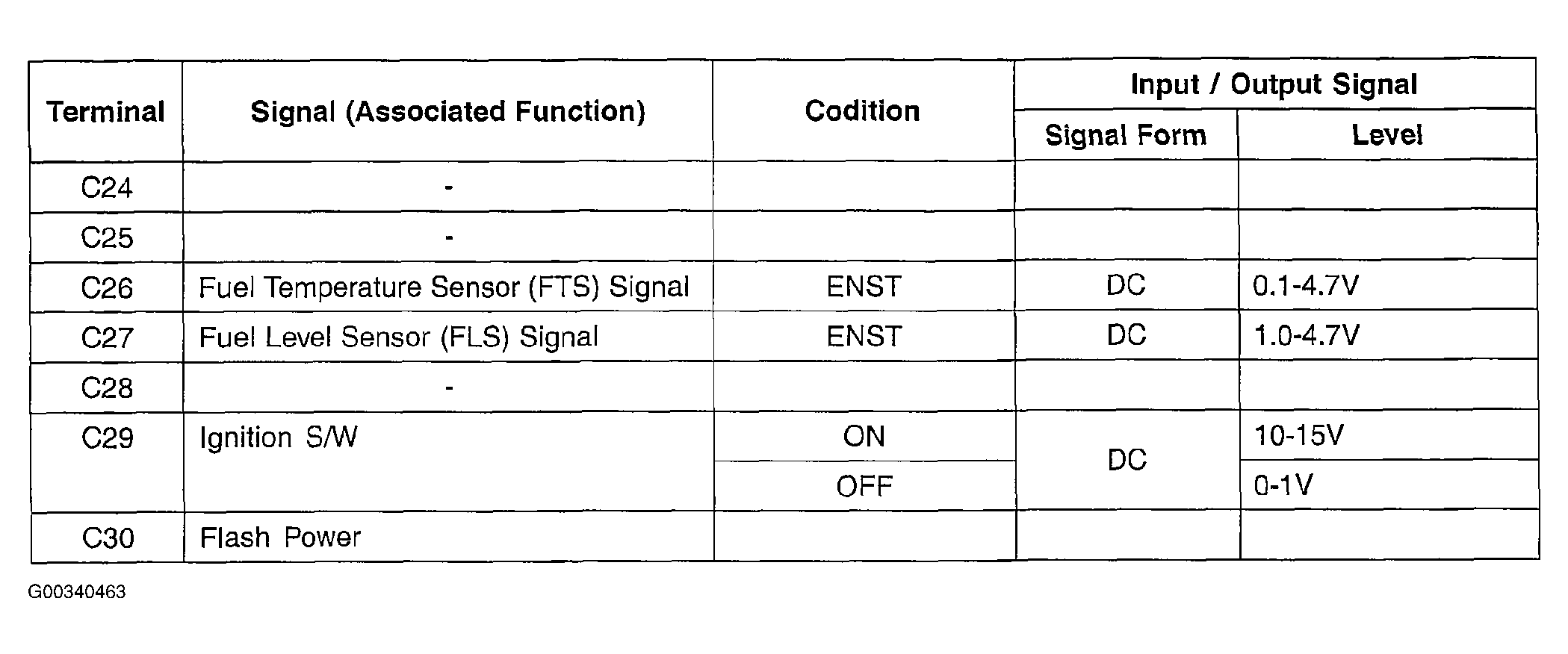

Fig 2: Identifying ECU C-Connector Terminal Input/Output Check Sheet (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
