Sorento EX, 4WD, Part Time
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Fuel System & Fault Isolation
›
MFI Control System
›
Fuel Injector
›
Harness Inspection Procedures
Harness Inspection Procedures

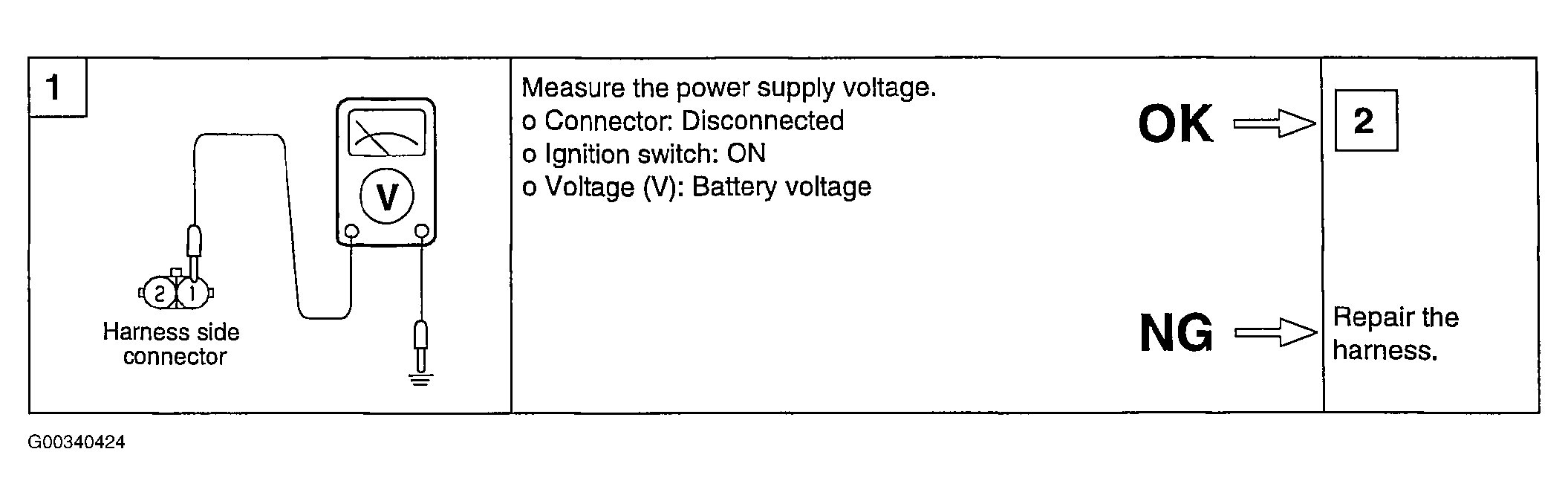

Fig 1: Fuel Injector Harness Inspection Procedure No. 1
Courtesy of KIA MOTORS AMERICA, INC.

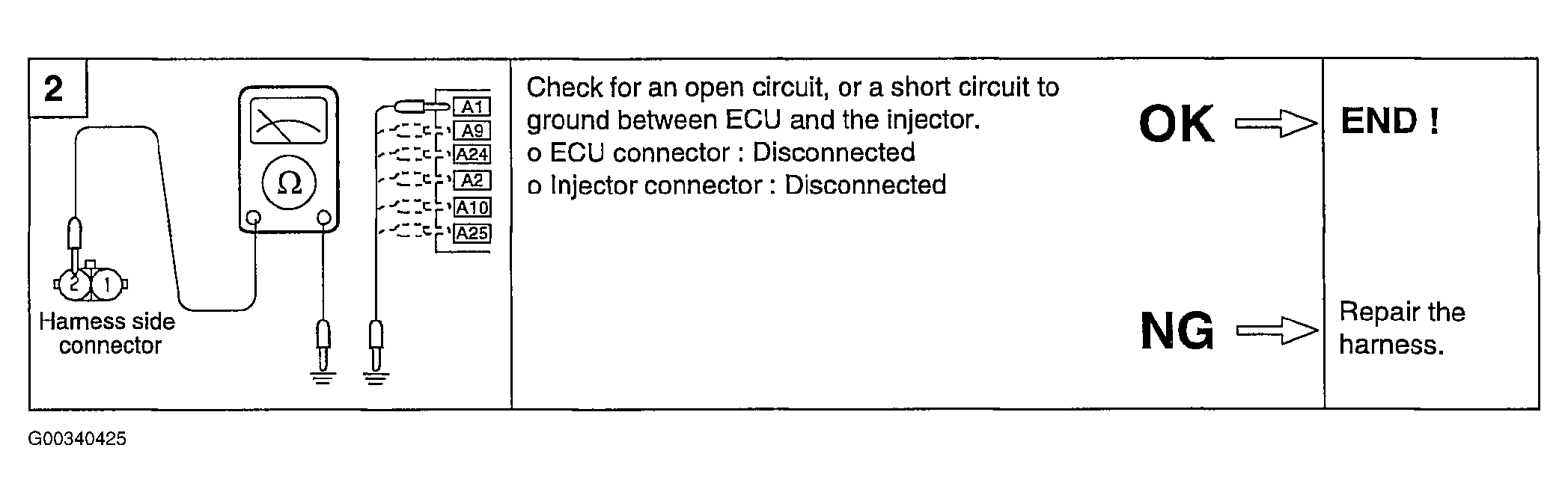

Fig 2: Fuel Injector Harness Inspection Procedure No. 2
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
