Kia
›
2005
›
Sorento EX, 4WD, Part Time
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Fuel System & Fault Isolation
›
MFI Control System
›
Manifold Absolute Pressure (Map) Sensor
›
Harness Inspection Procedure
Harness Inspection Procedure

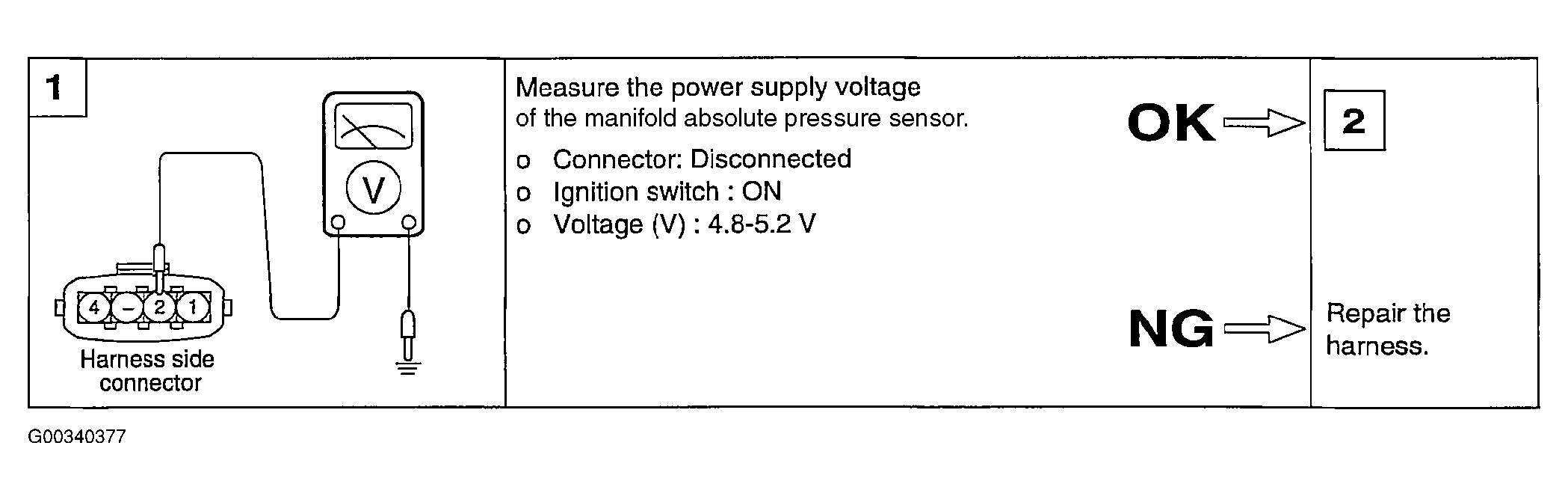

Fig 1: MAP Sensor Harness Inspection Procedure No. 1
Courtesy of KIA MOTORS AMERICA, INC.

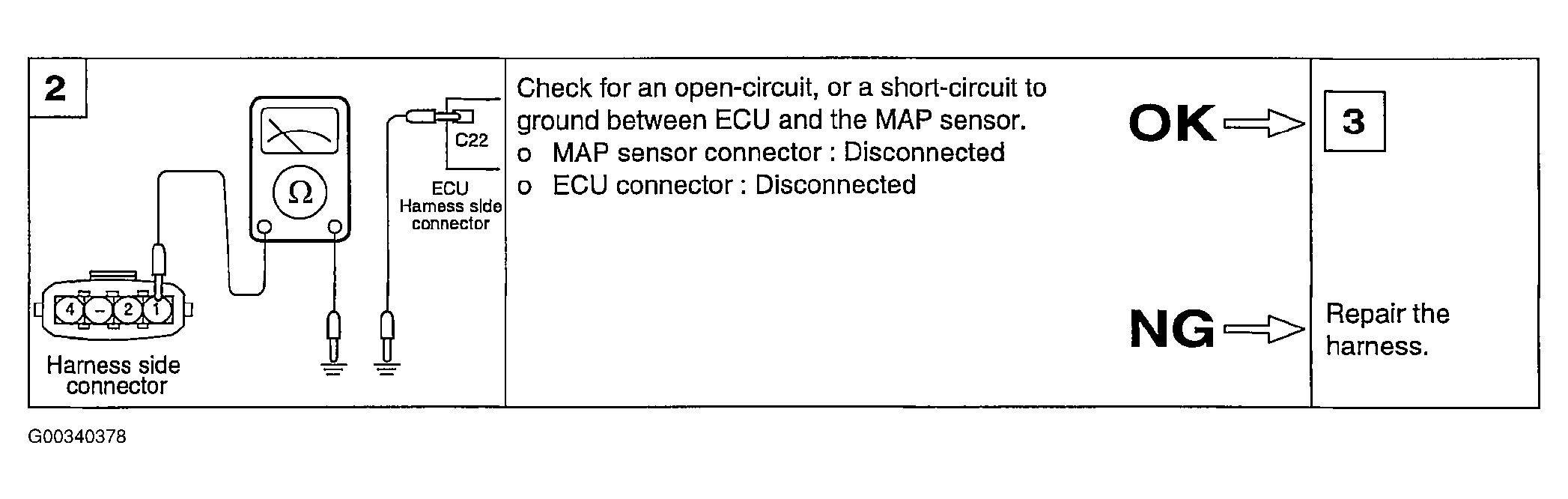

Fig 2: MAP Sensor Harness Inspection Procedure No. 2
Courtesy of KIA MOTORS AMERICA, INC.

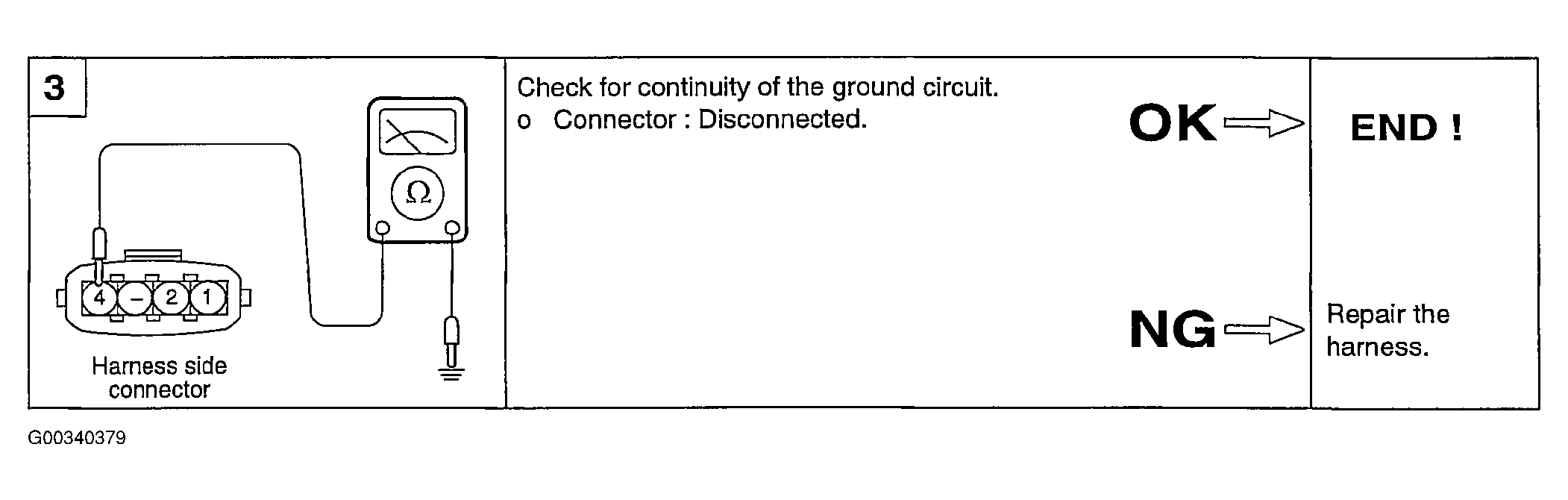

Fig 3: MAP Sensor Harness Inspection Procedure No. 3
Courtesy of KIA MOTORS AMERICA, INC.
