Ring & LIPSEAL Location And Part Number
›
Notes
Ring & LIPSEAL Location And Part Number: Notes

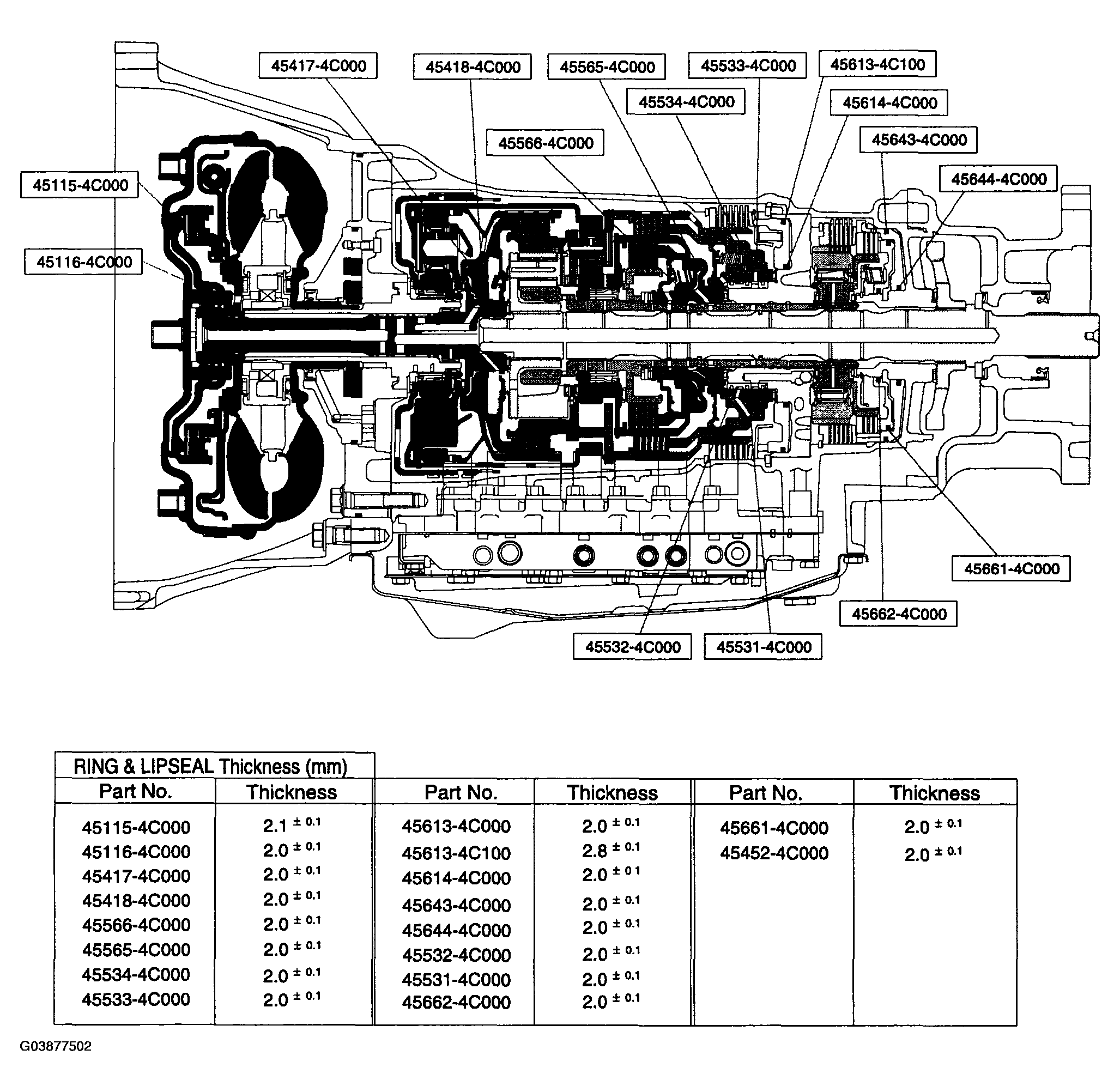

Fig 1: Identifying Ring & Lipseal Location And Part Number
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
