Home › Kia › 2005 › Sorento EX, RWD › Repair and Diagnosis › Transmission › Automatic Trans › Automatic Transaxle System › Component

Automatic Transaxle System: Component

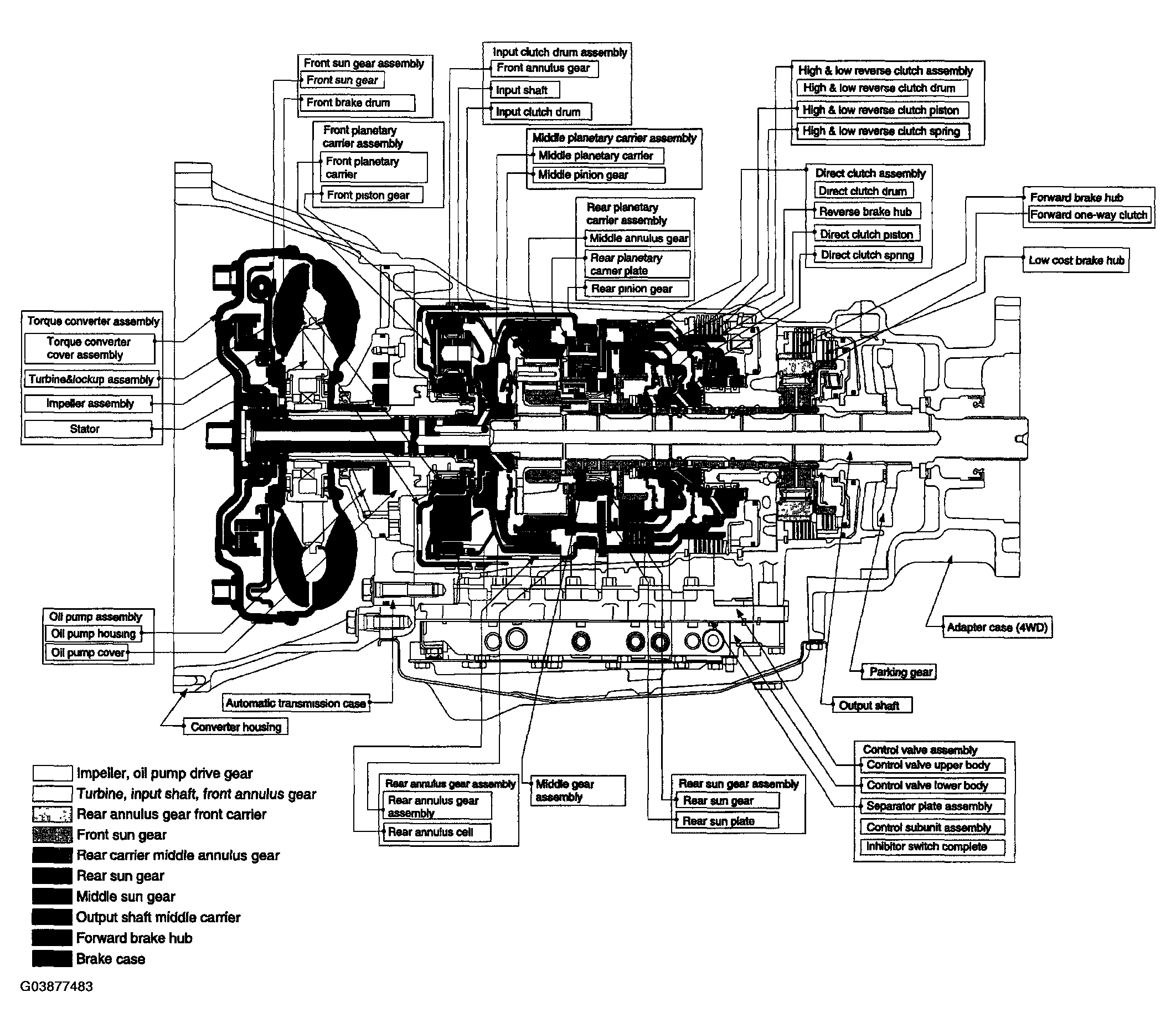

Fig 1: Identifying Components Automatic Transmission (A5SR1)
G03877483Courtesy of KIA MOTORS AMERICA, INC.
