Shift Control System Diagram

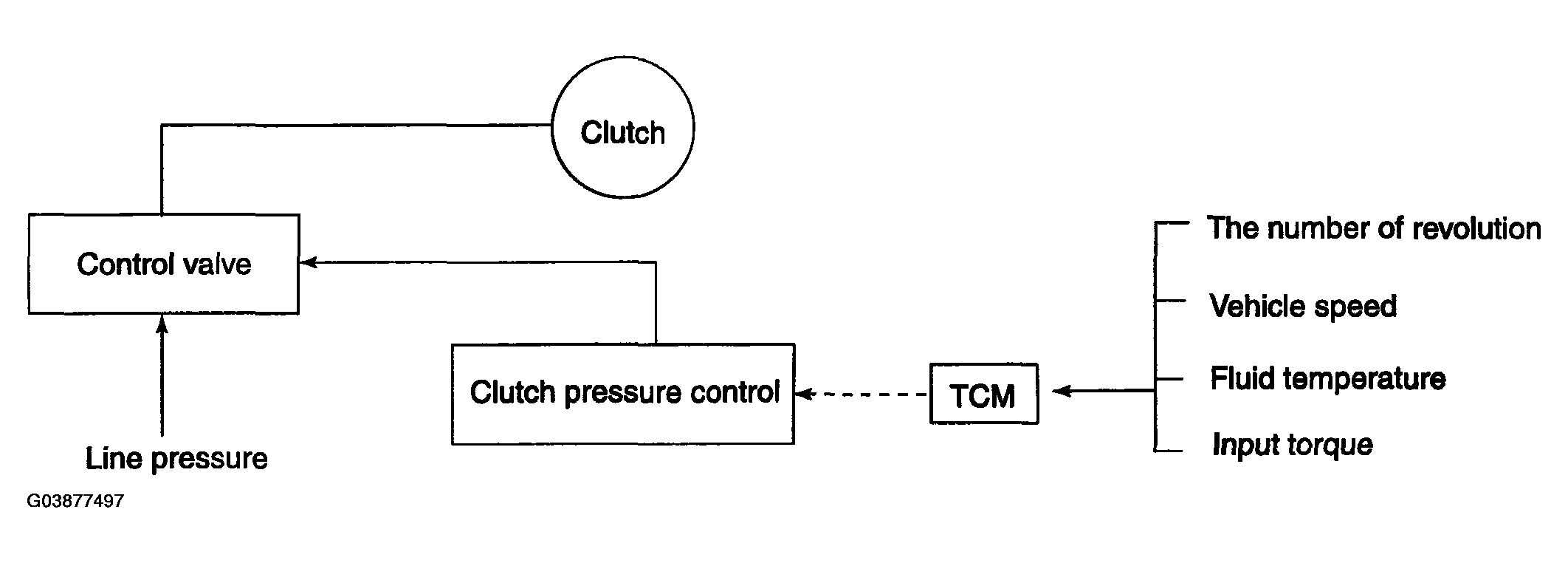

Fig 1: Shift Control System Diagram
G03877497Courtesy of KIA MOTORS AMERICA, INC.

Shift description

Controls clutches with optimum timing and fluid pressure in response to engine

speed, engine torque information, and etc.
