Test 1: Communication With Scan Tool Is Not Possible (Cannot Communicate With Any System)

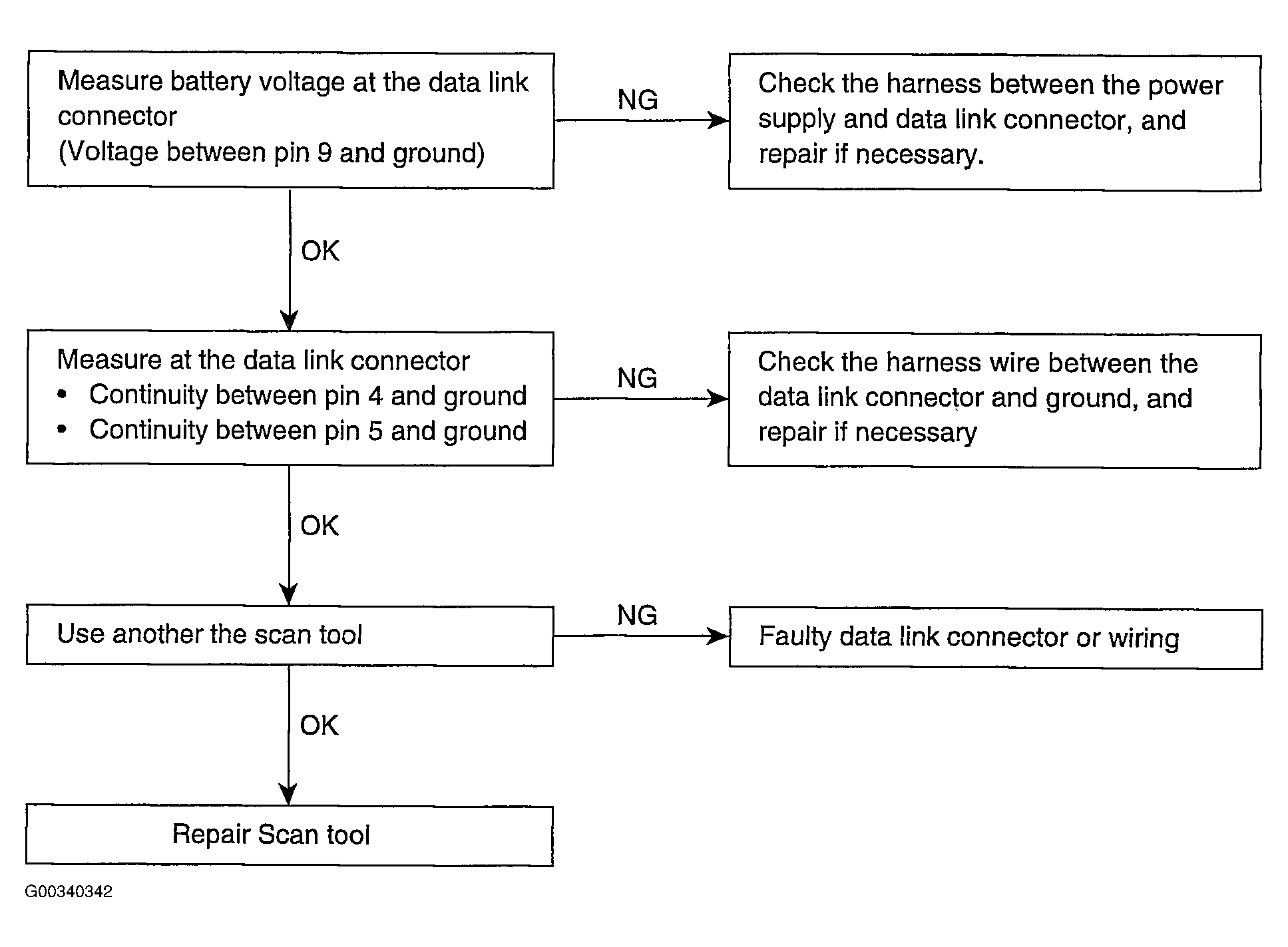

Fig 1: Test 1: Diagnostic Flow Chart
G00340342Courtesy of KIA MOTORS AMERICA, INC.
