A/T Control Relay Connector End View
A/T Control Relay Connector End View

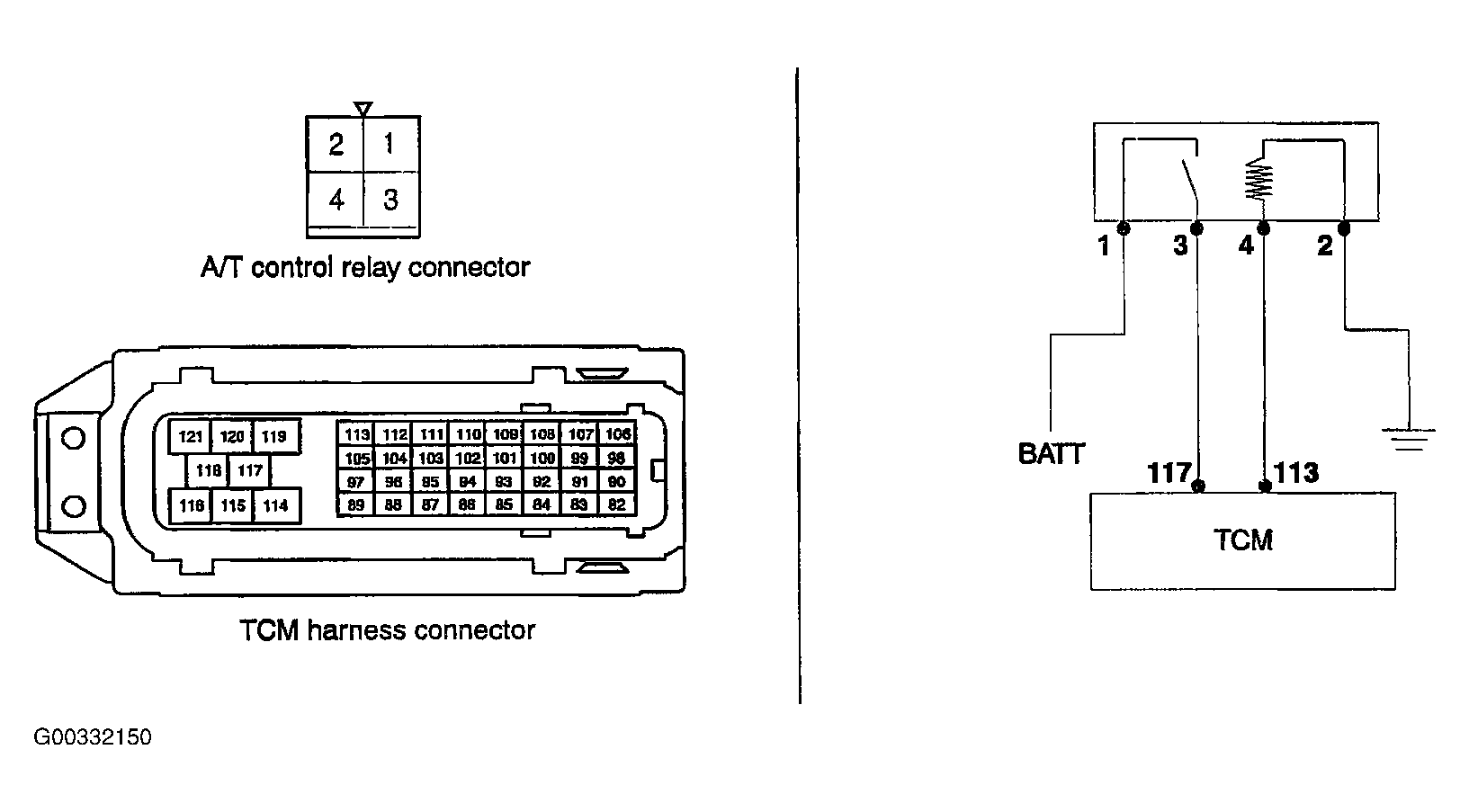

Fig 1: A/T Control Relay Connector End View
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
