Input Shaft Speed Sensor Connector End View
Input Shaft Speed Sensor Connector End View

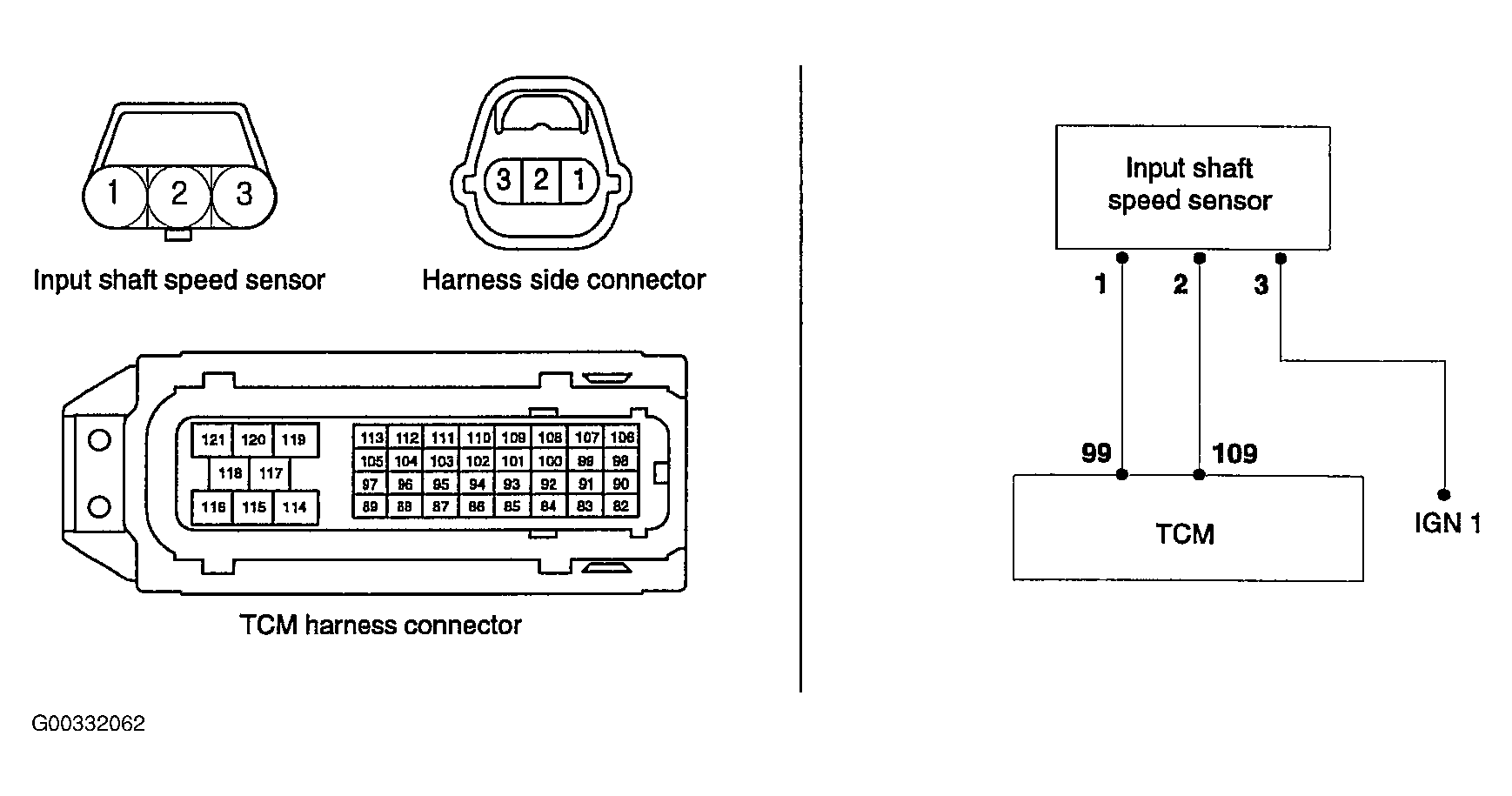

Fig 1: Input Shaft Speed Sensor Connector End View
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
