Output Shaft Speed Sensor Connector End View
Output Shaft Speed Sensor Connector End View

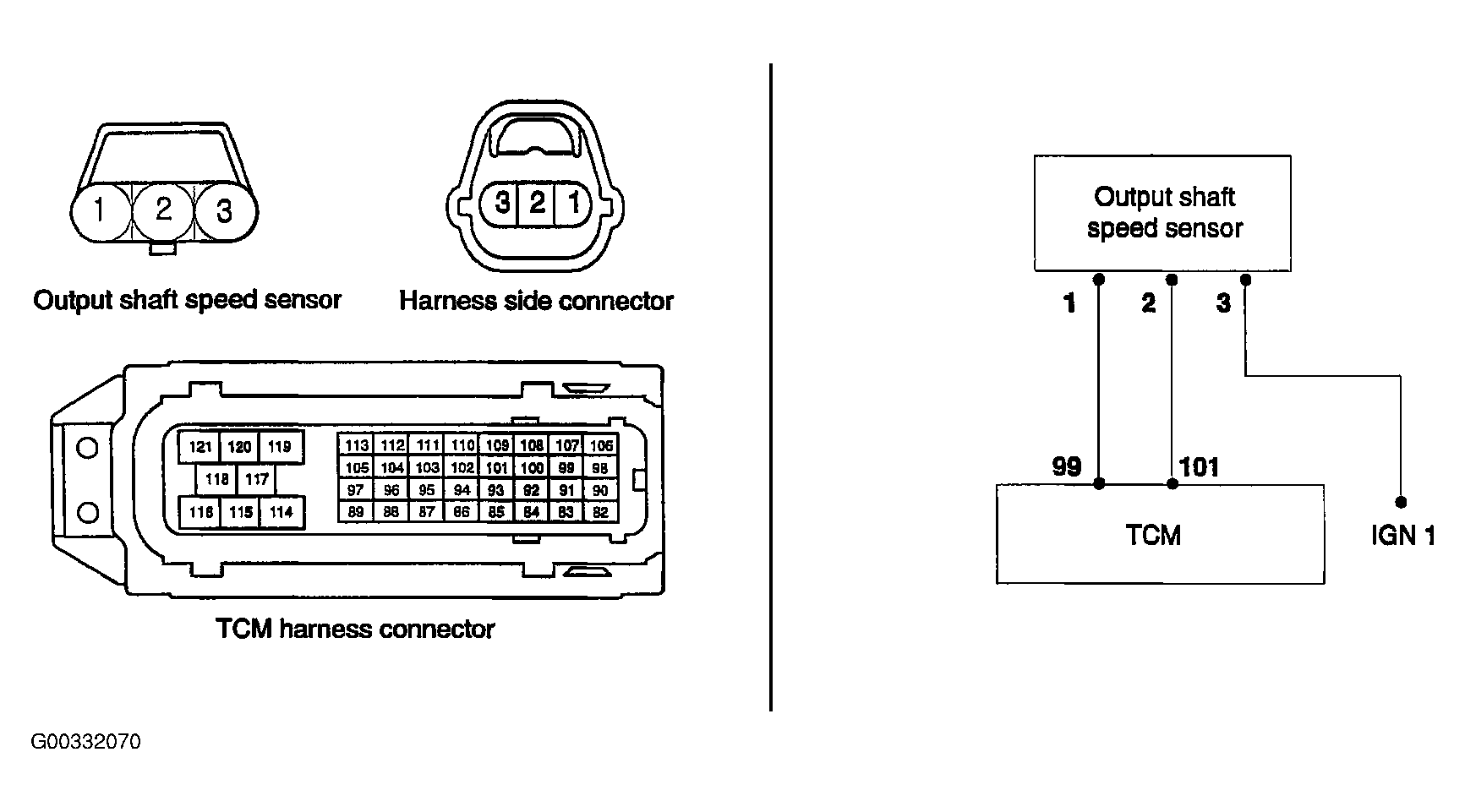

Fig 1: Output Shaft Speed Sensor Connector End View
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
