DTC P2195: O2 Sensor Signal Stuck Lean (Bank 1 Sensor 1): DTC Detecting Condition

  1. DTC Description

    The ECM monitors the sensor characteristic line of front HO2S signal and sets DTC P2195 if the sensor characteristic line has a shift to lean.

    If the same error code is set in the next driving cycle, the ECM illuminates the MIL.

  2. Conditions for Setting the DTC

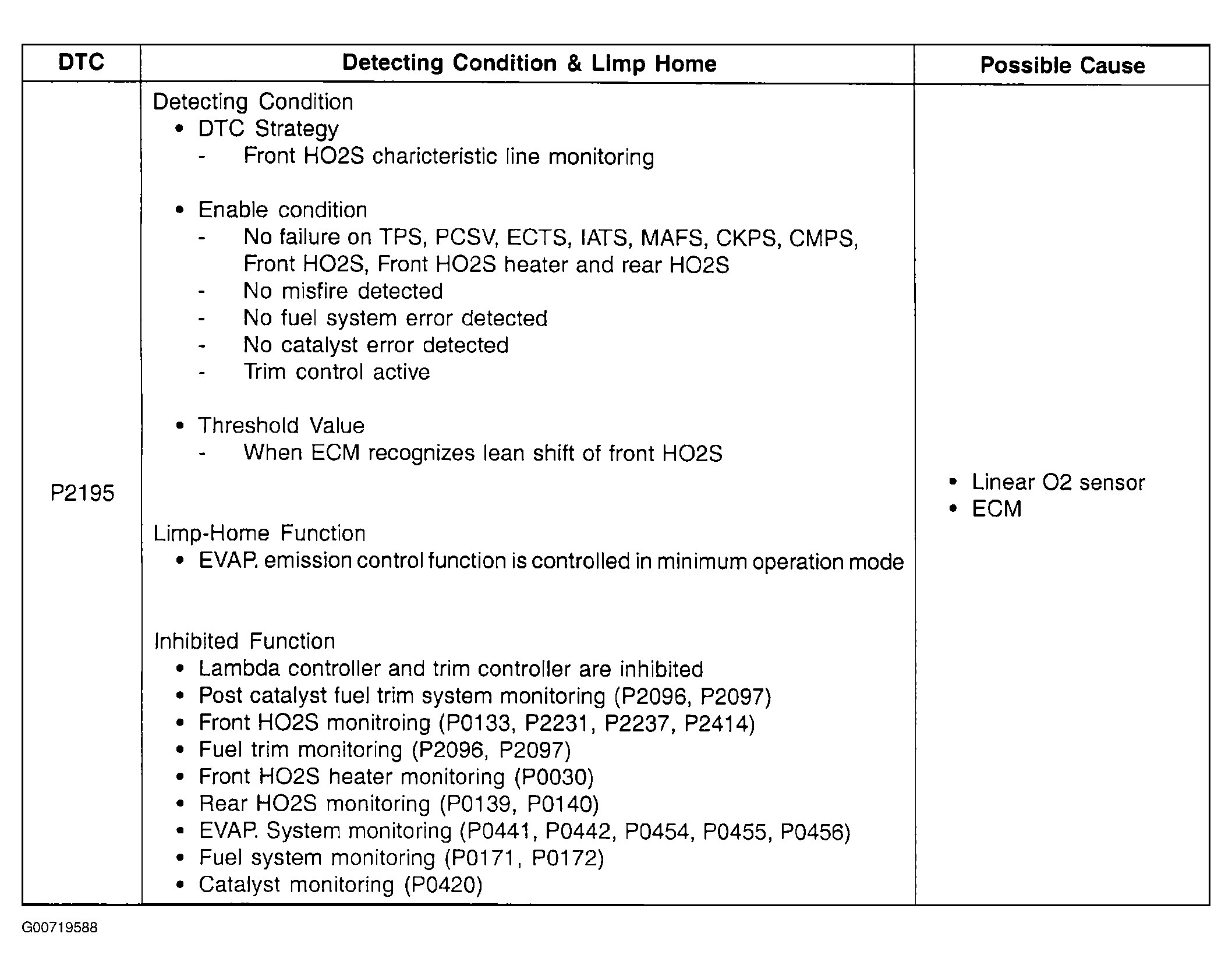

    Fig 1: DTC P2195 Condition Chart
    G00719588Courtesy of KIA MOTORS AMERICA, INC.
