Emission Control System - 2.0L: General: Troubleshooting

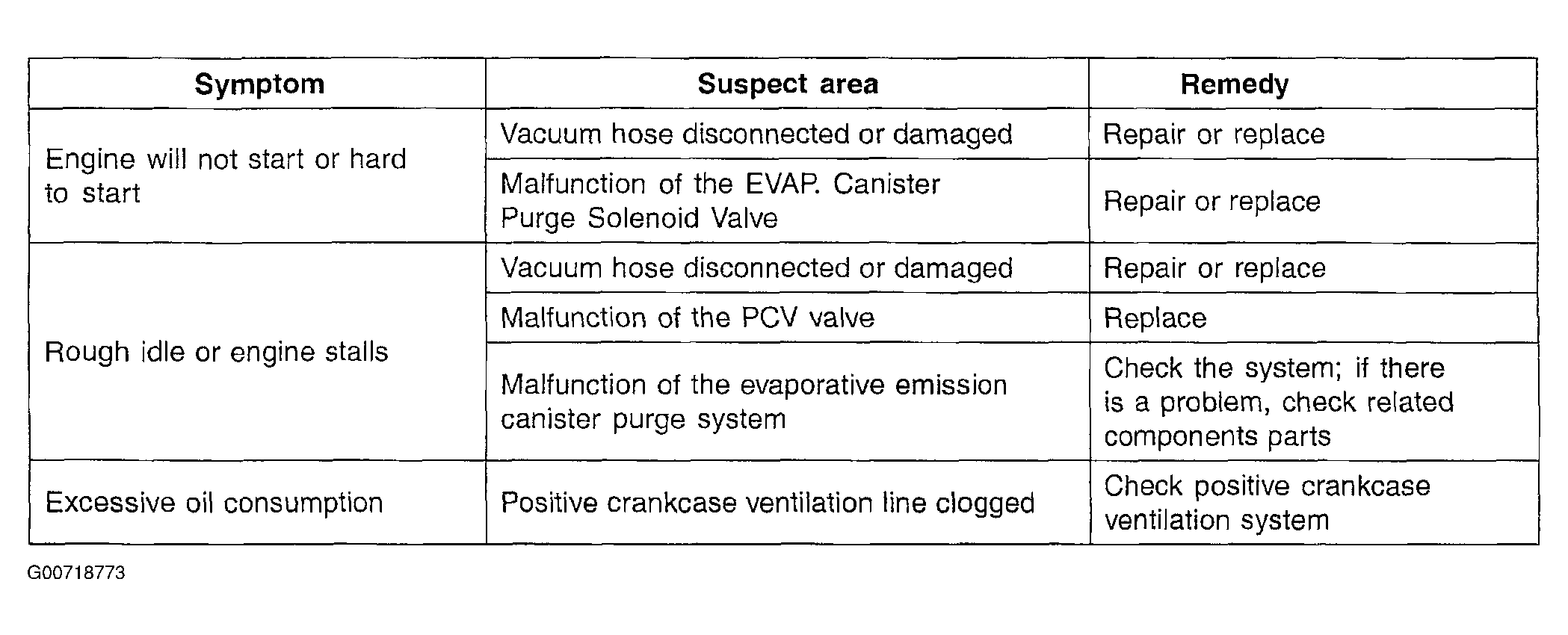

Fig 1: Troubleshooting
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
